Best 7/16 Din Male to N Female Adapter for Base Stations

In terms of base station communication, the 7/16 DIN Male to N Female adapter is one of the most reliable inter-series RF transition parts available today. This adapter is designed to connect high-power DIN male connectors to standard N female ports, with constant 50Ω impedance, VSWR ≤1.3, and a broad frequency range from DC to 18 GHz. Whether implementing 5G infrastructure, supporting existing telecom systems, or conducting laboratory RF experiments, the DIN to N adapter you choose directly affects signal quality, system uptime, and long-term total cost of ownership.

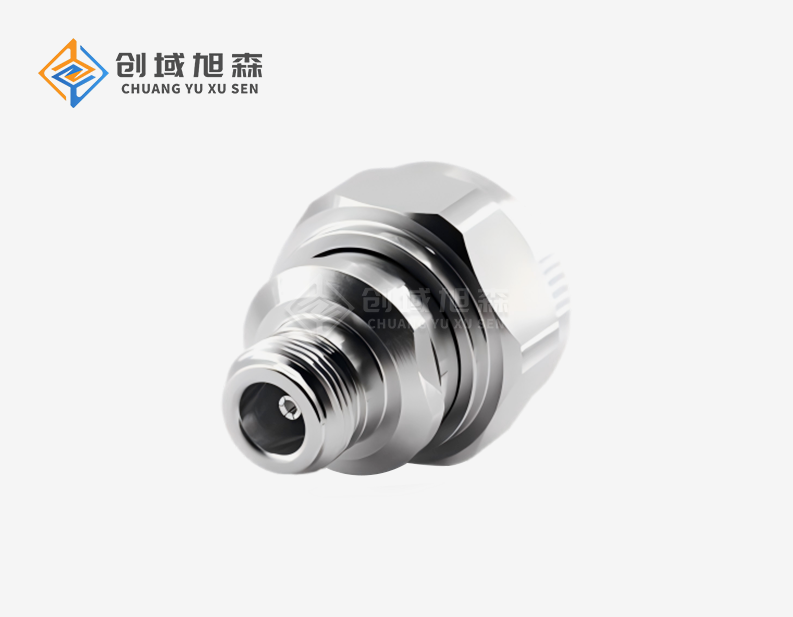

Understanding the 7/16 DIN Male to N Female Adapter

Interface Architecture and Material Construction

The male DIN has a 7/16-28UNEF thread structure. Its outer conductor has tiny threads which mate to DIN female equipment with regulated torque – usually 1.0 to 1.5 N·m – that provide both mechanical hardness and vibration resistance. The inner conductor is a robust gold-plated pin providing a secure connection to the socket. The female end has a 5/8"-24UNEF thread configuration. Its inner conductor is an elastic socket that fits exactly with N male pins. Proper alignment of the threads during engagement is crucial to avoid stripping.

Material selection is critical to long-term dependability. The inner conductor is beryllium copper with a gold coating. The contact resistance is ≤2 mΩ. The exterior conductor is brass or stainless steel and is surface-coated with gold or nickel plating for corrosion protection and EMI shielding; The PTFE insulating medium has a steady dielectric constant εr≈2.1 across the whole frequency spectrum, such that the signal reflections remain low.

Electrical and Mechanical Performance

This coaxial adapter is designed for 4G/5G base stations, satellite ground equipment, and precise RF measurement setups from DC to 18 GHz with a standing wave ratio of ≤1.3. The mechanical durability is ≥ 500 insertion cycles, and the vibration resistance is MIL-STD-202 compliant to guarantee dependable operation on mobility platforms like cars and airplanes.

Comparing Top 7/16 DIN Male to N Female Adapters for Base Stations

Not all RF adapters on the market will provide the same quality of signal integrity or field endurance. Procurement engineers considering DIN-to-N transition adapters must carefully review these key performance indicators. Below, we summarize the qualities of good quality 7/16 Din Male To N Female Adapter and poor quality adapters:

• Signal integrity: Premium adapters provide less than 0.3 dB insertion loss at 2 GHz and a VSWR of ≤1.3 over the whole rated band, minimizing disturbance to the signal chain in high-power base station situations.
• Mechanical Durability: Military-grade vibration compliance (MIL-STD-202) and ≥500 mating cycles are important in field deployments where connections are often reconnected for maintenance or system integration.
• Weather resistance: Stainless steel outer conductors with nickel or gold coating withstand oxidation in coastal or industrial conditions. Dust caps on both ends greatly increase service life.
• Impedance continuity: PTFE-insulated transitions maintain a 50Ω characteristic impedance throughout the body of the adapter, avoiding reflection spots that decrease the wideband performance.

Together, these variables decide if an adapter survives performance throughout a five- to 10 year deployment lifecycle. Cheaper alternatives, such as reducing plating thickness or PTFE purity, usually fail within 18 months in outdoor base station environments, creating unforeseen maintenance expenses significantly greater than the initial savings. The other point to make is with regard

to the orientation. A 7/16 DIN male-to-N female adapter is used to connect a DIN male cable or module output to an N female port on an antenna or instrument. The N Male to 7/16 DIN Female arrangement is the opposite topology. One typical mistake in RF system integration procurement is to get the gender orientation incorrect.

How to Choose the Best 7/16 DIN Male to N Female Adapter for Your Base Station

The correct adapter relies on your particular network design. For 5G NR mid-band installations running below 6 GHz, a DC-18 GHz certified DIN-to-N adapter with VSWR ≤1.3 easily covers the needed spectrum with enough buffer. If you are dealing with satellite ground stations or microwave backhaul lines over 10 GHz, you will want to verify that the insertion loss is within specification at these higher frequencies.

IP-rated or weatherproofed designs, stainless steel housings, and dual-seal dust closures are required for outside installations. Brass exterior conductors with conventional gold plating are fine for indoor lab or OEM integration settings, but you still need constant impedance matching for accurate measurements.

Large-volume OEMs and ODMs may also want to assess a supplier’s ability to provide unique configurations such as non-standard thread lengths or different plating finishes to improve procurement flexibility. For example, Chuangyu has in-house R&D and precise production capability to assist the creation of unique non-standard RF connectors.

Installation and Maintenance of 7/16 DIN Male to N Female Adapters

The majority of connection problems are from improper installation. Carefully align the threads before joining — 5 to 8 twists on both the DIN male and N female ends. Torque within spec: 1.0-1.5 N·m on DIN male end, 0.8-1.2 N·m on N female end. Do not exceed the rated torque, or the threads will be stripped, or the inner conductor will be deformed. Using a 7/16 Din Male To N Female Adapter with proper installation procedures helps maintain reliable signal transmission and connection performance.

For routine maintenance, wipe both conductor surfaces with an alcohol-moistened cotton swab every 3 to 6 months or after exposure to severe conditions. Let it dry completely before rejoining. For essential installations, ensure insertion loss is less than 0.5 dB and VSWR is less than 1.5 using a network analyzer every 6 to 12 months. If any of those metrics slip over the threshold, replacement is the sensible solution.

Keep the unused adapters with dust covers attached in a place that is at -20°C to +60°C, humidity of ≤60%, and not in contact with corrosive gases such as hydrogen sulfide or chlorine.

Procurement & Supply Chain Insights: Where and How to Buy

You are not going to get a good 7/16 DIN to N female adapter source via catalog price shopping. They are proven producers with established quality control systems, verifiable material certificates, and proven production capacity, and pose much lower supply chain risk than spot-market wholesalers.

Key sourcing factors include manufacturing lead times, minimum order quantities, capacity to configure to bespoke specifications, and response to technical questions. Chuangyu has a contemporary 1,000 m² manufacturing facility in Xi’an, with specialized coaxial connection production lines and an annual output of 500,000 RF components. Order response periods are almost 20% quicker than the industry average, which is very important when project schedules are urgent.

Torque testing and VSWR verification are often requested by experienced hardware procurement managers before placing volume orders for bulk purchase, typically in the form of sample units. Suppliers who won’t provide you with pre-qualification samples need to be scrutinized even more.

Conclusion

The 7/16 DIN Male to N Female adapter is a precision part that directly impacts the dependability of the base station, the accuracy of measurements, and the performance of the network over the long run. The proper adapter is not determined by the unit price, but by the evaluation of material quality, impedance uniformity, durability certificates, and supplier capabilities. A well-specified DIN-to-N coaxial adapter with a DC-18 GHz operating range, MIL-STD-202 vibration compliance, and beryllium copper gold-plated contacts may provide years of dependable service across a variety of telecom, satellite, and industrial RF applications.

FAQ

Are 7/16 DIN and N connectors interchangeable without an adapter?

No. The 7/16 DIN and Type N connector series use different thread dimensions, inner conductor geometries, and impedance transition designs. A precision adapter is required to achieve both mechanical compatibility and reliable 50Ω impedance continuity between the two interfaces.

What causes signal loss in a DIN-to-N adapter?

Signal degradation typically results from oxidized contact surfaces, improper torque application causing incomplete mating, impedance discontinuities from low-grade PTFE, or physical damage to the inner conductor. Regular cleaning and torque compliance largely prevent these issues.

How do I verify adapter performance after installation?

Connect a calibrated vector network analyzer to measure insertion loss and VSWR across the operating band. Insertion loss should remain below 0.3 dB at 2 GHz, and VSWR should stay at or below 1.3. Values beyond 0.5 dB insertion loss or VSWR above 1.5 indicate a compromised adapter.

Can this adapter handle high-power RF applications?

Yes. Quality DIN male to N female adapters typically support a rated power of> 50 W at 2 GHz. Always verify the adapter's rated power against your system's output level, particularly in high-power amplifier chains at base stations.
