How to choose a reliable standard stroke test probe for circuit testing?

Selecting the right standard stroke test probe requires evaluating material quality, electrical specifications, mechanical design, and supplier reliability. The ideal probe combines beryllium copper construction with gold plating, offers consistent contact force between 1-3N, maintains resistance below 15mOhm, and provides extended service life exceeding 300,000 cycles. Consider your specific testing requirements, including temperature range, current capacity, and compatibility with existing test fixtures to ensure optimal performance in ICT and FCT applications.

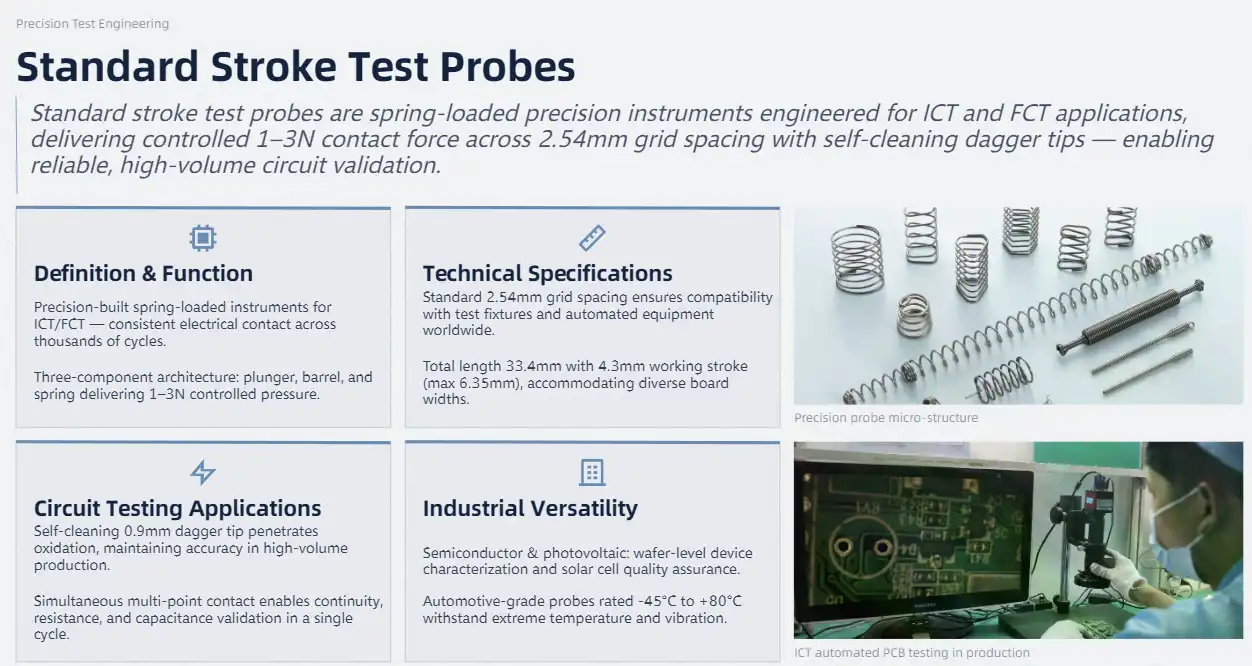

Understanding Standard Stroke Test Probes: Definition, Function & Applications

For In-Circuit Test (ICT) and Functional Circuit Test (FCT) applications, standard stroke test probes are precisely built testing instruments. These probes work with a controlled mechanical stroke mechanism that makes sure they make good electrical contact with test points on PCBs and keep working the same way after thousands of testing rounds.

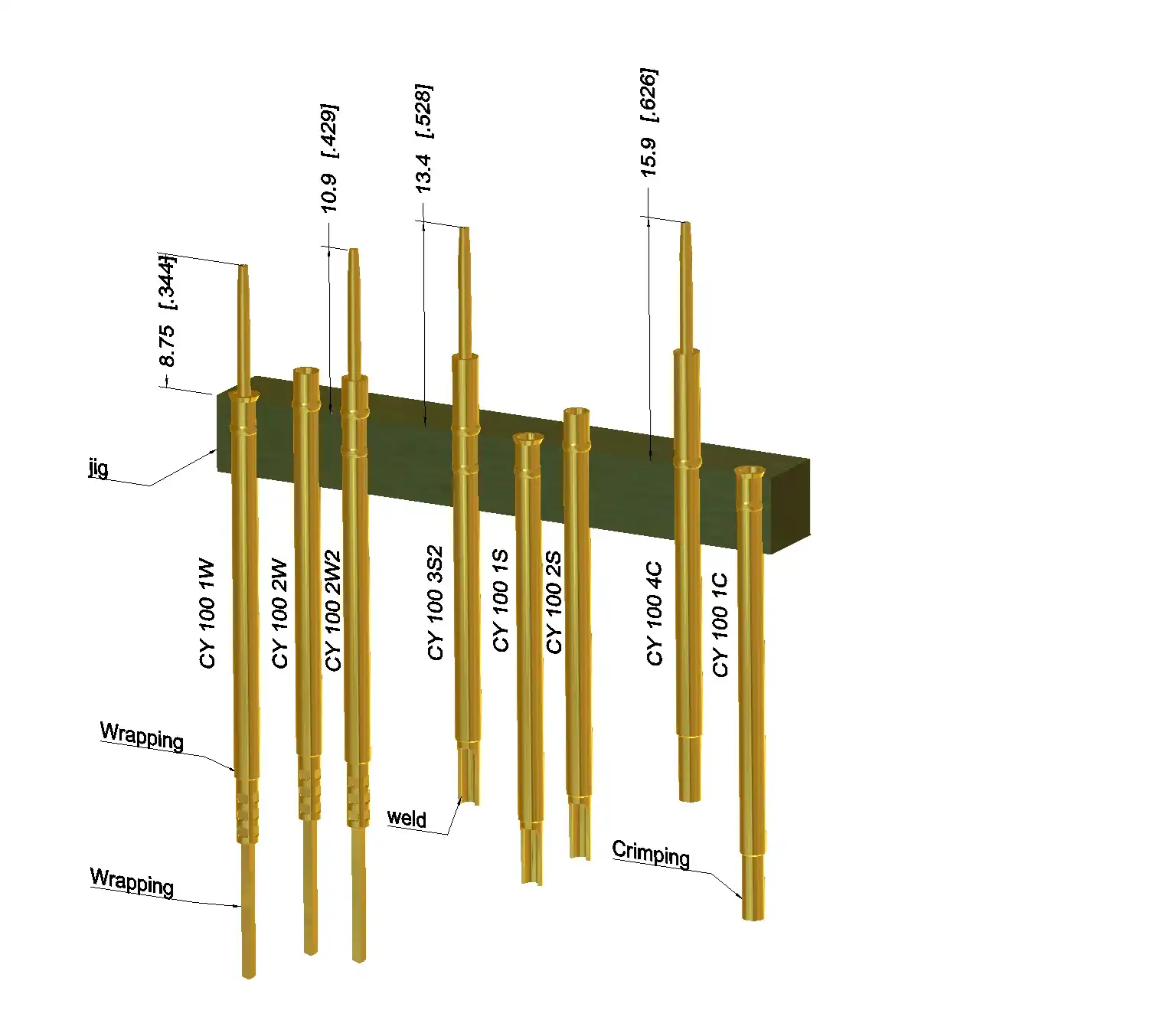

Operating Principles and Technical Specifications

These testing tools are based on a spring-loaded device that gives controlled contact force when it comes into contact with circuit test points. The probe is made up of three main parts: a precisely machined plunger, a barrel housing, and an interior spring system. When the button is pressed, the spring contracts to provide steady contact pressure, usually between 1N and 3N. This makes sure that the electrical connections are stable without damaging any sensitive parts.

Modern probe designs use a standard grid spacing of 2.54 mm, which means they can be used with most test fixtures and automatic testing equipment that is already on the market. The total length is usually 33.4 mm, and the best working stroke is 4.3 mm. The longest stroke is 6.35 mm. With these specs, the probe can work with different board widths and component heights and still make sure the contacts are perfectly lined up.

Essential Role in Circuit Testing Applications

To test circuit boards accurately and consistently, you need special tools that can only do that. Test probes are the most important part of the connection between automated test tools and the circuits being tested. During ICT processes, these instruments touch several test points at the same time. This lets them do full electrical measurements, such as checking for continuity, resistance, and capacitance.

The self-cleaning dagger tip design, which has a width of about 0.9 mm, makes sure that the tip makes good contact with test points and gets rid of oxidation and contamination that could affect the accuracy of the measurement. This function is especially useful in high-volume production settings where reliable probe performance has a direct effect on testing speed and reliability.

Versatility Across Industrial Applications

These testing methods are used in factories across many industries to make sure the quality of their products and make sure they work. Probes are used to make accurate readings on wafer-level devices and packaged integrated circuits during semiconductor testing. Photovoltaic makers use specific versions to test solar cells and check the quality of modules. For life-critical uses, medical device makers need probes that meet very high standards for reliability.

Extreme temperature and vibration resistance are two problems that are unique to testing gadgets in cars. When test probes are made for car use, they are made with better materials and have mechanical designs that keep working even in harsh environments. The wide temperature range, from -45°C to +80°C, makes sure that it will work reliably in all kinds of vehicle testing situations.

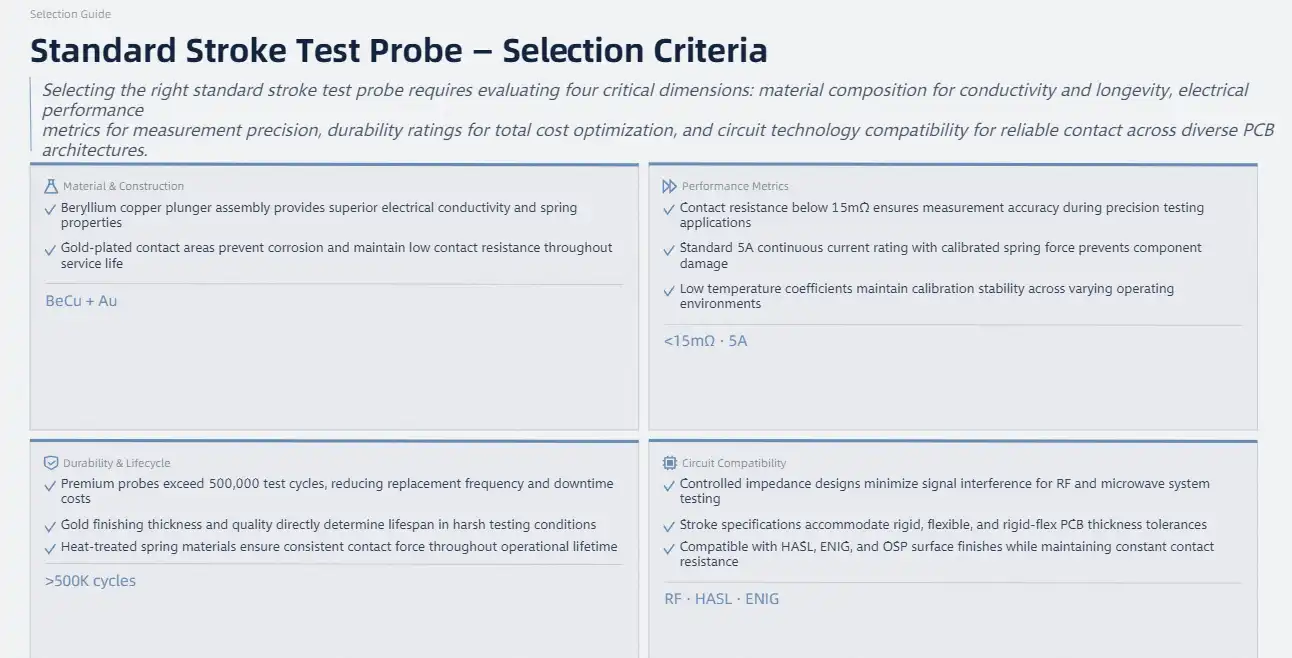

Key Criteria to Evaluate When Choosing a Standard Stroke Test Probe

The choice of material is what determines how well and how long a standard stroke test probe works. The plunger assembly of high-end probes is made of beryllium copper, which is a great conductor of electricity and has good spring properties. All contact areas are gold-plated to stop corrosion and keep the low contact resistance of the probe for as long as it is used.

Performance Metrics and Electrical Specifications

The most important electrical parameter for testing precision is the contact resistance. Good tools keep resistance levels below 15mOhm, which makes sure that measurements are accurate during precise testing. The amount of current that a probe can carry depends on the application. Standard probes are usually rated for 5A of constant current flow.

The mechanical design of the probe has a direct effect on how reliable the touch is and how consistent the measurements are. Calibration of the spring force makes sure that the test points are properly engaged and that no damage is done to the components. Different testing situations, such as checking delicate surface-mount parts or strong through-hole connections, require different spring force ranges.

Specifications for temperature coefficients show how probe properties change over a range of working temperatures. Low temperature factors make measurements stable in places where the temperature changes, which is important for keeping the accuracy of calibration over long periods of time.

Durability Considerations for Long-Term Use

The total cost of ownership for high-volume testing processes is affected by service life expectations in a big way. Premium standard stroke test probes can be used for more than 500,000 test rounds, which means they don't need to be replaced as often and don't cost as much when they're down.

How resistant something is to wear depends a lot on the material used and how the surface is treated. Compared to other finishes, gold-plated contact areas are better at resisting oxidation and mechanical wear. How long a probe lasts in tough testing conditions is directly related to how thick and good the gold finishing is.

When probes are used in automated testing settings where they are constantly cycling, mechanical fatigue resistance is very important. The probe's ability to keep the same contact force over its lifetime depends on the quality of the spring material and how it is heated.

Compatibility with Circuit Technologies

High-frequency circuit testing has its own problems that need special tool designs to solve them. Signal integrity is very important when testing RF and microwave systems because probe parasitic properties can have a big effect on how accurate measurements are. When measuring at high frequencies, controlled impedance designs keep signal interference to a minimum.

Different types of PCB technology, like rigid, flexible, and rigid-flex constructions, need different probe specs. Because board thickness tolerances and component height variations can happen, probe stroke standards need to be carefully thought through to make sure that all test points have reliable contact.

Both electrical and mechanical performance are affected by how compatible the surface finish is. Probes need to be able to work with different PCB surface finishes, like HASL, ENIG, and OSP, while still having a constant contact resistance and keeping the surface from getting damaged during testing.

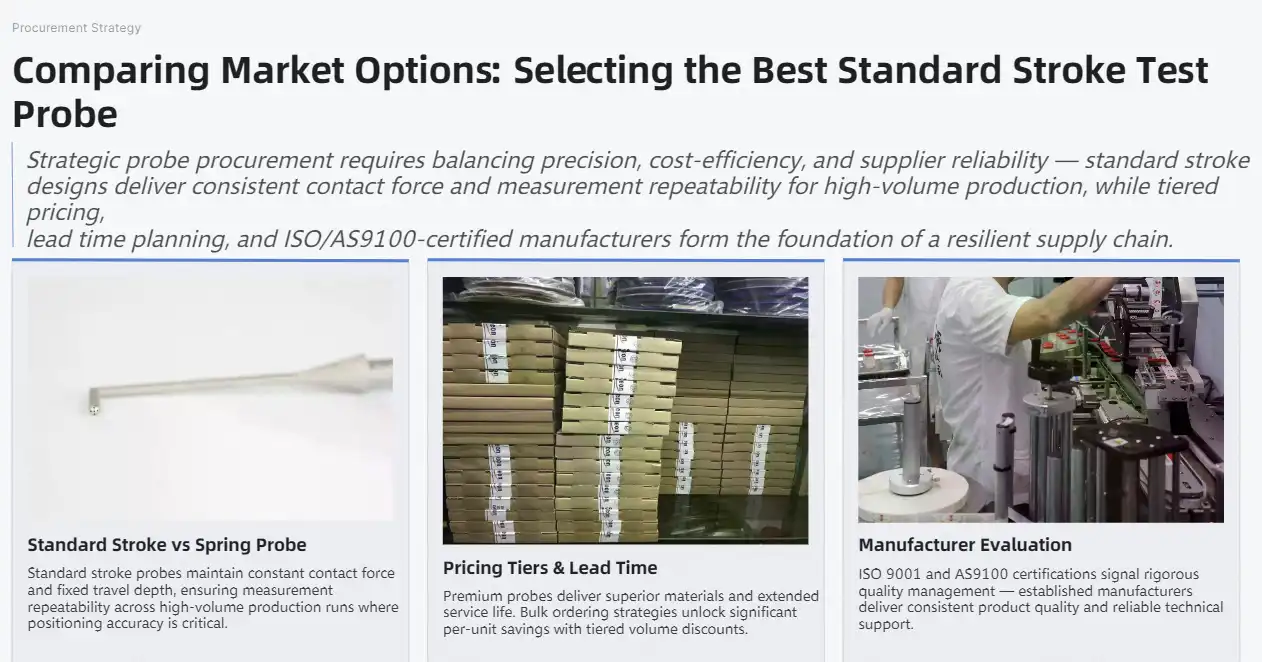

Comparing Market Options: How to Select the Best Standard Stroke Test Probe

There are many types of probes on the market for testing equipment, and each one is made for a particular job and set of performance needs. Knowing the differences between standard stroke test probes and other designs helps procurement teams make smart choices based on the tests they need to do.

Standard Stroke Versus Spring Probe Comparison

Standard stroke probes have a controlled travel distance and a constant contact force, which makes them perfect for tasks that need accurate mechanical positioning. The set stroke design makes sure that the probe engagement depth is always the same, which is important for keeping measurement accuracy high across production runs.

Spring probes have different compression properties that let them work with boards of different thicknesses, but they might lose stability in the contact force. When choosing between these tools for different testing tasks, the trade-off between flexibility and accuracy is very important.

Large-volume uses that need to be cost-effective often choose standard stroke designs because they are easier to make and use less material. But the total cost study needs to look at things like how long the probe lasts, how often it needs to be replaced, and how fast it can test.

Pricing Tiers and Lead Time Considerations

Prices on the market usually represent the quality of the materials, the accuracy of the manufacturing, and the commitments to buy a certain amount. Premium probes, which cost more per unit, usually work better and last longer, which makes the original investment worth it because the total cost of ownership is lower.

Strategies for ordering in bulk can have a big effect on unit costs, especially in manufacturing businesses that make a lot of things. Suppliers often offer bulk discounts that make projects more cost-effective and make sure there are enough items in stock to meet production schedules.

Planning for lead times becomes very important for keeping output going. When compared to customized options, standard catalog items usually have shorter delivery times. However, the performance benefits of custom designs may make longer wait times worth it for certain uses.

Manufacturer Reputation and Quality Standards

You can be more sure of consistent product quality and reliable technical help when you buy from well-known manufacturers with a track record in precision electronics. Companies that have ISO 9001 and AS9100 certifications show that they follow strict quality control systems.

Supply chain stability, quality control standards, and easy access to technical help are all things that manufacturers need to think about when choosing a location. Applications that need to follow strict rules can get better help from suppliers who have full quality paperwork and traceability systems.

A supplier's ability to come up with new ideas and their ongoing work on product development show how committed they are to making probe technology better. Companies that spend money on research and development usually come up with better long-term product support and more advanced solutions.

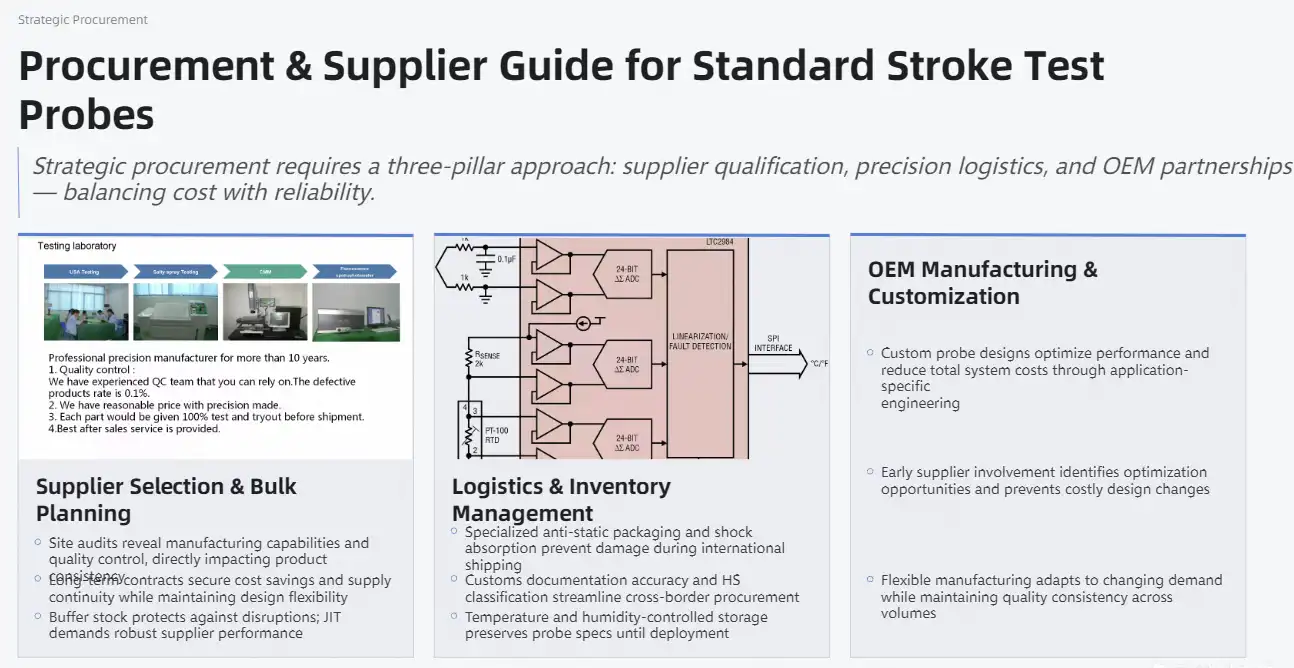

Procurement and Supplier Guide for Standard Stroke Test Probes

A good procurement strategy finds the right mix between lowering costs and meeting performance standards. It also makes sure that there are reliable relationships with suppliers that support long-term production goals. Modern testing standards are very complicated, so suppliers need to be carefully evaluated and strategic partnerships need to be built for standard stroke test probes.

Selecting Reliable Suppliers and Planning Bulk Purchases

As part of the supplier qualification process, technical skills, quality systems, and financial security should all be looked at. Site checks are a great way to learn about how products are made and how quality control is done, which directly affects how consistent and reliable the products are.

Carrying costs and stockout risks must be balanced in inventory management methods. Just-in-time methods reduce the need to keep inventory on hand, but they need solid supplier performance and quick logistics support. Having enough buffer stock protects you from supply problems, but it also means you need more working cash.

Specifications for quality, delivery dates, and performance guarantees should all be talked about during contract talks. Long-term contracts often save money and make sure that supplies don't run out for important business uses. But as technology changes, design improvements may need to be able to be made with more freedom.

Logistics and Inventory Management

When shipping something, you need to think about how to package it, how to handle it, and how to coordinate arrival times. Precision tools need to be carefully packed to keep them from getting damaged during shipping, especially when they are going to be sent internationally and will be handled more than once.

For foreign sourcing, customs paperwork and following the rules become important factors. When classification and paperwork are done correctly, delays and extra costs that come with customs handling are avoided. Knowing the rules about importing helps with planning operations and keeping costs down.

For warehouse storage, there are rules about the surroundings and how to handle things in a way that keeps the product's quality until it is used. Specifications for temperature and humidity keep things from going bad while they're being stored, and the right way to handle them keeps them from breaking.

OEM Manufacturing Benefits and Customization Services

Original equipment maker relationships give you access to solutions that are specifically designed to meet the needs of your application. Custom probe designs can improve performance for specific testing situations and may even lower the total cost of the system by making it more efficient.

Suppliers can add their technical knowledge during the development stages of a product when design collaboration tools are available. Getting suppliers involved early on can help find ways to improve things and keep expensive design changes from having to be made later in the development process.

Manufacturing scalability makes sure that sellers can keep up with rising production volumes without lowering quality or delivery times. Manufacturing processes that are flexible can adapt to changing demand trends while keeping costs low at all volume levels.

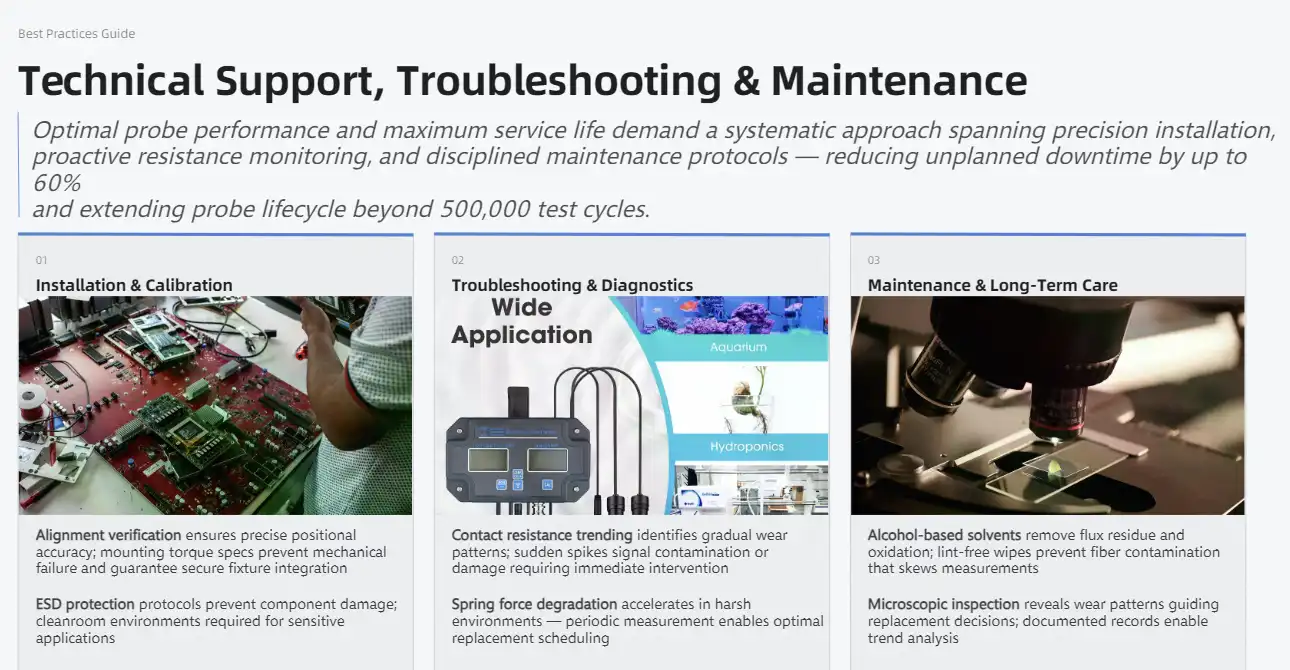

Technical Support, Troubleshooting, and Maintenance Best Practices

For standard stroke test probes to work at their best and last as long as possible, they need to be properly handled and maintained. Preventive repair practices greatly increase the useful lives of machines while keeping their accuracy and dependability.

Installation and Calibration Protocols

Following the right steps for placement guarantees that the probe will work at its best from the start. Alignment checks make sure that the parts are in the right place in relation to the test points, and mechanical fit checks make sure that they will work with current test fixtures. Specifications for mounting hardware torque keep it from breaking, and make sure that mechanical connections are safe.

During fitting, environmental factors like keeping the temperature stable and avoiding contamination are taken into account. For sensitive uses, you may need to use a clean room. ESD protection keeps probe parts from getting damaged while they are being handled and installed.

Troubleshooting Common Issues

Contact resistance tracking lets you know right away if a probe is losing its accuracy before it gets worse. Resistance trends analysis finds patterns of slow wear that let you plan for replacements. Sudden rises in resistance are often a sign of contamination or mechanical damage that needs to be fixed right away.

The spring force decreases slowly over its l life, but it can happen faster in bad circumstances. Force measurement equipment lets you figure out how well a spring is working and when to change it most efficiently.

Daily Maintenance and Long-Term Care

Using the right solvents during cleaning processes gets rid of contamination that hurts the performance of electrical parts. Cleaners with alcohol can get rid of flux leftovers and oxidation products without hurting probe materials. Lint-free materials keep fibers from getting dirty, which could change measurements later on.

Scheduled inspections help find wear patterns and efficiency loss early on. A microscopic look at the surface shows conditions and wear patterns that help with replacement choices. Keeping records of inspection results helps with identifying trends and figuring out the best time for repair.

Conclusion

To choose effective standard stroke test probes, you need to carefully look at the technical specs, the supplier's abilities, and the total cost. The quality of the materials, how well they conduct electricity, and the way they are designed directly affect how well they work and how accurately they are tested. Procurement strategies that work well balance short-term costs with long-term benefits by carefully examining suppliers and building smart partnerships. Proper maintenance and access to technical help make sure that probes work at their best for as long as they are used, which maximizes the return on investment for important testing tasks.

FAQ

What makes a standard stroke test probe reliable for circuit testing?

Reliable probes are made of high-quality materials, like gold-plated beryllium copper, keep the contact force constant, and have an electrical resistance below 15mOhm. A service life of more than 300,000 cycles and stable performance across a wide range of temperatures make sure that it can be used reliably in harsh testing settings.

How do I determine the right specifications for my testing application?

Think about the features of your PCB, the types of parts you need, and the needs of your testing environment. Look at things like changes in board thickness, test point spacing, present needs, and temperature conditions. Match the probe's specs to these parameters and make sure they work with current test fixtures.

What maintenance practices extend probe service life?

Cleaning it regularly with alcohol-based solvents gets rid of dirt and grime, and storing it properly in controlled settings keeps it from breaking down. Keep an eye on changes in contact resistance and use magnification to look at probe surfaces for wear patterns. If the resistance goes over the limits or if obvious wear makes them less effective, you should replace the probes.

Ready to Source Premium Standard Stroke Test Probe Solutions from a Trusted Manufacturer?

Chuangyu makes standard stroke test probes with great care so they can meet the strict needs of current circuit testing applications. Because we've been in the manufacturing business for almost twenty years and can make a wide range of products, you can be sure that they will work well in your important testing processes. Our 1,000-square-meter building is in the Xi'an Chang'an Innovation Technology Industrial Park. It has both advanced production lines and specialized research and development labs to support both standard and custom probe solutions.

Our technical team offers full help from creating the initial specifications to improving long-term maintenance, making sure that your testing equipment is always working at its best and giving you the most value. Get in touch with our experts at chuangyuwz01@cymicrowave.com to talk about your unique needs and find out how our standard stroke test probe supplier services can improve your testing processes while lowering your total cost of ownership.
