How Does a MIL-DTL-38999 Series 3 Multi-Start Thread Circular Connector Work?

A MIL-DTL-38999 Series 3 Multi-Start Thread Circular Connector works by engaging a triple-lead threaded coupling mechanism that locks the plug and receptacle together in roughly one-third of a turn. Combined with a spring-loaded detent pawl, this self-locking design resists accidental disconnection under continuous vibration or shock. The connector's gold-plated copper alloy contacts, fluorosilicone seals, and conductive spring shielding work together to maintain signal integrity, power delivery, and environmental protection simultaneously—making it one of the most widely specified circular connectors in aerospace, defense, and industrial automation.

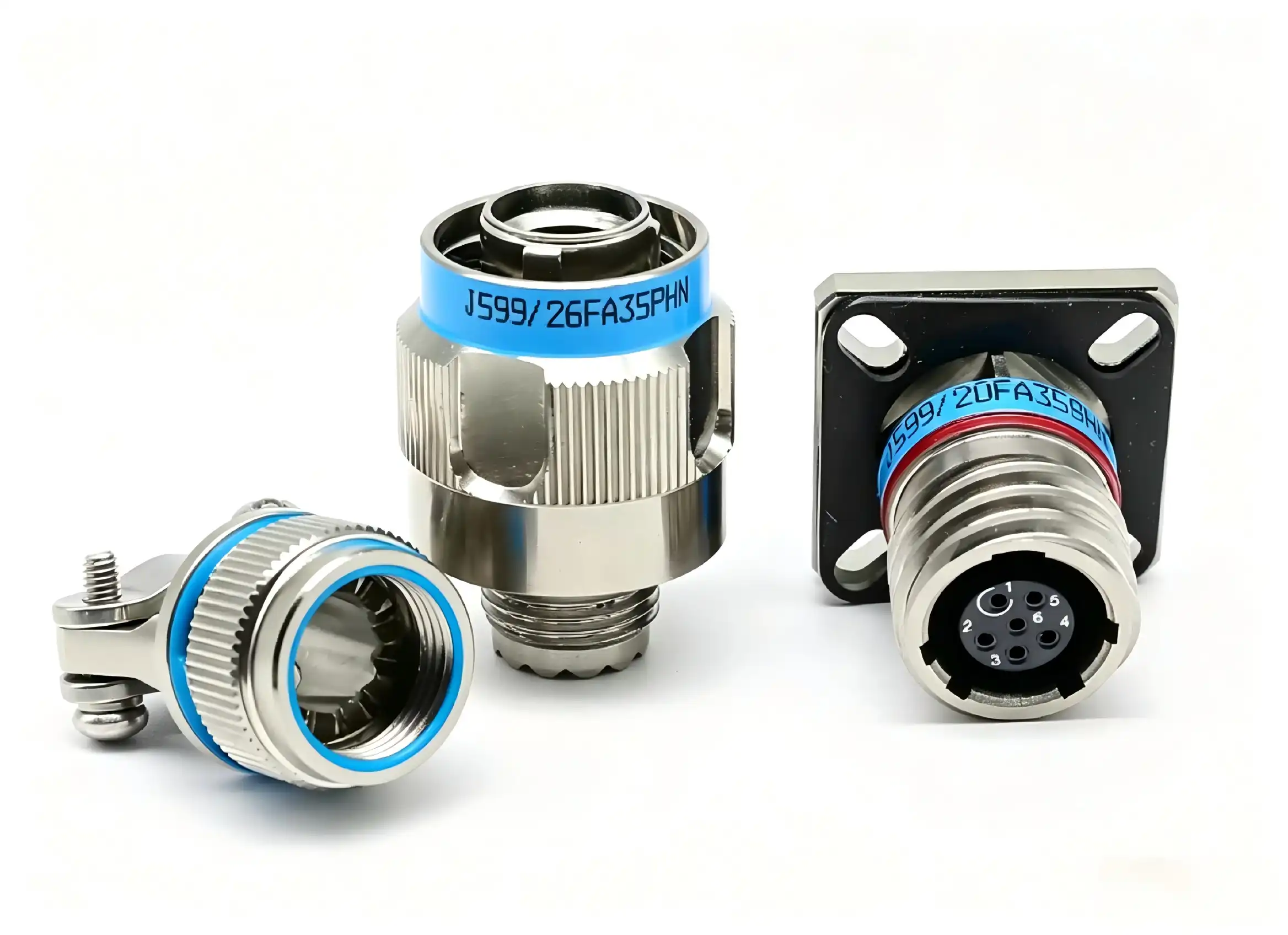

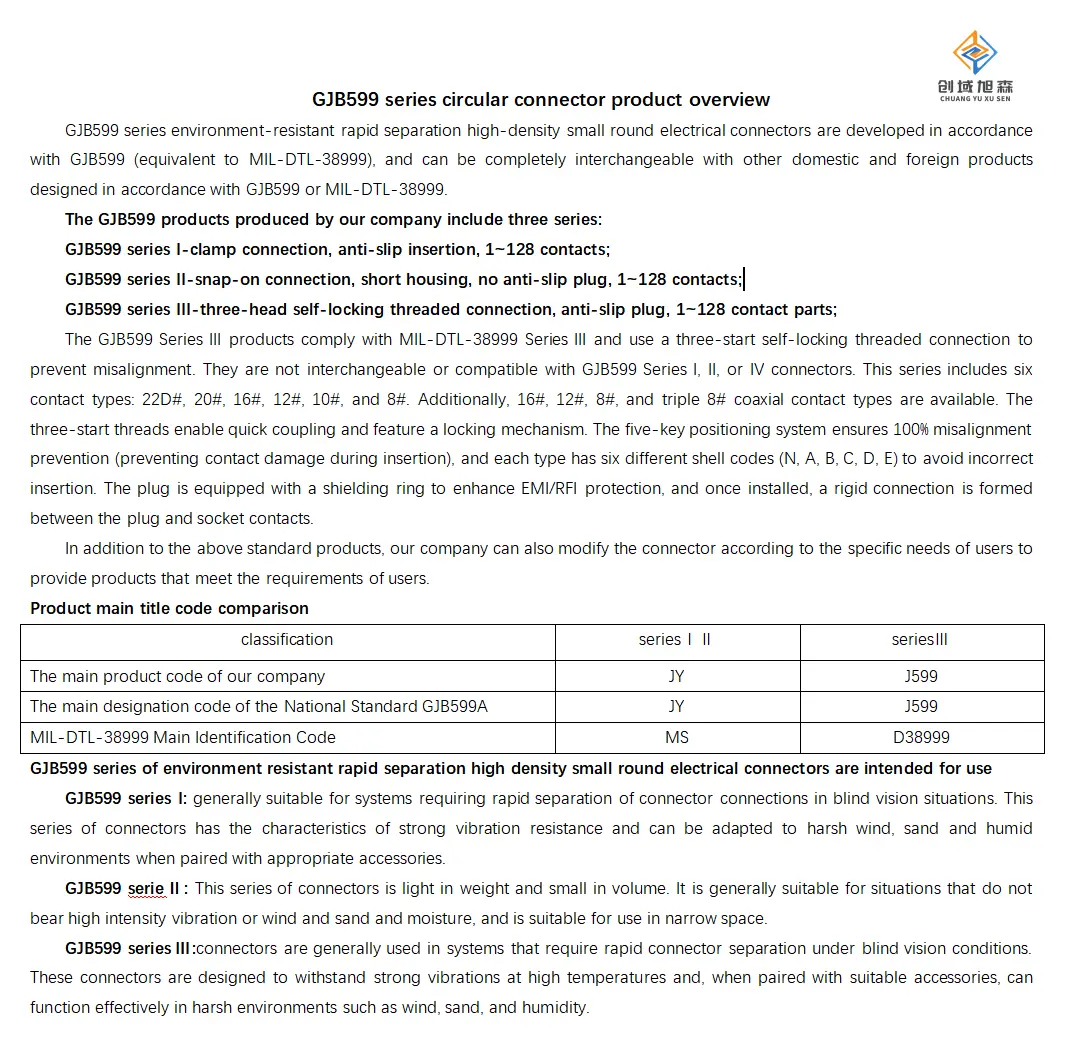

Introduction to MIL-DTL-38999 Series 3 Multi-Start Thread Circular Connectors

The MIL-DTL-38999 Series 3 Multi-Start Thread Circular connector is always at the top of the list when engineers and procurement managers are looking for a circular connection that strikes a good mix between speed, security, and durability. According to the MIL-DTL-38999 military performance standard, "Series 3" connectors have a triple-lead, self-locking threaded coupling, which works better than the bayonet coupling of Series 1 and the single-start thread of older designs.

The idea of a multi-start thread cuts mating time by a huge amount. The connector engages fully in about 120° of rotation instead of several full turns because the three thread starts are spread out evenly around the barrel. This is very important on a production line or during field repair, where technicians may have to work in tight areas or while wearing gloves.

Why Series 3 Is the Preferred Choice in Demanding Applications

Adoption data from the industry backs up the image. The IPC cites IHS Markit connection market data as saying that MIL-DTL-38999 Series III connectors make up the majority of new military connector designs. This is because they can connect and seal better than older MIL-C-5015 circular connectors, which means they can be used more quickly. [1]

Understanding the Design and Operation of Series 3 Multi-Start Thread Connectors

The tech behind this family of MIL-DTL-38999 Series 3 Multi-Start Thread Circular Connectors is worth looking into more closely. Three interconnected subsystems—mechanical coupling, electrical contact, and environmental sealing—work together to meet the requirements for reliability.

Mechanical Structure and Coupling Mechanics

With its self-locking triple-lead thread and detent pawl, the mated connection stays in place even in 300G shock-resistant settings. You can choose an aluminium alloy housing, a stainless steel housing, or an advanced composite housing. Composite-shell versions can be plugged in and out up to 1,500 times, which is a lot longer than the usual 500 times for aluminium housings. A Scoop-Proof keying system makes sure that pins and holes don't touch during blind-mate insertions, which keeps damage from happening when they aren't lined up correctly.

Electrical Contact Performance

The contacts are made of a copper alloy that has been plated with gold for at least 50 microinches. They can be crimped, soldered, or used to connect PCB tails. Standard configurations can hold up to 128 contacts, while high-density designs can hold up to 187. The current ratings are high: 12 AWG contacts can handle up to 46 A continuously, and 12 AWG contacts can handle up to 23 A continuously. These ratings meet the needs for both data and power distribution in a single shell.

Sealing and EMI Shielding

Fluorosilicone O-rings and back grommets work together to make the interface waterproof to IP67 standards, keeping it safe during short immersions. Conductive spring fingers between mated housings create electromagnetic shielding that is more than 90 dB effective at 100 MHz and still more than 65 dB effective at 10 GHz. This is an important shielding profile for platforms that work near high-power RF emitters. [2]

The MIL-DTL-38999 Series 3 Multi-Start Thread Circular Connector is not just a bunch of separate parts, but a fully combined answer thanks to these three subsystems.

Comparing MIL-DTL-38999 Series 3 with Other Connector Series and Types

Knowing where Series 3 fits in the bigger picture of connectors helps procurement managers wisely spend their money.

• Series 1 (Bayonet Coupling): Offers rapid quarter-turn mating but lacks the positive self-locking detent of Series 3. It is adequate for moderate-vibration environments but can experience unintentional decoupling under sustained dynamic loading—a limitation documented in NASA connector qualification reports. [3]
• Series 2 (Breech-Lock Coupling): Provides a compact profile favored in space-constrained enclosures, yet the non-self-locking mechanism demands secondary retention features in high-vibration installations.
• Single-Start Thread Connectors (e.g., MIL-C-5015): Require multiple rotations to mate fully. Engagement time is longer, and the thread is more susceptible to cross-threading under misaligned blind-mate conditions. MIL-C-5015 also lacks the structured Scoop-Proof feature standard in Series 3.

Because of this, the MIL-DTL-38999 Series 3 Multi-Start Thread Circular Connector performs better than Series 1 and Series 2 in situations where there is a lot of shaking, EMI, and thick contact counts. The trade-off is a slightly higher unit cost, which is usually balanced out by less work needed for installation and longer periods between repair visits.

Applications, Durability, and Performance Characteristics

The connector's claims in three main areas are backed up by facts from real-world deployments.

Aerospace platforms, like aeroplane electronics, satellite communication units, and UAV flight control assemblies, need to be able to work in temperatures ranging from -65 °C to +200 °C and handle 300G shock pulses. The Series 3 connector meets both standards without any downsizing, as shown in qualification test reports that are made public under MIL-DTL-38999 revision D [4].

Chemical exposure problems can happen with military equipment on land and at sea that can't be solved by designs that are only mechanical. Shipboard radar housings, missile guidance interfaces, and tactical radio terminals must be able to handle up to 2,000 hours of salt spray, contact with MIL-PRF-5606 hydraulic fluid, and immersion in JP-8 aviation fuel. Shell coatings are chosen based on this: black zinc-nickel plating protects against salt spray for 500 hours, making it ideal for coastal installations; nickel-PTFE coatings keep their shape at 200 °C for long periods of time.

There are different kinds of stress in industrial and medical settings. High-end robotics articulation joints move the connection thousands of times a year; medical imaging systems need shielding that doesn't mess up sensitive gradient signals; and marine research tools have to deal with biofouling and hydrostatic pressure. In this case, the anti-vibration locking and high-density contact layouts (up to 187 positions) meet needs that general-purpose circular connectors just can't.

Usage and Installation Best Practices

If you place the connection correctly, it will last as long as it is supposed to. To fully contact the connection during thread coupling, turn it around one full turn; overtightening will remove the self-locking pawl. If you check the key's position before axial insertion in blind-mate situations, you can keep the contact from getting damaged even if you can't see the mating face. For panel-mount receptacles to sit flush with the mounting surface, they need a matched back shell for strain relief. This keeps tensile loads from reaching the contact terminations.

Maintenance and Inspection Schedule

The industry recommends that inspections happen every three months. Contact resistance should be 9 milliohms or less; numbers above this level mean that there is rust or mechanical wear. Thread surfaces that show stress or galling need to be replaced right away. Isopropyl alcohol on a lint-free swab can be used to clean the contacts properly, and a dry lint-free cloth can be used to clean the shell. Solvents that are acidic or chlorinated can damage fluorosilicone seals and are not allowed at all. Standard-shell connectors need to be re-qualified for electrical performance every 500 joining cycles. Composite-shell connectors can be used for up to 1,500 cycles before they need to be re-qualified.

Procurement Considerations for MIL-DTL-38999 Series 3 Connectors

Total acquisition cost is more than just the unit price because of a number of factors. Choosing the right shell material, contact density, coating specifications, and backshell design can all affect the cost in their own ways. If buyers only buy from authorised outlets, they are less likely to get fakes. This is a known issue in the military connector supply chain that was brought up in a 2022 DLA traceability report. [5]

It is legal and normal to customise things. OEM programs often ask for non-standard contact layouts, keyway placements that are unique to the program, or mixed power-and-signal layouts that fit inside the same shell. Lead times for standard catalogue items are usually two to six weeks. For custom configurations, they can be eight to fourteen weeks, depending on how long the tools need to be made. The buyer's audit trail is safe if they ask for a Certificate of Conformance (CoC) and traceability documentation at the time of order.

Conclusion

The MIL-DTL-38999 Series 3 Multi-Start Thread Circular Connector is the best at what it does because it has fast triple-lead mating, self-locking vibration resistance, IP67 closing, and EMI protection that is better than 65 dB at 10 GHz. Service life can go up to 1,500 rounds with composite-shell versions, and Scoop-Proof keying keeps high-density contact arrays safe during blind mating. This connector family has measurable performance advantages that justify its place in demanding procurement programs, whether it's for a UAV avionics bay, a shipborne radar console, or a surgical imaging system.

FAQ

1. How much faster does a multi-start thread connector mate compared to a single-start thread?

A single-start thread needs at least 360° of rotation to fully engage, while a triple-lead thread only needs about 120°. This difference cuts down on the time it takes to make each link by a large amount in high-cycle assembly settings.

2. Can Series 3 connectors survive underwater immersion?

Yes. The fluorosilicone O-ring and rear grommet work together to get IP67 certification. This means that the connector can be submerged in water for 30 minutes at a depth of 1 meter without getting wet. Extra potting is recommended for long-term underwater depths.

3. How do I verify that a Series 3 connector is not counterfeit?

Ask for a Certificate of Conformance, a manufacturer's lot tracking number, and markings that can be compared to the Defence Logistics Agency's original MIL-DTL-38999 qualified products list (QPL). [6]

4. What is the maximum contact count available?

Up to 128 connections can be used in standard high-density designs. Specialised high-density shells can fit up to 187 contacts inside the same outer diameter.

5. Which shell coating suits a high-temperature industrial oven environment?

Nickel-PTFE coating can work continuously at 200 °C and doesn't react chemically with oils that are often used in industrial heating equipment.
