How Does a 4.3-10 RF coaxial load Support Network Testing?

The 4.3-10 RF coaxial load is one of the most important components behind the dependability of network testing that is based on accurate, reliable, repeatable measurements. The 4.3-10 RF coaxial load is designed to absorb RF power while reflecting no signals back into sensitive equipment. This is crucial in maintaining reliable data gathering in labs, industrial lines, and live communication networks. This component is used to terminate idle ports from multi-port devices or provide fake loads for vector network analyzers, and it helps engineers preserve signal integrity during the testing process. In this post, we’ll talk about how a 4.3-10 RF coaxial load is designed and why its performance characteristics are important to network testing, as well as how careful treatment may assure long-term durability in difficult conditions.

What Makes a 4.3-10 RF Coaxial Load Reliable for Testing Applications?

Reliability in network testing starts with component quality, and a 4.3-10 RF coaxial load is engineered with materials and construction methods specifically chosen to withstand repeated use in precision environments. From its internal resistor elements to its outer housing, every part of the design contributes to consistent, dependable performance.

What Core Components Make Up a 4.3-10 RF Coaxial Load?

A 4.3-10 RF coaxial load is essentially 50Ω high-power resistor elements made of a tantalum nitride resistive layer and an aluminum nitride substrate, which can effectively absorb RF energy. It mates with 4.3-10 male or female connectors. Brass nickel-plated shell and phosphor bronze gold-plated inner conductor for reliable conductivity and durability. The enclosure is constructed of black anodized aluminum. The electrical isolation is via an integral PTFE insulating medium. Some premium models of the 4.3-10 RF coaxial load are IP68-rated for water resistance, which makes them ideal for demanding outdoor test situations where exposure to moisture and dust is a constant issue.

How Does Housing Material Affect a 4.3-10 RF Coaxial Load's Performance?

The black anodized aluminum housing of a 4.3-10 RF coaxial load is more than a protective shell. It’s a part of the mechanical strength and corrosion resistance of the component. The anodizing process increases the resistance to repetitive handling, weather exposure, and temperature changes without damaging the housing. This is especially essential since a 4.3-10 RF coaxial load is typically used in outdoor communications infrastructure or industrial test installations where the physical ruggedness directly affects the measurement accuracy over time. A good construction also helps to disperse the heat properly, which is important for continuous power absorption in long testing sessions.

Why Does Connector Quality Matter in a 4.3-10 RF Coaxial Load?

The quality of the connector also greatly affects the reliability of a 4.3-10 RF coaxial load. The phosphor bronze gold-plated inner conductor and nickel-plated brass shell work together to reduce signal loss and provide low contact resistance during several connection cycles. Engineers may depend on constant performance throughout the life of the component since stainless steel and brass connectors used in a 4.3-10 RF coaxial load generally tolerate a minimum of 500 insertions and removals. This longevity minimizes the frequency of replacements required in high-throughput testing settings, hence enabling more efficient and cost-effective network testing operations.

Why Is High-Frequency Performance Important in a 4.3-10 RF Coaxial Load?

Beyond physical construction, the electrical performance of a 4.3-10 RF coaxial load determines how accurately it can support demanding network testing scenarios. Frequency coverage, standing wave ratio, and power handling capacity all play a role in whether a load can meet the precision requirements of modern communication systems.

What Frequency Range Does a 4.3-10 RF Coaxial Load Cover?

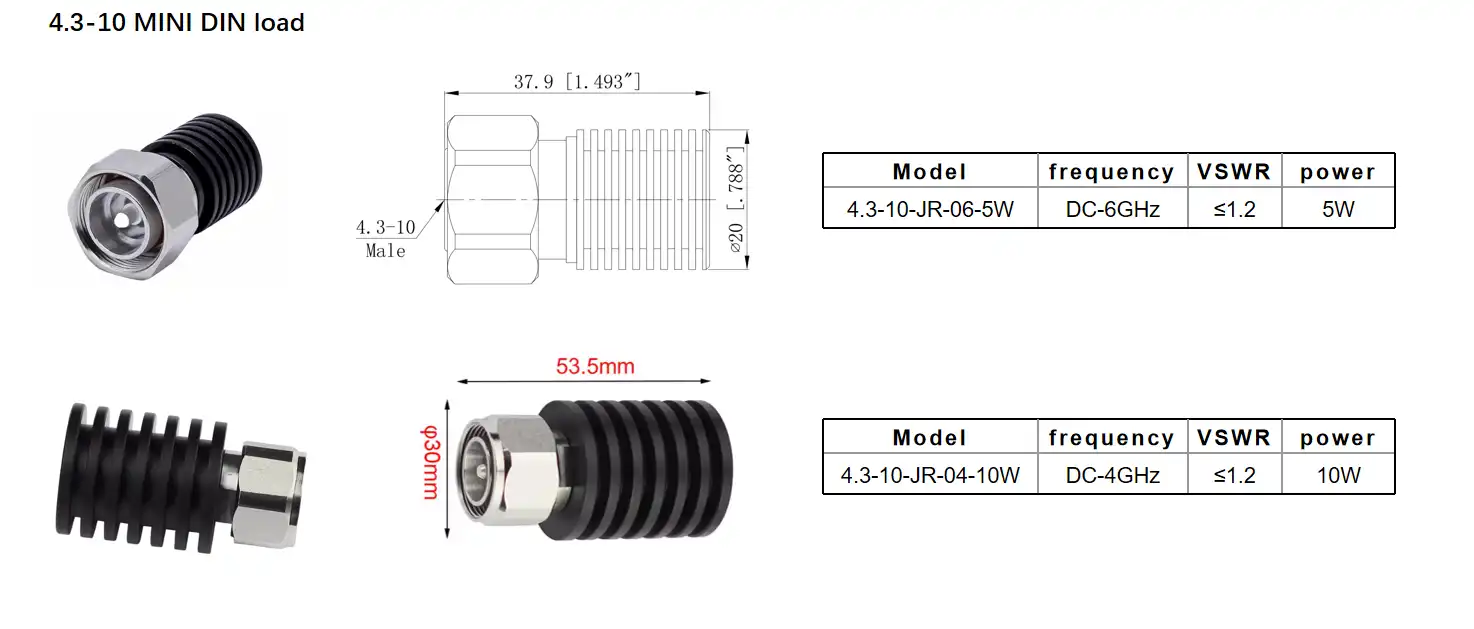

The Standard 4.3-10 RF coaxial load operates from DC to 6 GHz, with some high-performance variants extending the range to DC-12 GHz. The wide frequency coverage enables a single 4.3-10 RF coaxial load to be used in a range of testing applications, from lower frequency communication systems to more sophisticated high-frequency network architecture. A load that can perform across a wide variety of frequencies would be appreciated by engineers testing 5G and 4G cellular networks, satellite communications, or broadcast transmission systems, who don’t want to have to use various specialized components for different frequency bands.

How Does VSWR Affect a 4.3-10 RF Coaxial Load's Accuracy?

The Voltage Standing Wave Ratio, or VSWR, is an important performance figure for any 4.3-10 RF coaxial load because it tells you how much of the signal is reflected back toward the source instead of being absorbed. Standard models have a VSWR of 1.35 or better, but the high-precision variants may have ratios as low as 1.2:1. The lower the VSWR, the less signal is reflected by a 4.3-10 RF coaxial load, which immediately translates into more accurate test results when utilized as a terminal load for vector network analyzers and signal generators. Such accuracy is important in labs and manufacturing lines, where even small signal reflections may affect the findings of measurements.

What Power Handling Capacity Does a 4.3-10 RF Coaxial Load Offer?

The power handling capability of a 4.3-10 RF coaxial load is another important consideration. The typical unit can operate continuously at 10W CW at 25℃. Peak power may be as high as 500W pulsed with a 5μs pulse width and 1% load duty cycle. This combination of continuous and peak power handling enables a 4.3-10 RF coaxial load to effectively absorb RF energy throughout a variety of testing situations ranging from steady-state signal testing to short-term high-power pulses. This feature is especially important in radar systems and military communication equipment where the power absorber's capacity to work under different load situations is an important factor for proper performance assessment.

How Does a 4.3-10 RF Coaxial Load Perform in Real-World Network Environments?

Understanding the technical specifications of a 4.3-10 RF coaxial load is only part of the picture; its real value becomes clear when applied to actual communication systems, test setups, and specialized environments where reliability cannot be compromised.

How Is a 4.3-10 RF Coaxial Load Used in Communication Systems?

Communication systems use 4.3-10 RF coaxial load compatible with 5G and 4G cellular networks, dispersed antenna systems, satellite communications, and broadcast television transmission systems. It offers dummy loads and impedance matching for RF lines, which helps avoid signal reflection from harming sensitive equipment. This function is critical, particularly in complicated network architecture where various signal pathways need to be verified and calibrated without generating interference. A 4.3-10 RF coaxial load reliably absorbs excess RF energy, helping to keep communication networks stable and performing well overall during installation and ongoing maintenance.

Why Is a 4.3-10 RF Coaxial Load Essential for Test and Measurement Scenarios?

4.3-10 RF coaxial loads are used in test and measurement applications as terminal loads for vector network analyzers, signal generators, and related devices. It is especially helpful for terminating the unused ports of multiport microwave devices such as directional couplers and isolators to ensure that test results obtained in labs and manufacturing lines are correct. This crucial instrument is used by engineers undertaking accurate RF testing on a wide variety of equipment. An unterminated port might produce signal reflections that threaten measurement reliability if a 4.3-10 RF coaxial load is not operating correctly.

How Does a 4.3-10 RF Coaxial Load Perform in Military and Special Applications?

The 4.3-10 RF coaxial load is designed to fulfill the demanding component dependability requirements of military and specialized communications systems. It provides steady RF power absorption even in difficult settings and adapts to stress and vibration resistance requirements in aircraft and ship communication applications. 4.3-10 RF coaxial loads are available with a wide temperature range from -40℃ to +75℃. For wide-temperature models, the temperature range is -55℃ to +125℃. This allows for reliable performance over a wide range of environmental conditions, which is critical for applications such as radar systems or other defense-related communication infrastructure.

Conclusion

The 4.3-10 RF coaxial load provides the accuracy, durability, and power handling capacity required for precise network testing in communications systems, labs, and specific military applications. Shaanxi Chuangyu Electronic Technology Co., Ltd. has over 20 years of RF component manufacturing experience and has a fully integrated production base in Xi’an with dedicated production lines for coaxial connectors, RF cable assemblies, and load attenuators. The firm serves sectors from telecoms to aerospace and is devoted to quality and dependability. To discuss your RF coaxial load requirements, contact the team at postmaster@cymicrowave.com.

FAQ

1. What frequency range does a 4.3-10 RF coaxial load typically support?

Standard models cover DC to 6GHz, while high-performance versions extend coverage up to DC~12GHz.

2. How much power can a 4.3-10 RF coaxial load handle?

Standard units support 10W of continuous wave power at 25℃, with peak power capacity up to 500W under specific pulsed conditions.

3. What is a good VSWR for a 4.3-10 RF coaxial load?

A VSWR of 1.35 or lower is standard, while high-precision models can achieve ratios as low as 1.2:1 for more accurate testing.

4. Is a 4.3-10 RF coaxial load suitable for outdoor use?

Yes, select high-end models offer IP68-level water resistance, making them suitable for harsh outdoor communication environments.

5. How often should a 4.3-10 RF coaxial load be inspected or recalibrated?

After roughly 1000 cumulative hours of use, or following severe shocks or overheating, full-band VSWR detection and possible recalibration is recommended.
