How Does a Four-wire Pool Test Probe Improve Contact Resistance Accuracy?

Four-wire pool test probes revolutionize contact resistance measurement by employing Kelvin sensing methodology, where separate pathways handle current delivery and voltage detection. The center conductor functions as the voltage test needle while the outer conductor serves as the current test probe, eliminating lead resistance interference that compromises traditional two-wire configurations. This separation ensures measurement precision reaches milliohm-level accuracy, critical for battery testing applications where even minor resistance variations impact performance validation. Gold-plated beryllium copper inner needles maintain consistent electrical contact, while the robust flange installation with 160N spring force guarantees reliable mechanical connection across temperature ranges from -45°C to +200°C.

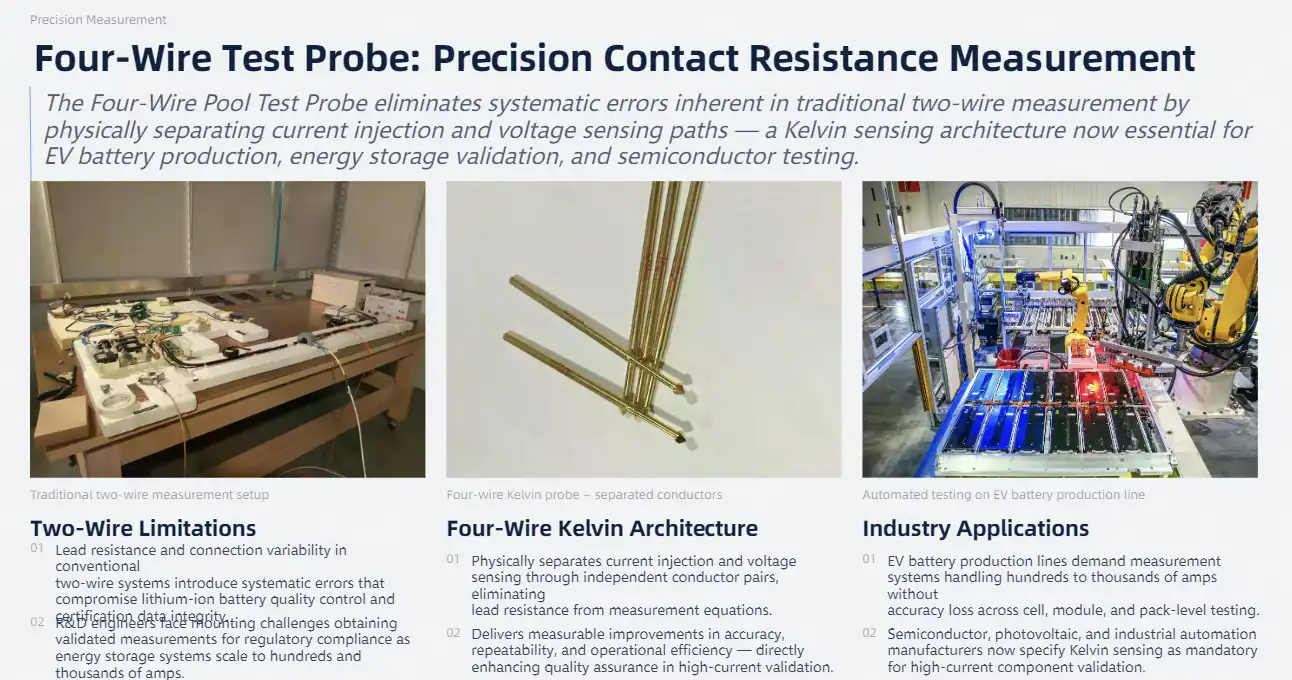

Introduction

For accurate electrical testing in the production of batteries and energy storage systems, monitoring tools must be very accurate. Measurements of contact resistance have a direct effect on quality control decisions made in the production of lithium-ion batteries, the installation of energy storage systems, and the testing of consumer electronics. Lead resistance and connection variability in traditional two-wire measurement systems cause systematic errors. This makes things hard for R&D engineers and test measurement specialists who need validated data for product certification and regulatory compliance.

Through an architectural innovation that physically separates current injection and voltage sensing, the Four-wire pool test probe addresses these measurement challenges. This Kelvin sensing method is now needed by companies that test semiconductors, make photovoltaic equipment, and make automation equipment that needs to make sure that high-current parts work properly in tough conditions. Knowing how this technology improves the accuracy of contact resistance helps technical directors and procurement managers choose the right precise test tools.

Modern testing settings for making batteries for electric vehicles and making sure that energy storage stations work properly need measurement systems that can handle hundreds to thousands of amps without losing their accuracy. The change from two-wire to four-wire probe designs is a big step forward in measurement science. It has measurable benefits for accuracy, repeatability, and operating efficiency that have a direct effect on quality assurance results.

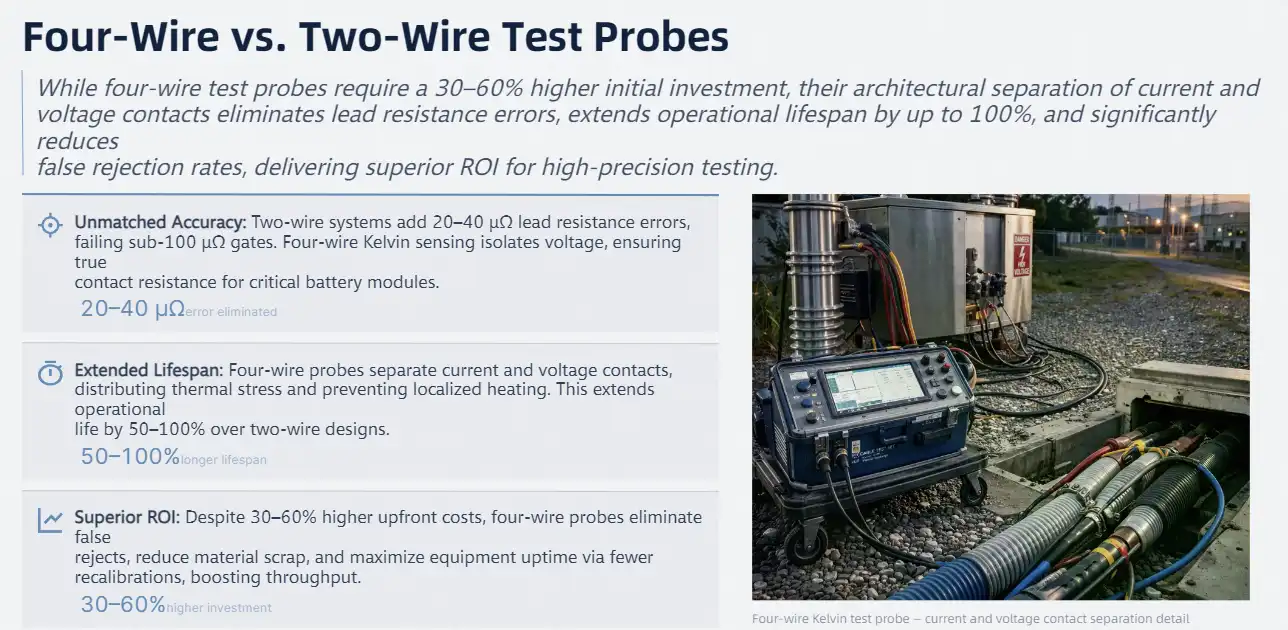

Comparison Between Four-Wire and Two-Wire Test Probes

Accuracy Advantages in Practical Applications

Every measurement made with a two-wire probe system includes the resistance of the lead and connection. This makes systematic errors that get worse as the cable length and quality of the connection get worse. Two-wire methods may give results that are 20–40 microhms higher than the real values when checking battery modules with contact resistance goals below 100 microhms. This means that they can't be used to make quality gating decisions. The four-wire method only checks the resistance between the voltage sense points, leaving out any other resistance sources.

Operational Lifespan and Maintenance Economics

In high-volume testing environments, the total cost of ownership is directly affected by how long a probe lasts. Two-wire probes wear out faster because the measurement current runs through the same contact points that are used to sense voltage. This causes heating in one area and material breakdown in another. The four-wire design spreads thermal and mechanical stress across separate current and voltage contacts. This makes the operational life 50–100% longer than with two-wire designs that do the same thing.

Cost-Benefit Analysis for Industrial Procurement

The initial prices of four-wire probes are usually 30–60% higher than those of two-wire options. This makes organisations that want to save money hesitant to buy them. However, a full total cost analysis shows a strong return on investment through a number of value streams. Less measurement error means fewer false rejects during production testing. This saves money on materials that would have been thrown away even though they met the specifications. Fewer recalibrations mean that equipment is up and running for longer, which increases output in semiconductor testing sites where test capacity limits production volume.

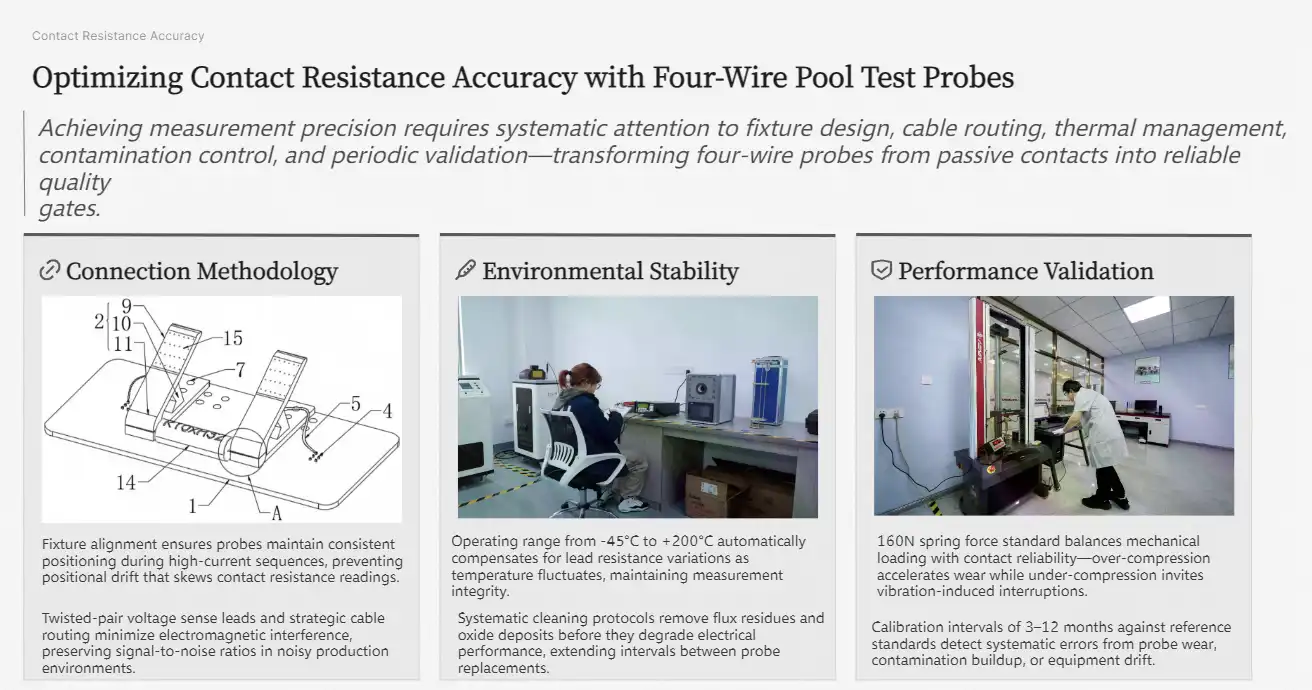

Optimizing Contact Resistance Accuracy with Four-Wire Pool Test Probes

Proper Connection Methodology and Setup Procedures

The best measurement precision starts with using the right methods to connect and place the probe. Square battery test probes should be put in test fixtures that are the same size as the probes. The probes should be secured at both ends of the fixtures to keep the same shape during test sequences. The fixture keeps the probe from moving during high-current tests by providing mechanical support. This stops positional changes from affecting the contact resistance. When technical directors specify automated test equipment, they should make sure that the designs of the fixtures allow for thermal expansion across the operational temperature range without affecting the alignment of the probes.

In four-wire configurations, the way cables are routed has a big effect on the quality of measurements. To keep electromagnetic interference to a minimum, voltage sensing leads should stay away from current-carrying wires. This will keep sensitive voltage readings from being messed up by electromagnetic noise. Keeping the sense lines short lowers the chance of picking up emissions from switching power sources and discharge circuits, which are common in places where batteries are tested. The twisted-pair design of voltage sense leads reduces differential noise, which makes measurement signal-to-noise ratios even better in production settings with a lot of electrical noise.

Environmental Factors and Measurement Stability

Managing temperature has more than one effect on measuring contact resistance. The temperature of the test piece has a direct effect on its bulk resistivity, while the temperature of the probe changes the physics of the contact interface. Four-wire pool test probes that work from -45°C to +200°C keep measurements accurate because the way they are built automatically takes into account changes in lead resistance as the temperature rises or falls. However, differences in temperature between the probe and the test item can cause thermoelectric voltages at metal junctions that are not the same, which can lead to mistakes of a few microvolts in precise readings.

Controlling contamination keeps probe performance high even after long repair gaps. In manufacturing environments, probes are exposed to flux residues, oxide formation, and particulate deposition, all of which make contact resistance higher and make it harder to repeat measurements. By using the right probe cleaning paper and following regular cleaning procedures, these contaminants can be removed before they damage electrical performance. Manufacturers of medical devices and industrial equipment that need to test their products in a cleanroom should list the probe materials and cleaning methods that are compatible with their contamination control routines.

Troubleshooting and Performance Validation

Managing mechanical stress makes probes last longer while keeping their accuracy. The 160N spring force standard strikes a mix between mechanical loading on test items and probe parts and contact reliability. Going over the suggested limits of compression speeds up the wear on the beryllium copper spring elements, which makes the contact force less consistent over time. On the other hand, not compressing enough makes it easier for vibrations to cause contact delays during high-current tests. When product managers choose test methods, they need to make sure that the designs of the fixtures achieve the desired level of compression without stopping the spring's journey.

Periodic performance verification makes sure that measurement systems stay accurate for as long as they are used. When you compare measurements to calibrated reference standards, you can see systematic errors that can happen because of probe wear, contamination buildup, or measurement equipment drift. R&D labs should set calibration intervals based on how often the equipment is used and how harsh the climate is. For demanding production uses, these intervals should be between three and twelve months.

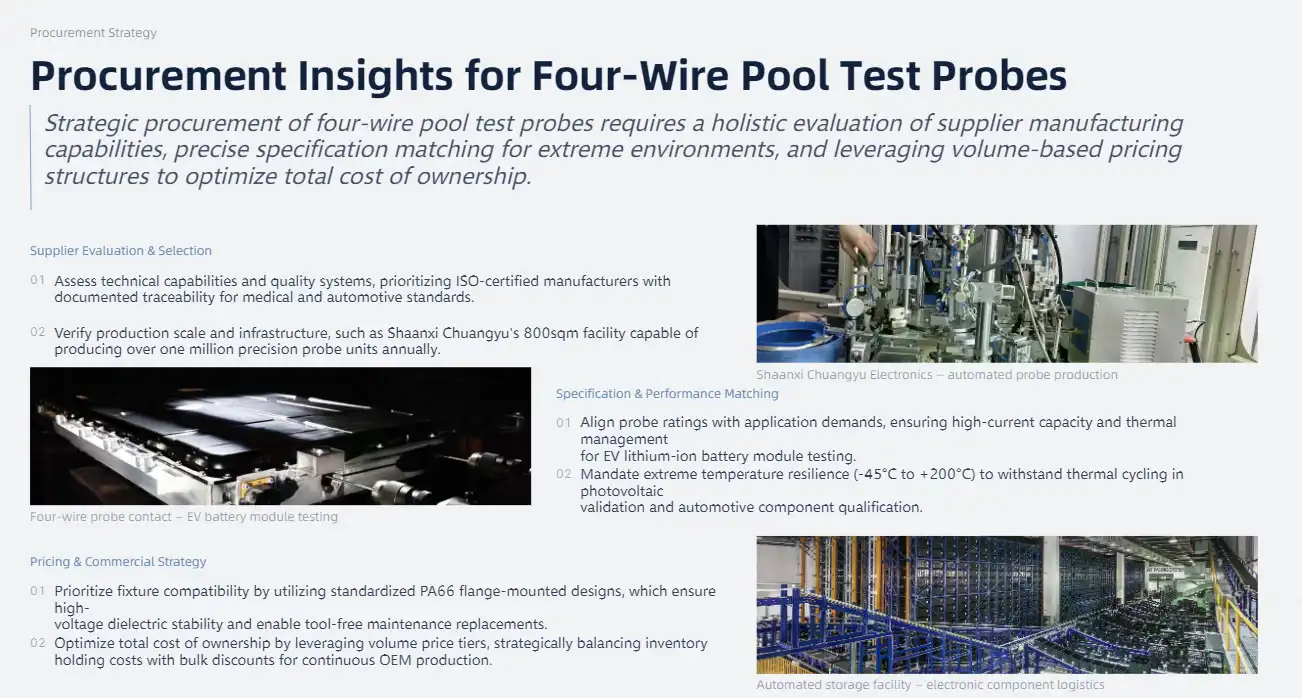

Procurement Insights for Four-Wire Pool Test Probes

Supplier Evaluation and Selection Criteria

To find suitable providers, you need to look at their technical skills, quality systems, and application support infrastructure. Leading manufacturers show they know how to make precision probes by providing detailed technical documentation that lists electrical performance parameters, mechanical characteristics, and operating limits for different environments. This method is used by Shaanxi Chuangyu Electronic Technology Co., Ltd., which gives thorough specs on things like contact resistance stability, current handling capacity, temperature coefficients, and expected operating lifespan based on tested data.

An evaluation of a company's manufacturing capabilities should look at its output methods, quality control methods, and testing standards that make sure the quality of the products it makes is consistent. Suppliers with quality management systems that are ISO-certified offer recorded traceability and process controls that meet the quality standards for medical devices and the car industry. Chuangyu's Xi'an facility has an 800-square-meter production workshop with specialised lines for making test probes that can make more than one million units a year. This shows that the company can handle large-scale purchasing needs.

Specification Matching and Performance Requirements

Mismatches between bought tools and operational needs can be expensive. To avoid this, make sure that probe specs match application requirements. For checking power batteries that need to handle hundreds to thousands of amps of current, you need probes that are rated for these harsh conditions and have the right thermal control and contact area size. Chuangyu's Four-wire pool test probe can carry enough current for checking lithium-ion battery modules, such as those with lithium iron phosphate and ternary lithium chemistries that are popular in electric vehicle use.

The temperature range must include the worst possible environmental conditions, such as thermal cycling during accelerated life testing. Probes that can work in temperatures ranging from -45°C to +200°C can handle extreme test situations in photovoltaic module validation and automotive component qualification, where high and low temperatures are used to check how durable a product is. To make sure that supplier offers meet practical envelope requirements, procurement specs should clearly state temperature performance requirements.

Pricing Structures and Commercial Considerations

Fixture compatibility and placement limitations are based on the mechanical link specs. Standardised flange-mounted probes make it easier to connect them to existing test fixtures, which cuts down on the need for custom machining and speeds up the deployment process. The PA66 flange material in Chuangyu's design is very stable in size and has good dielectric qualities, making it ideal for checking high-voltage batteries. It also makes it easy to change the probe for regular maintenance without taking the fixture apart.

By understanding how prices work, you can negotiate better business terms that balance the cost of acquisition with the value of ownership as a whole. When you commit to more than the minimum order quantity, volume price tiers usually offer big discounts on the cost per unit. This helps OEM makers who need to keep testing production. By asking for quotes at different levels of volume, you can see how prices change over time and find the best order quantities that balance the costs of keeping inventory with the discounts that come with buying in bulk.

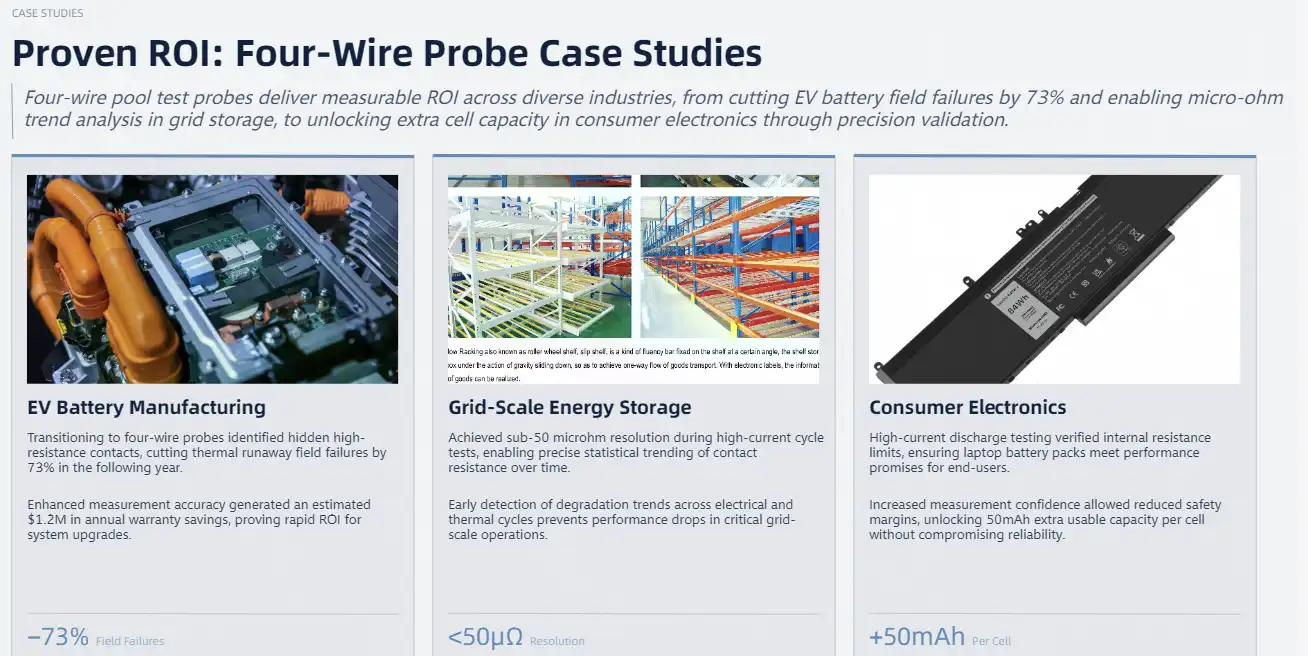

Case Studies & Verification Data

Implementation Results in Battery Manufacturing

A major company that makes lithium-ion batteries for electric cars switched from two-wire systems to Four-wire pool test probes for validating the connection between cells and modules. The better measurement accuracy made it possible to find low-resistance contacts that were previously thought to be fine. This cut field failures caused by heat runaway from high-resistance connections by 73% over the next production year. This higher quality led to estimated savings on warranty costs of more than $1.2 million per year, showing a real return on the investment in upgrading the measurement system.

Energy Storage System Validation

Four-wire pool test probes were used by an energy storage station integrator to check the battery pack units used in grid-scale storage systems. For high-current charge-discharge cycle tests, the measurements had to be accurate enough to find degradation trends before they hurt the operation's performance. The four-wire method allowed for measurements with a resolution of less than 50 microhms, which allowed for statistical trending of contact resistance over time and across electrical and thermal cycling.

Consumer Electronics Testing Applications

A company that makes consumer electronics like laptop battery packs used Four-wire pool test probes for high-current discharge testing that simulated real-life use. The accuracy of the measurements proved that the internal resistance of the battery pack stayed below the limits set during rapid life testing. This ensured that the battery would work as promised when it got to the customer. Product managers said that higher measurement confidence allowed them to lower the design safety margins. This freed up 50 milliamp-hours of usable capacity per cell without affecting reliability goals.

Conclusion

Through architectural separation of current delivery and voltage sensing paths, Four-wire pool test probes provide measured accuracy gains in contact resistance measurement. This Kelvin sensing method gets rid of the systematic errors that come with two-wire setups. It also gives measurements the accuracy that is needed for checking batteries, making sure energy storage works, and making sure high-reliability electrical assemblies work. Investing in four-wire technology has been shown to pay off by lowering the number of false rejections, increasing the life of the probe, and making it easier to control the manufacturing process so that it meets stricter standards. Companies that want to be the best at electrical testing should look at Four-wire pool test probes as a strategic measurement infrastructure that helps them reach their quality goals in a wide range of situations, from making power batteries to validating consumer electronics.

FAQ

Why are four-wire probes more accurate than two-wire designs?

With Four-wire pool test probes, voltage measurement is separate from current delivery. This means that mistakes caused by lead resistance and connection variability that can happen with two-wire readings are not present. The voltage sensing leads don't carry much current, so their resistance doesn't matter in terms of math for the final resistance calculation. When testing low-resistance samples, this architectural benefit makes the accuracy better by an order of magnitude.

Can these probes handle diverse testing environments?

Extreme environmental conditions, such as thermal cycling validation and high-temperature endurance tests, can be handled by the operating temperature range of -45°C to +200°C. Gold-plated contacts don't rust or get dirty in a wide range of chemical environments, and the PA66 flange stays the same size across a wide range of temperatures.

What maintenance extends probe operational life?

Cleaning regularly with special probe cleaning paper gets rid of dirt and grime before they hurt the performance of the contact. Regular inspections with a microscope find wear patterns that show when something is almost at the end of its useful life. This lets you replace it before it loses its measurement accuracy. Proper fixture placement and limited contact force keep mechanical parts from wearing out too quickly.

Are these probes suitable for high-current applications?

The design is especially made to meet the needs of high-current testing in battery validation. It can handle hundreds to thousands of amps for testing lithium-ion cells and confirming energy storage systems. Separate pathways for current and voltage allow for strong current delivery while measuring accuracy is maintained.

Partner with Chuangyu for Precision Test Solutions

Chuangyu makes Four-wire pool test probe solutions that are designed for tough battery testing jobs in the electronics, photovoltaic, and new energy industries. Our probes have contacts made of beryllium copper that are gold-plated, a strong 160N spring force, and have been tested and shown to work in temperatures ranging from -45°C to +200°C. We have been making precision probes for almost twenty years and can make more than one million units a year. This means we can meet the needs of your quality assurance programs with efficiency. Our factory in Xi'an uses both precise manufacturing and smart quality control to make sure that every Four-wire pool test probe manufacturer meets international standards for both electrical performance and mechanical durability. Email our technology team at chuangyuwz01@cymicrowave.com to talk about your unique testing needs and get custom probe solutions with full application support. You can look at all of our precision test equipment at cymicrowave.com.
