Custom Cylindrical Battery Test Probe Solutions for Battery Manufacturers

When reliable battery testing equipment becomes essential for your operations, selecting the right cylindrical battery test probe transforms how you evaluate power cells. These specialized contact tools deliver exceptional performance across aging tests, current transmission evaluations, and signal induction measurements. Modern battery manufacturing demands precision testing solutions that maintain stable contact under extreme conditions while delivering accurate data across thousands of test cycles. Whether you're validating lithium-ion chemistries or assessing nickel-metal hydride performance, understanding how customized probe solutions address your unique challenges directly impacts production quality and operational efficiency.

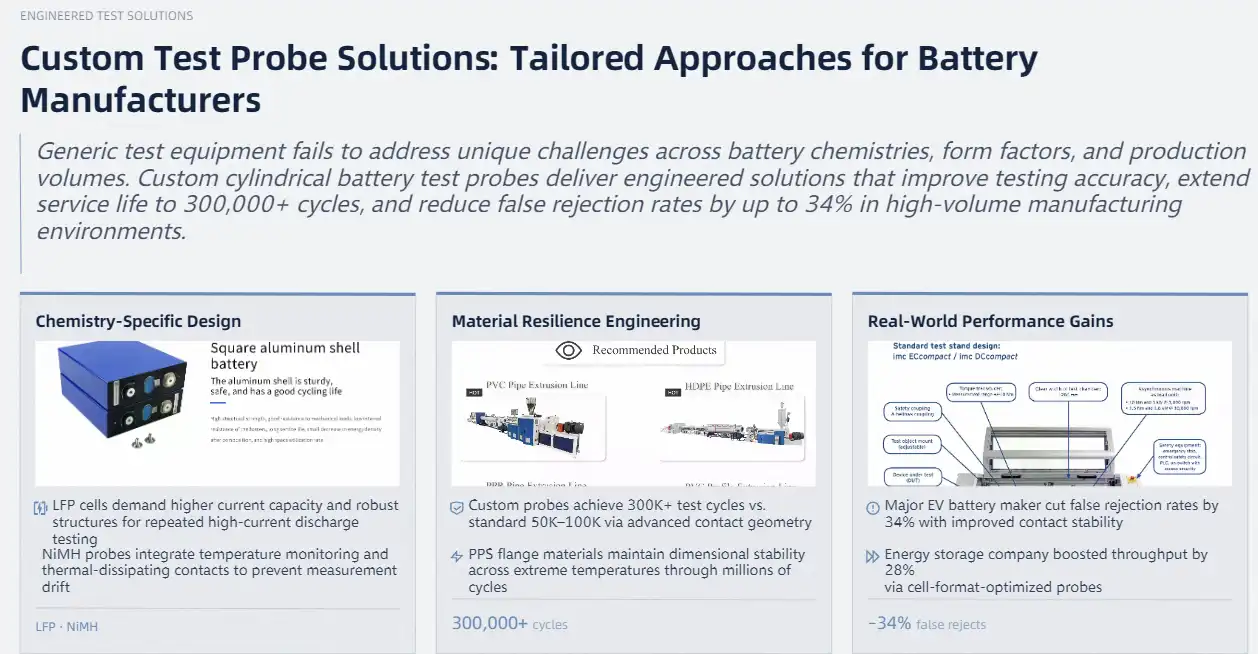

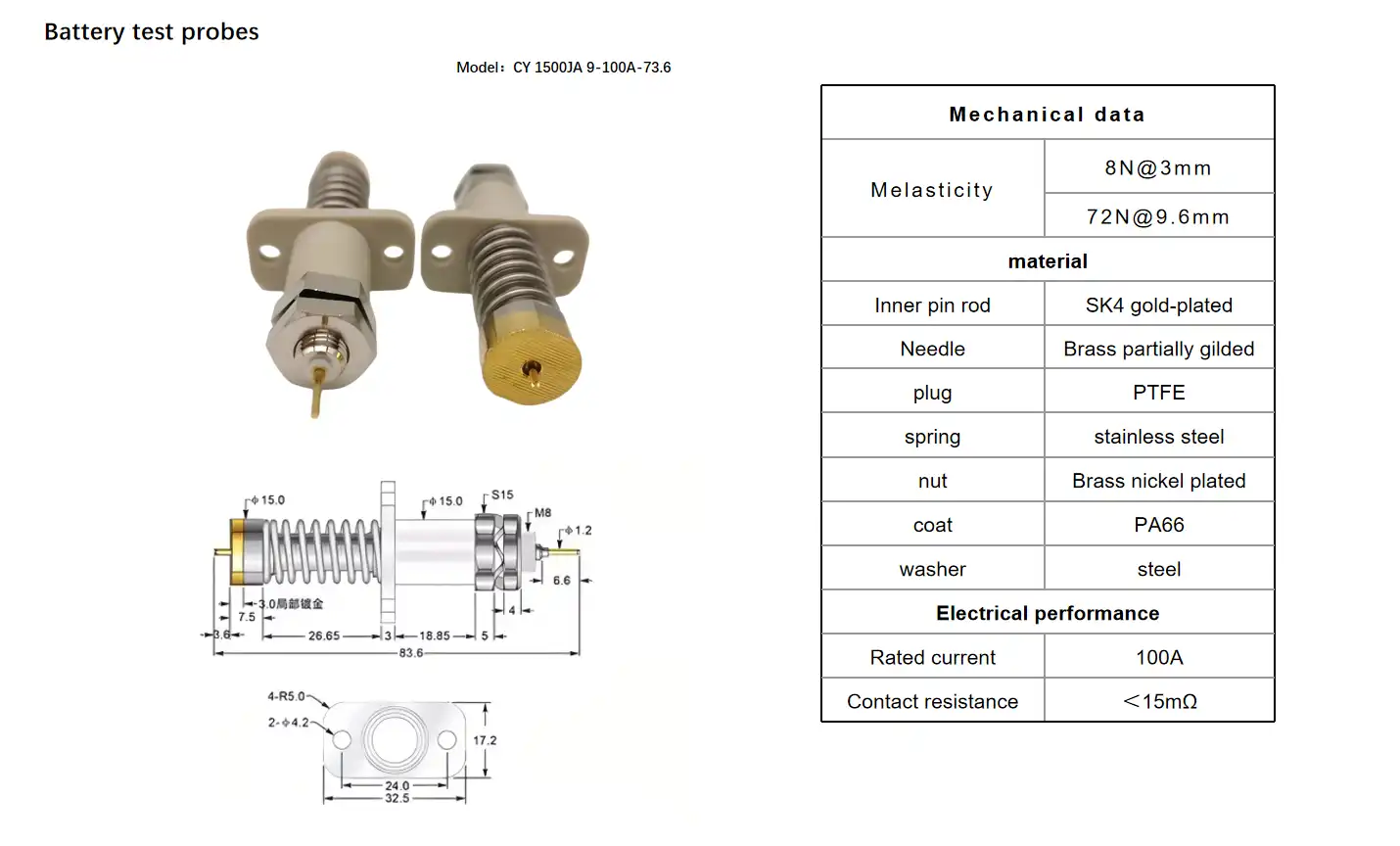

Custom Test Probe Solutions: Tailored Approaches for Battery Manufacturers

When it comes to different chemistries, form factors, and production volumes, generic test equipment doesn't usually help battery manufacturers with their unique problems. In high-volume manufacturing environments, custom Cylindrical battery test probes offer engineered solutions that improve testing accuracy while lowering failure rates.

Addressing Chemistry-Specific Testing Requirements

Compared to ternary lithium chemistries, lithium iron phosphate batteries have different voltage and internal resistance profiles. Custom probe designs take these differences into account by using the best contact materials and shapes. Lithium iron phosphate cells usually work at lower voltages and higher discharge rates. This means that probes need to be able to handle more current and have strong mechanical structures to be able to handle the physical pressures of repeated high-current tests.

Nickel-metal hydride batteries are hard to test because they self-discharge more quickly and are sensitive to changes in temperature. Customized probes for these chemicals have features that let you keep an eye on the temperature and make contacts that keep test cells from getting too hot. This keeps measurement errors from being caused by temperature changes.

Material Resilience and Durability Engineering

Standard testing tools can usually handle 50,000 to 100,000 test rounds before they need to be replaced. Through advanced material choices and contact shape optimization, custom-engineered solutions can make this last up to 300,000 times or more. This longer longevity cuts down on equipment breakdowns and replacement costs while keeping measurements the same from batch to batch.

Polyphenylene sulfide (PPS) flange materials are often used in custom probes because they are very resistant to chemicals and keep their shape even at high and low temperatures. This engineering polymer keeps the voltage and current conductors perfectly aligned even after millions of mechanical cycles. This makes sure that the probe's measurement accuracy stays within the required range for its entire life.

Real-World Performance Improvements

Custom Cylindrical battery test probes are used by battery makers, and they show noticeable improvements in a number of performance measures. A major company that makes EV batteries saw a 34% drop in false refusal rates after switching from standard probe solutions to customized ones. This was directly due to better contact stability and lower measurement noise. Another company that makes energy storage systems increased throughput by 28% by adding probes that were optimized for their specific cell formats. This got rid of the need for time-consuming repositioning and retry cycles.

Consistent electrical contact gets rid of connections that break off and cause test failures, which raises production output. Custom serration patterns and optimizing the contact force make sure that the probe works reliably on a range of surfaces, even those with protective coatings or small surface contamination that would normally make the probe less effective.

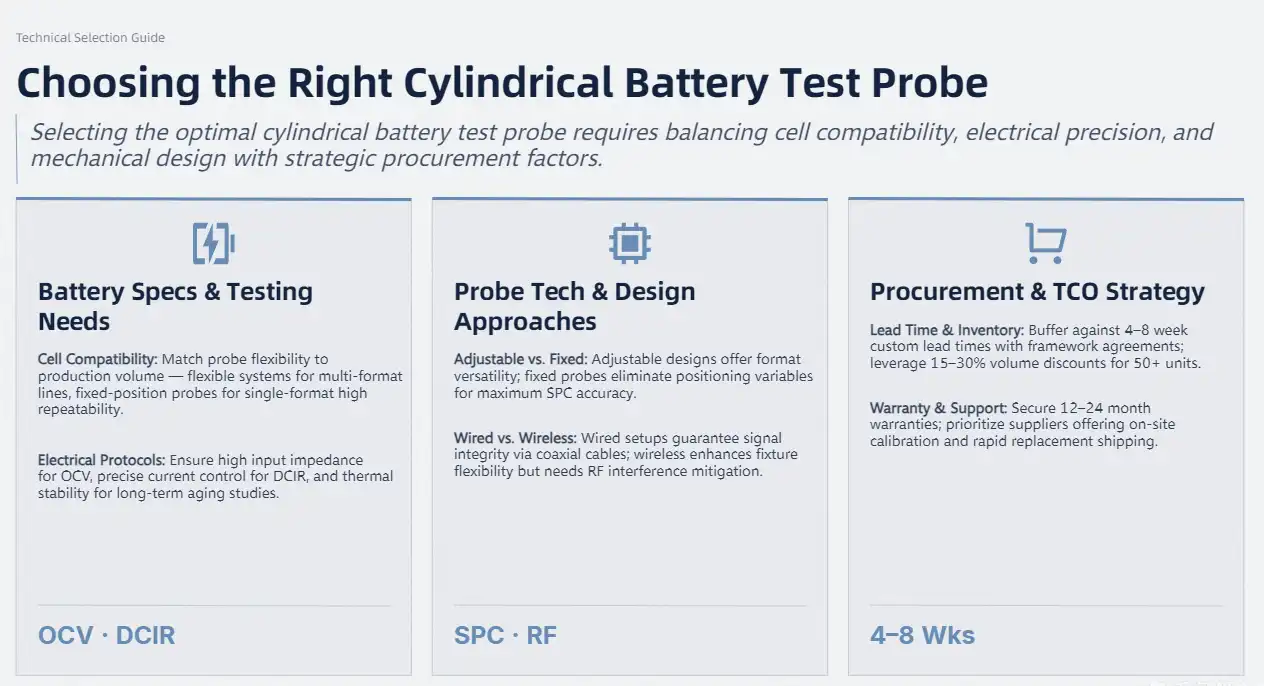

Choosing the Right Cylindrical Battery Test Probe: A Decision-Making Framework

To choose the best test equipment, you need to carefully think about your technical needs, the limits of your operations, and the total cost of ownership. Supply chain managers and test engineers can use this framework to help them make decisions.

Assessing Your Battery Specifications and Testing Requirements

Battery type is the most important decision factor. The physical compatibility of checking tools is based on the cell's diameter, length, and terminal arrangement. When manufacturers test more than one format, flexible probe systems are helpful because they can handle different cell sizes without having to switch out equipment. However, for single-format production lines, fixed-position probes usually offer better repeatability.

Electrical performance standards are set by testing protocols. For open circuit voltage (OCV) readings, you need a high input impedance and low noise. For direct current internal resistance (DCIR) testing, you need to be able to precisely control the current and quickly sample the voltage. Long-term tests with controlled current and temperature are used for aging studies, with a focus on probe longevity and thermal stability.

Comparing Probe Technologies and Design Approaches

When choosing between adjustable and set probe designs, there are important trade-offs between flexibility and accuracy. Adjustable systems can handle different cell formats with mechanical positioning mechanisms, which means that a wider range of products can be made with less equipment. Fixed designs get rid of positioning factors, which makes measurements more accurate and repeatable. This is important for high-volume production where statistical process control relies on keeping test system differences to a minimum.

Wired probe setups are known to be reliable and are easy to connect to current test equipment. Standard coaxial or multi-conductor cables let these systems connect, so the electrical characteristics are predictable and there aren't many concerns about signal integrity. Wireless options get rid of wire wear and make test fixture designs more adjustable. However, they need careful RF design to avoid interference in testing settings with a lot of current.

Procurement Considerations Beyond Technical Specifications

Lead times for custom Cylindrical battery test probes usually range from 4 to 8 weeks, based on the design's complexity and the materials' availability. Strategic buyers keep a buffer stock or make framework agreements with suppliers to make sure that production keeps going while equipment is being fixed or the capacity is increased. Volume price models usually offer 15% to 30% cost savings for orders over 50 units, which makes buying in bulk a good idea for companies that make a lot of products.

Total cost of ownership is affected by warranty coverage and the level of support provided by the supplier. For 12 to 24 months, full guarantees that cover both materials and workmanship protect against early failures, and expert support services help with setup, calibration, and fixing problems. When equipment breaks down, suppliers who offer on-site help and quick shipping of replacement probes keep production running as smoothly as possible.

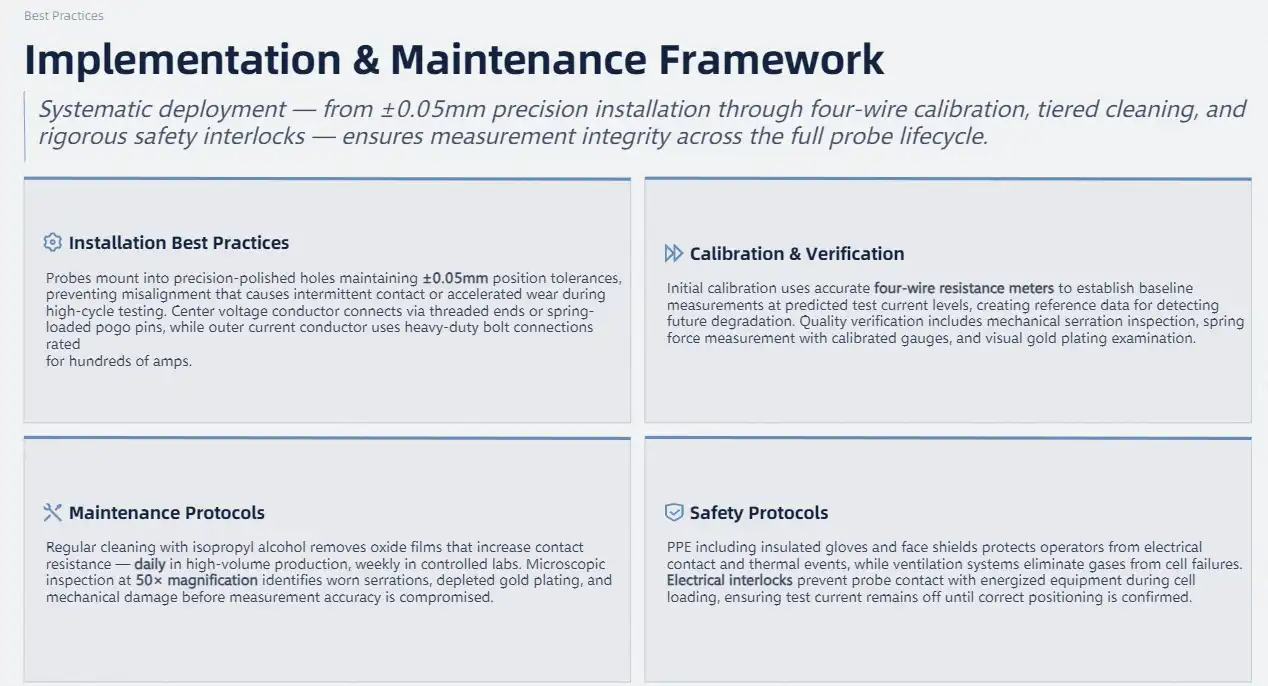

Implementing and Maintaining Your Cylindrical Battery Test Probes

A successful probe deployment includes more than just buying one. It also includes following the right steps for installation, calibration, and continued upkeep to keep measurements accurate for as long as the probe is in use.

Installation Best Practices and Integration Methods

When mounted correctly in test frames, contacts stay aligned, and the device is mechanically stable. Probes fit into precisely polished holes that keep position tolerances within ±0.05mm. This stops misalignment that could lead to intermittent contact or faster wear. The design of the fastener has to be able to handle the 150N spring force and have enough thermal mass to get rid of the heat that is generated during high-current tests.

For integration with automated testing lines to work, the mechanical interface of the probe and the electrical connections to the test system must be coordinated. The center voltage conductor usually connects with threaded ends or spring-loaded pogo pins. The outer current conductor, on the other hand, uses heavy-duty bolt connections that can handle hundreds of amps without getting too hot. The right torque specs make sure that the electrical contact is reliable without hurting the probe structures.

Calibration Procedures and Quality Verification

Before going into production, the initial calibration sets the baseline resistance measurements and checks the integrity of the contacts. To do this, accurate four-wire resistance meters are used to measure the probe's resistance at the predicted test current levels. The readings are then written down and used in later checks to find signs of degradation. Checking the quality involves looking at the serrations mechanically, measuring the spring force with calibrated gauges, and looking at the gold plating visually for signs of wear.

Maintenance Protocols That Extend Service Life

Cleaning regularly stops dirt from building up, which raises contact resistance and leads to measurement shift. Isopropyl alcohol or probe cleaning paper can be used to get rid of oxide films and other residues on the battery lead contact. Cleaning batteries relies on the surroundings and how clean the surface is. In high-volume production, batteries need to be cleaned every day, while in a controlled laboratory setting, they only need to be cleaned once a week.

Inspection at the microscopic level finds wear patterns before they affect the accuracy of measurements. When looked at up to 50 times, the serrations are worn down, the gold metal is worn away, and there is mechanical damage that means the probe needs to be replaced. By writing down what was found during a check, wear patterns can be found that help with planning upkeep plans and purchases.

Safety Protocols for High-Capacity Battery Testing

Testing lithium batteries is dangerous because it involves electricity and chemicals, so strict safety rules must be followed. Insulated gloves and face shields are examples of personal protective equipment that keep people safe from electrical contact and possible thermal events. Ventilation in the test area gets rid of any gases that are released when cells fail, and fire control systems deal with situations where temperatures get too high.

Electrical interlocks keep probes from touching test equipment that is on while the cell is being loaded or unloaded. These safety features make sure that the test current stays off until the correct positioning of the cells is confirmed. This keeps operators safe from shock hazards and stops short circuits from damaging equipment.

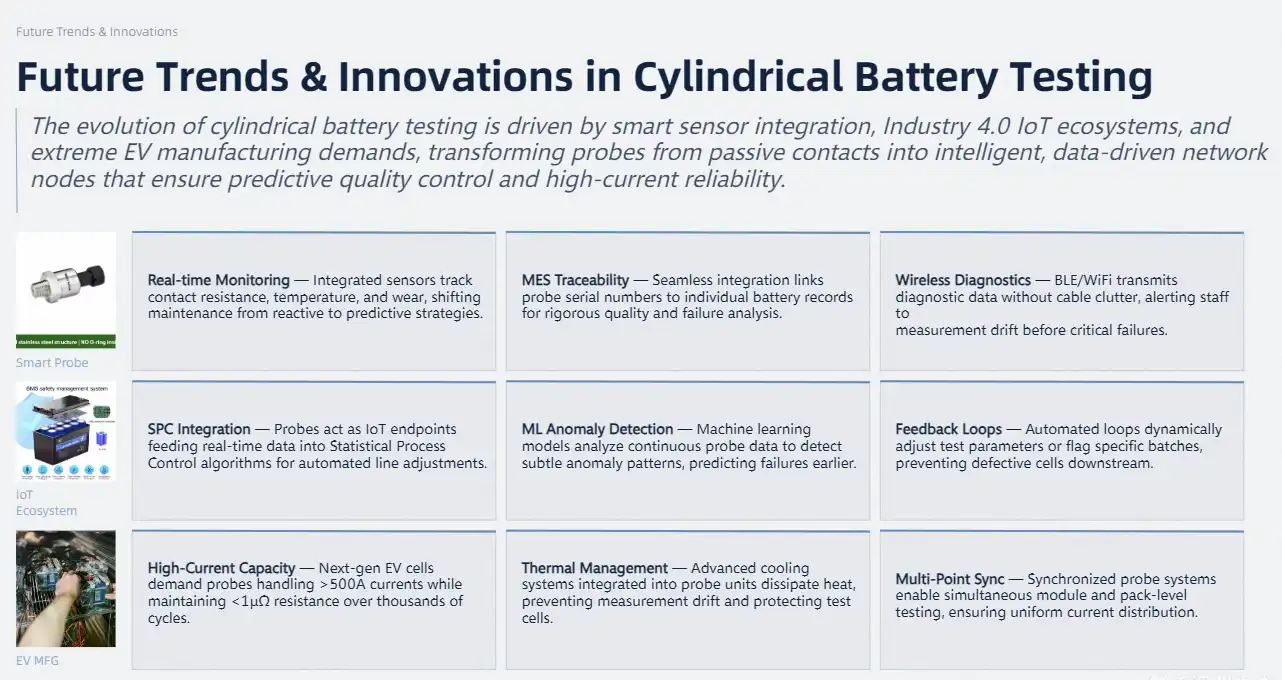

Future Trends and Innovations in Cylindrical Battery Testing

Testing technology keeps getting better and better because of higher standards for battery performance and bigger factories in the electric car and energy storage industries.

Smart Probe Technology and Data Integration

The contact resistance, temperature, and mechanical wear of next-generation Cylindrical battery test probes are all monitored in real time by integrated sensors. These smart systems give constant feedback on how well they're working, which lets maintenance plans plan and stop unexpected failures while also making the best use of repair schedules. When data is integrated with production execution systems, full test records are made that link specific probe serial numbers to each tested battery. This helps with quality tracking and failure analysis.

Monitoring probe performance is possible with wireless connectivity, which doesn't require extra cables that make test fixture design harder. Bluetooth Low Energy and industrial WiFi protocols send diagnostic data to central tracking systems. This lets repair staff know about trends in measurement error before they get worse.

Industry 4.0 and IoT-Enabled Testing Ecosystems

Modern factories that make batteries are using Industry 4.0 ideas more and more, which connect testing equipment to larger systems for managing production. Cylindrical battery test probes become network ends, sending measurement data, equipment state, and performance analytics that are used by statistical process control algorithms. This connection lets computers automatically react to changes in quality by changing test settings or marking production runs that need more attention.

When machine learning algorithms look at probe performance data, they find small patterns that are linked to certain types of failure or quality problems. These prediction abilities are better than standard statistical methods because they can spot new problems earlier and suggest fixes that keep customers from getting defective products.

Electric Vehicle Battery Manufacturing Requirements

Making EV batteries is hard to test because the cells are bigger, they need to hold more energy, and there are strict safety rules. For these uses, testing probes can handle currents of more than 500 amperes and keep their contact resistance below 1 microohm even after thousands of daily test rounds. Probe units with better cooling systems keep heat from building up, which could change the accuracy of measurements or damage test cells.

Module and pack testing need more than just individual cells; they also need multi-point probe systems that test batteries that are connected in series at the same time. Coordinated probe designs make sure that the current flow is evenly spread and that readings are taken at the same time at many test points. This gives a full picture of the battery system.

Conclusion

The choice and use of a Cylindrical battery test probe directly bear on the quality of production, the speed of operations, and the company's place in the rapidly growing battery market. Custom-engineered solutions solve specific testing problems for a wide range of chemicals and production needs, leading to measurable improvements in accuracy, output, and cost-effectiveness. When buying something, it's important to weigh the technical requirements against the overall cost of ownership. Also, following systematic maintenance procedures will keep measurements accurate for as long as the equipment is in use. New smart probe technologies and the integration of Industry 4.0 show that progress will continue. This will allow manufacturers to meet rising quality standards while also increasing production to meet the world's demand for batteries.

FAQ

How often should cylindrical battery test probes be calibrated?

How often you need to calibrate depends on how much you're making and how you want to test it. Monthly checks are best for high-volume production lines that do thousands of tests every day, while yearly checks may be better for lower-volume operations. Automated systems can do per-batch resistance checks that find probes that are exceeding specs right away. If there is any mechanical damage or strange test results, the calibration must be checked right away, no matter how often it is supposed to be done.

What differentiates custom probes from standard testing equipment?

Custom Cylindrical battery test probes have contact geometries that are optimized for each application, as well as mechanical designs that address specific testing needs. Standard tools work well for most tasks, but they might not be as accurate, last as long, or work as efficiently in certain situations. Customization provides better contact stability, longer service life, and integration compatibility, which lowers the total cost of ownership even though it costs more at first.

Do high-current custom probes improve testing accuracy in production environments?

The low-resistance design and better ability to handle current keep voltage drops and heat generation to a minimum, which reduces measurement errors. Custom probes keep the contact pressure constant and improve the electrical paths to lower noise and variation, which directly makes measurements more accurate. Manufacturers say that using properly designed probe solutions cuts the failure rate by more than 30%.

Partner With Chuangyu for Superior Battery Testing Solutions

Custom Cylindrical battery test probe solutions provide the accuracy that your manufacturing quality demands. Chuangyu specializes in engineered testing parts that meet the strict needs of battery makers in the consumer electronics, electric vehicle, and energy storage industries. Our beryllium copper and gold-plated probe designs can handle up to 300A with resistances of less than 1 mΩ. They work reliably from -45°C to +200°C and have been through millions of test runs. Email our engineering team at chuangyuwz01@cymicrowave.com to talk about your specific testing needs and find out how working with an experienced Cylindrical battery test probe manufacturer can improve your quality control while lowering your costs.
