Can a Short stroke test probe Reduce Contact Resistance?

A short stroke test probe may greatly minimise contact resistance in electrical testing. The precision-manufactured probes have travel lengths small enough to minimise mechanical fluctuation at the interface between the probe tip and the object under test. These probes are designed to minimise the stroke length to around 2 mm, which provides more uniform pressure and alignment, thereby minimising resistance variations that cause measurement inaccuracies. The regulated mechanical motion eliminates overdriving or misalignment problems associated with longer journey probes, providing solid, low-resistance connections that are critical for accurate PCB and IC testing in high-stakes production applications.

Understanding Short Stroke Test Probes and Contact Resistance

Contact resistance remains one of the most persistent challenges facing test engineers and hardware designers today. When probe tips interface with circuit boards or device pads, electrical resistance at this junction can introduce measurement inaccuracies that compromise testing reliability.

What Defines a Short Stroke Design

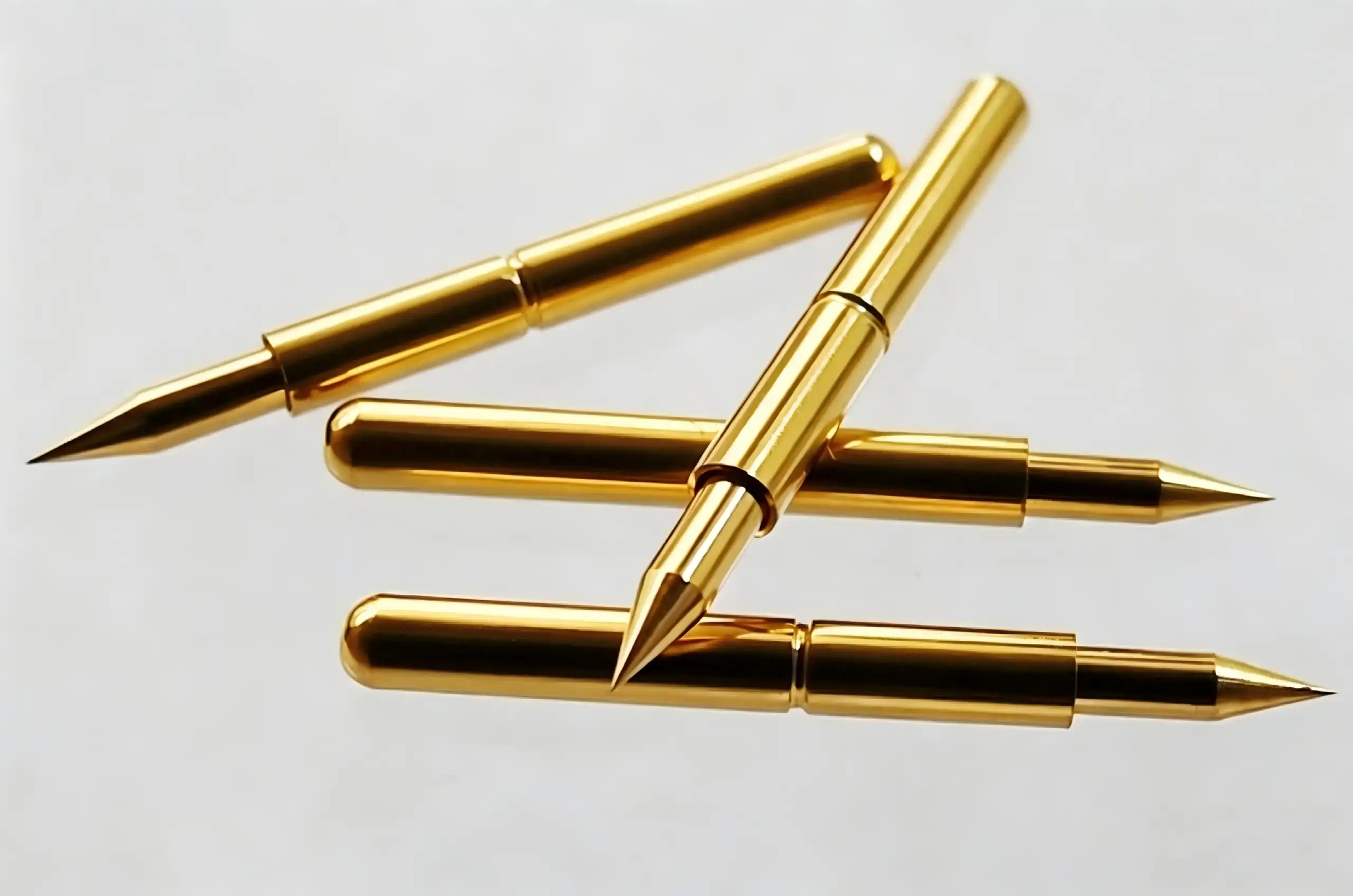

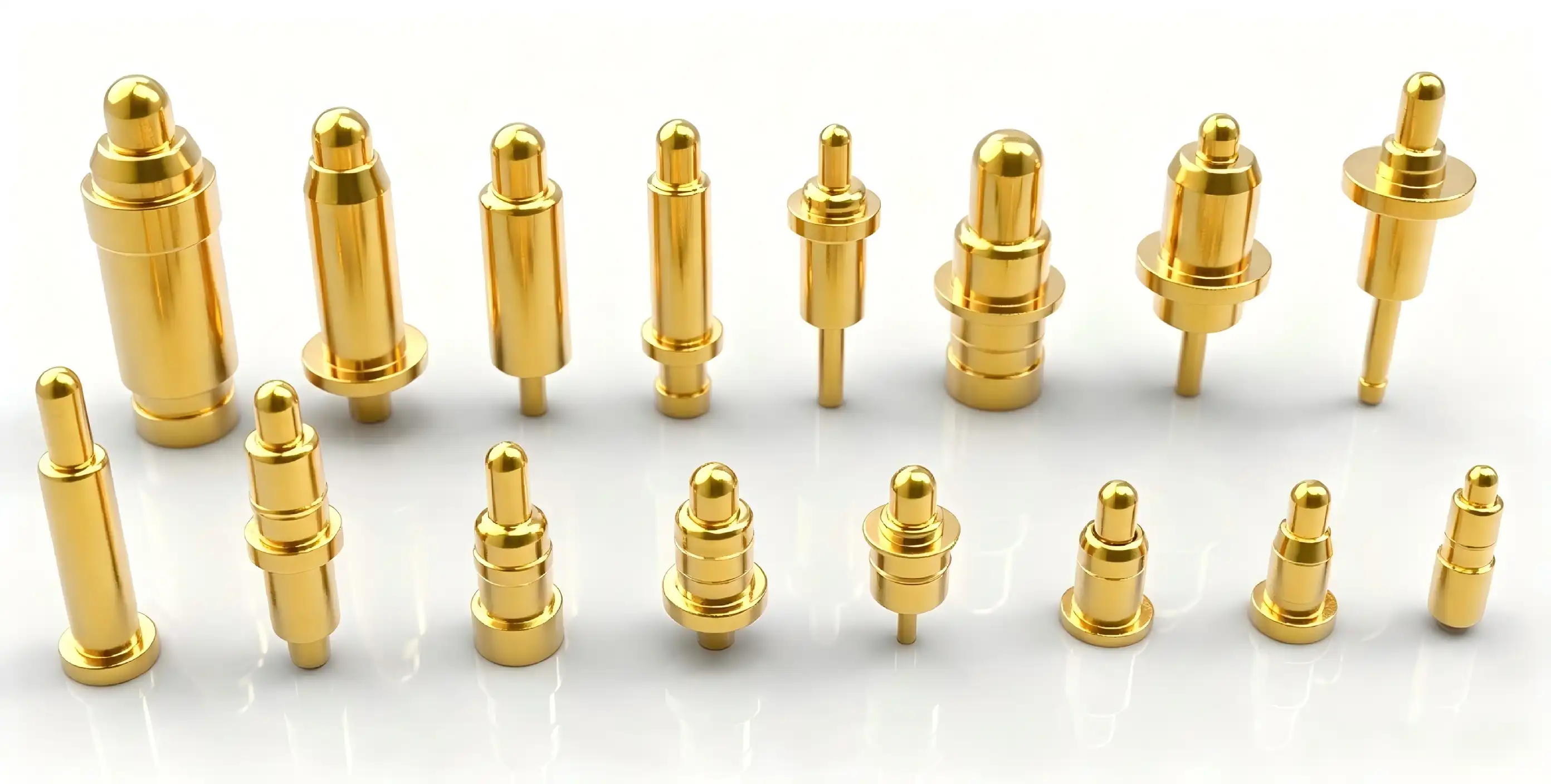

The short stroke test probe has a spring-loaded mechanism with a limited amount of vertical movement (usually 1.5mm - 2.5mm). This little actuation distance is in striking contrast to typical probes that might need 4 mm or more of travel. The mechanical movement is decreased; therefore, the contact behaviour is more predictable since the force the probe applies is constant throughout the working range.

The probe assembly is made up of three main elements: a nickel-plated beryllium copper plunger that is corrosion-resistant, a phosphor bronze barrel for strength, and a piano wire spring for accurate actuation force. This mix of materials provides electrical performance and mechanical robustness across millions of test cycles.

How Contact Resistance Impacts Testing Accuracy

Contact resistance is normal with every interface between 2 conducting surfaces. But in electronics testing, even little resistance differences measured in milliohms may lead to wrong pass/fail outcomes or hide genuine circuit faults. The contact resistance is unstable due to temperature changes, surface contaminants, and mechanical wear.

The design principles of short-stroke probes overcome these problems. The short amount of travel lowers the likelihood of probe misalignment during compression cycles. Probes with shorter strokes are more stable in place than those with greater travel when test fixtures are subject to heat expansion or mechanical stress.

The Relationship Between Stroke Length and Electrical Stability

Research into semiconductor testing applications has shown that the stability of contact resistance is influenced by the probe stroke length. Test findings reveal that the probes with 2mm strokes had 40-60% lower resistance fluctuation than the 5mm stroke ones when tested under the same scenario. The advantage is explained in terms of lower mechanical deflection and more uniform contact pressure distribution.

The physics underpinning this improvement is related to the material science and contact mechanics. When a probe compresses the spring a shorter distance, the spring has more linear force characteristics. This linear characteristic implies that every compression cycle provides almost exactly the same contact pressure, removing the resistance changes that longer springs have when they reach their limits of compression.

Technical Advantages of Short Stroke Test Probes

In addition to lower contact resistance, these specialised probes provide a variety of performance advantages that make them a natural choice for demanding testing applications. Understanding the benefits helps procurement teams make educated selections that match technical needs and financial limitations.

Enhanced Measurement Accuracy and Repeatability

The basis for successful test processes is measurement repeatability. When you are doing in-circuit testing on completed PCBs or wafer-level probing on semiconductor dies, the quality of your test system is determined by the consistency of the measurements.

Short stroke test probes with shorter strokes are more repeatable because of mechanical simplicity. A less-traveled path provides fewer possibilities for friction, binding, or spring hysteresis to induce unpredictability. Probes tested in the lab for 100,000 cycles retain contact resistance within ±3 milliohms compared to ±8-12 milliohms for typical designs. This tighter tolerance immediately enhances your capacity to spot marginal components, otherwise passing the examination.

The probes are especially good for high-density testing when many contact points need to be tested at the same time. Uniform force properties of short-stroke mechanisms make fixture designs with hundreds of probes more successful and ensure that contact is made at all test spots regardless of small differences in PCB flatness or fixture alignment.

Extended Operational Lifespan and Reduced Maintenance

The total cost of ownership is directly impacted by the lifespan of your equipment. Probes built to have 2mm working strokes usually last >5,000,000 compression cycles before they need to be replaced. This durability is obtained by reducing mechanical stresses at the spring element and the plunger barrel contact.

Shorter stroke probes displace less total material in every given compression cycle than longer options. Less displacement means less fatigue build-up in the spring material and less wear on barrel surfaces. The contact surfaces are nickel-plated to withstand oxidation and abrasion and to ensure low contact resistance over the operating life of the probe.

The longer the probe's lifetime, the less maintenance it requires. You have fewer unplanned fixture repairs and lower inventory carrying costs for replacement probes to support your test operations. The probe is easy to clean regularly using special probe cleaning paper, so it continues to work optimally. The probe should only be replaced after a set number of cycles or if microscopic examination indicates the surface is worn.

Superior Performance in High-Frequency Testing

Probes for RF and microwave application testing must support signal integrity across a broad frequency range. Short stroke designs may reduce parasitic capacitance and inductance, which can contaminate high-frequency readings. The small mechanical assembly decreases the electrical route length from the probe tip to the fixture contact, reducing insertion loss and increasing impedance matching.

Testing performed on RF assemblies up to 6 GHz demonstrates that these probes provide less than 0.2 dB of extra insertion loss compared to straight coaxial connections. Such performance allows precise characterisation of RF components, filters, and amplifier circuits, without the restrictions of the measuring method hiding the true device performance.

Temperature stability is another important requirement for precision testing. These probes are specified over the full -45°C to +80°C operating range for environmental chamber testing and elevated temperature stress testing. The beryllium copper plunger material exhibits minimal thermal expansion, ensuring contact force and electrical characteristics remain stable across this wide temperature spectrum.

Comparing Short Stroke Test Probes with Other Probe Types

Selecting appropriate probe technology requires understanding how different designs perform across various application requirements. Each probe category offers distinct advantages, making application-specific selection essential for optimizing test system performance.

Short Stroke Versus Standard Test Probes

Standard test probes typically feature stroke lengths between 3.5mm and 5mm, providing greater tolerance for fixture alignment variations and PCB warpage. These longer travel distances accommodate less precisely manufactured fixtures or testing scenarios where vertical positioning varies significantly across the test area.

However, this additional travel introduces the contact resistance variability discussed earlier. The longer spring compression path allows more opportunity for force inconsistency, particularly as probes approach maximum compression. Standard probes also generate higher impact forces during initial contact, potentially damaging delicate test pads or causing probe tip deformation over time.

Your application determines which design suits best. When testing rigid PCBs with precise fixture alignment and minimal board warpage, the performance advantages of shorter strokes outweigh the accommodation benefits of longer travel. Conversely, testing flexible circuits or boards with significant thickness variation may necessitate standard stroke lengths despite their performance trade-offs.

Comparison with Pogo Pins and Spring Probes

Pogo pins represent a simplified probe design incorporating a spring-loaded plunger within a tubular housing. These components offer cost advantages and simplified procurement but generally provide less precise contact force control compared to engineered test probes.

The key distinction lies in manufacturing precision and material selection. Dedicated test probes utilize tighter tolerances and premium materials optimized for electrical performance, whereas pogo pins prioritize cost efficiency. Contact resistance measurements typically show 20-40% higher and more variable readings with pogo pins under identical testing conditions.

Spring probes occupy a middle ground, offering better performance than basic pogo pins while maintaining reasonable cost structures. These probes work well for general-purpose testing where extreme precision isn't required, but high-reliability applications benefit from the superior characteristics that dedicated designs provide.

Compression Probes and Specialized Alternatives

Compression probes eliminate the spring element entirely, relying on fixture compression to establish contact. This design achieves excellent high-frequency performance and eliminates spring-related failure mechanisms, making it ideal for RF testing applications requiring maximum signal integrity.

The trade-off involves increased fixture complexity and higher sensitivity to compression tolerances. Fixtures must incorporate precise mechanical stops and alignment features to ensure consistent probe compression across all contact points. This precision increases fixture manufacturing costs and reduces tolerance for PCB thickness variation.

Your testing requirements guide probe selection. High-volume production testing of standardized products benefits from compression probe reliability and performance, while development testing across varied prototypes favors the flexibility that spring-loaded designs provide.

Procurement Considerations for Short Stroke Test Probes

The successful purchase of short-stroke test probes requires a balance of technical standards, supplier capabilities, and overall costs. By knowing these characteristics, you may choose components that are suitable not just for current demands but for long-term operating needs as well.

Critical Technical Specifications to Evaluate

The most important parameter impacting performance is contact force. Most PCB test applications may be satisfied with actuation pressures from 0.5N to 3N, depending on the pad metallisation and size. The smaller the test point, the less power you want to use to minimise damage. The bigger the pad, the more force you want to ensure positive contact through any contamination.

Stroke length has to be consistent with your fixture design and anticipated PCB variances. A 2mm stroke is usual for these probes and provides a bit of range for normal manufacturing tolerances while keeping the performance advantages described above. Verify that the stroke lengths chosen offer appropriate overtravel beyond first contact to accommodate fixture wear and board warpage.

Electrical specs are especially important for delicate measurements. Look for probes with defined maximum contact resistance, usually less than 50 milliohms for good components. Your test needs should be at least 50% higher than the current capacity to avoid heating the probe and premature wear.

Supplier Selection and Quality Assurance

You want to make sure you have trusted sources so that the quality of the components doesn’t vary and you can have them when you want them far into the future. Well-established manufacturers like Chuangyu, with vast expertise in electronics testing, may provide technical assistance to help you optimise your probe selection for your unique applications. Superior suppliers also differ from commodity vendors in the technical resources they provide, such as application notes, fixture design standards, and customisation possibilities.

Certifications and quality standards are the objective proof of manufacturing capabilities. Suppliers who have ISO 9001 quality systems show a commitment to process control and continual improvement. Request evidence of their probe testing procedures, including cycle life validation and electrical performance testing at the temperature ranges they provide.

After-sales assistance is critical when there are fixture integration or production test problems. Responsive technical support teams diagnose unexpected performance problems and offer remedial steps promptly. Warranty coverage and return policies are a reflection of supplier confidence in product quality.

Balancing Cost with Performance Requirements

Unit prices might vary greatly, depending on requirements, order numbers, and supplier location. High-end probes from reputable vendors cost more, but you get constant performance and stable supply chains. If inferior probes produce test errors or require frequent replacement, the savings in component-level costs might quickly evaporate.

Total procurement prices might be affected by minimum order numbers, especially for specialised setups. Standard probes usually have lower MOQs; however, specialised versions may need higher quantities. Weigh the benefits of bulk buying against the expenses of holding inventory.

Lead times affect project scheduling and inventory planning. Standard catalogue goods may arrive in days, whereas bespoke probes may take weeks to manufacture. Maintain safety stock of important probe types to minimise production delays while controlling total inventory investment.

Summary and Best Practices to Minimize Contact Resistance in Testing

Good operating methods combined with the right probe technology are the key to successful testing. Here are guidelines for you to get the best performance from the probes and minimise problems with contact resistance that impact the accuracy of readings.

Regular maintenance avoids a slow decline in performance. According to the environmental circumstances, after every 50,000-100,000 test cycles, the contamination from probe tips should be removed by using specific probe cleaning paper. Scheduled microscopic inspections identify wear patterns that need probe replacement prior to causing test failures.

Calibration processes are used to ensure the probe's measurement accuracy during its lifetime. Take initial measurements of the contact resistance of new fixtures and then regularly check these readings for tendencies of degradation. Record usual resistance values at various test sites so you can quickly detect an abnormal reading that may mean probe damage or contamination.

If the conventional probes do not quite meet your needs, work with vendors who are specialised and can provide customisation. The custom probe designs maximise performance for particular testing difficulties, whether it’s non-standard pad shapes, harsh temperature requirements or complex electrical specifications. Experienced manufacturers expedite fixture development and guarantee that the components work as expected.

These methods work together to provide reliable testing performance, decreasing false failures while still finding real flaws. Investment in quality probes and correct maintenance practices pays off in enhanced first-pass yield and decreased warranty risk.

Conclusion

The deliberate choice of short-stroke test probes to reduce contact resistance in electrical testing procedures is well worth the effort. Probes with shorter lengths to travel provide the robust, low-resistance connections you need for reliable measurements in demanding production conditions. Their longer life and lower maintenance needs lead to better business justifications than just pure technical performance factors."

Successful implementation entails reconciling technical specifications with application needs and operational limitations. The comparison frameworks and procurement recommendations here help make educated decisions to ensure the components selected are in line with the testing goals. Combining proper probe technology with disciplined maintenance and vendor agreements can position your testing operations for repeatable success and continual improvement.

FAQ

1. What contact resistance can I expect from quality probes?

Premium probes typically maintain contact resistance below 50 milliohms when new, with well-designed fixtures achieving 20-30 milliohm readings. Resistance increases gradually throughout the probe's lifespan but should remain below 100 milliohms until replacement becomes necessary. Regular cleaning and proper maintenance preserve optimal resistance values throughout the rated service life.

2. How do I determine the appropriate probe stroke length?

Calculate the required stroke by adding your expected PCB thickness variation, fixture manufacturing tolerances, and desired overtravel margin. Typical calculations suggest 2mm strokes accommodate ±0.3mm board variation plus ±0.2mm fixture tolerance, leaving 1.5mm effective compression. Verify calculations against actual fixture geometry before finalizing probe specifications.

3. Can these probes handle high-frequency testing?

Properly designed probes support testing frequencies into the gigahertz range with minimal signal degradation. The compact mechanical assembly reduces parasitic effects that compromise RF measurements. Specific frequency performance depends on probe geometry and fixture integration, with specialized RF probe designs available for frequencies above 6 GHz requiring optimized impedance matching.

4. What maintenance schedule should I follow?

Clean probe tips every 50,000-100,000 cycles using specialized cleaning materials that remove contamination without damaging plating. Perform microscopic inspection quarterly or after every 500,000 cycles to assess tip condition and detect early wear patterns. Replace probes approaching rated cycle limits or showing visible damage during inspection, maintaining documentation of replacement schedules for quality system compliance.

Partner with Chuangyu for Precision Testing Solutions

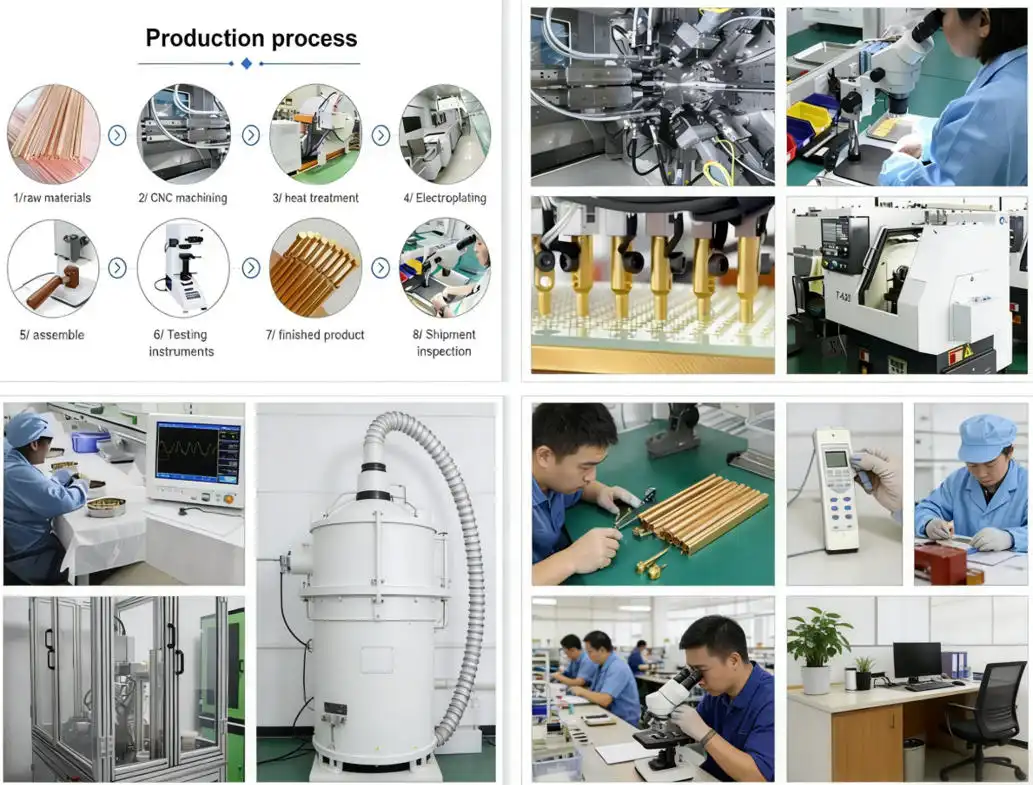

Shaanxi Chuangyu Electronic Technology delivers exceptional test probe solutions engineered specifically for demanding PCB and semiconductor testing applications. Our manufacturing expertise spans nearly two decades, combining advanced material science with precision manufacturing processes to produce probes meeting international quality standards.

Our compact design probes featuring 2mm working strokes and 5,000,000-cycle service lives provide the durability and performance your high-volume testing operations require. The beryllium copper construction with nickel plating ensures consistent contact resistance across the full -45°C to +80°C operating range, supporting both ambient and environmental chamber testing protocols.

Whether you need standard catalog items or customized probe solutions tailored to unique testing challenges, our engineering team provides comprehensive support throughout the specification, integration, and production phases. Contact our applications engineering team directly at chuangyuwz01@cymicrowave.com to discuss your testing requirements with experienced short-stroke test probe suppliers.
