How Does a 2.4 Female to 2.4 Male RF Cable Assembly Perform?

The 2.4 Female to 2.4 Male RF Cable Assembly provides excellent performance for mm wave applications and is a perfect choice for high-frequency RF interconnects. The precision-manufactured component provides impedance-matched transmission with its 50Ω architecture, providing signal integrity from DC to 50GHz with little insertion loss. The assembly is made of tough materials and sophisticated materials such as silver-plated copper conductors, PTFE insulation, and dual-layer shielding to get VSWR values of <=1.4:1 at 50GHz. It is compliant with IEC 61169-40 and is necessary for such test and measurement systems, satellite communications, defence radar, and medical imaging equipment where phase stability and minimal signal degradation are important.

What Is a 2.4 Female to 2.4 Male RF Cable Assembly and How Does It Work?

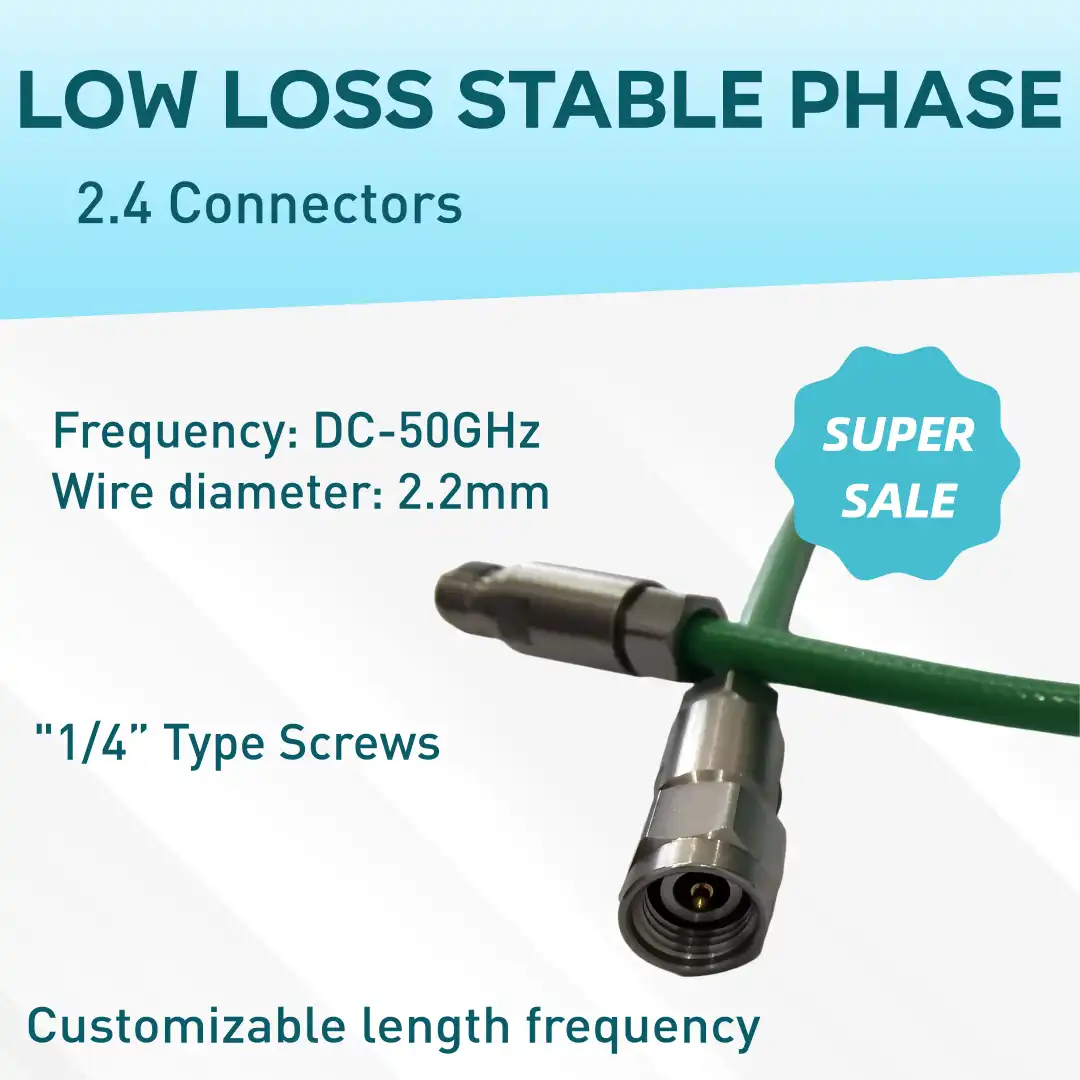

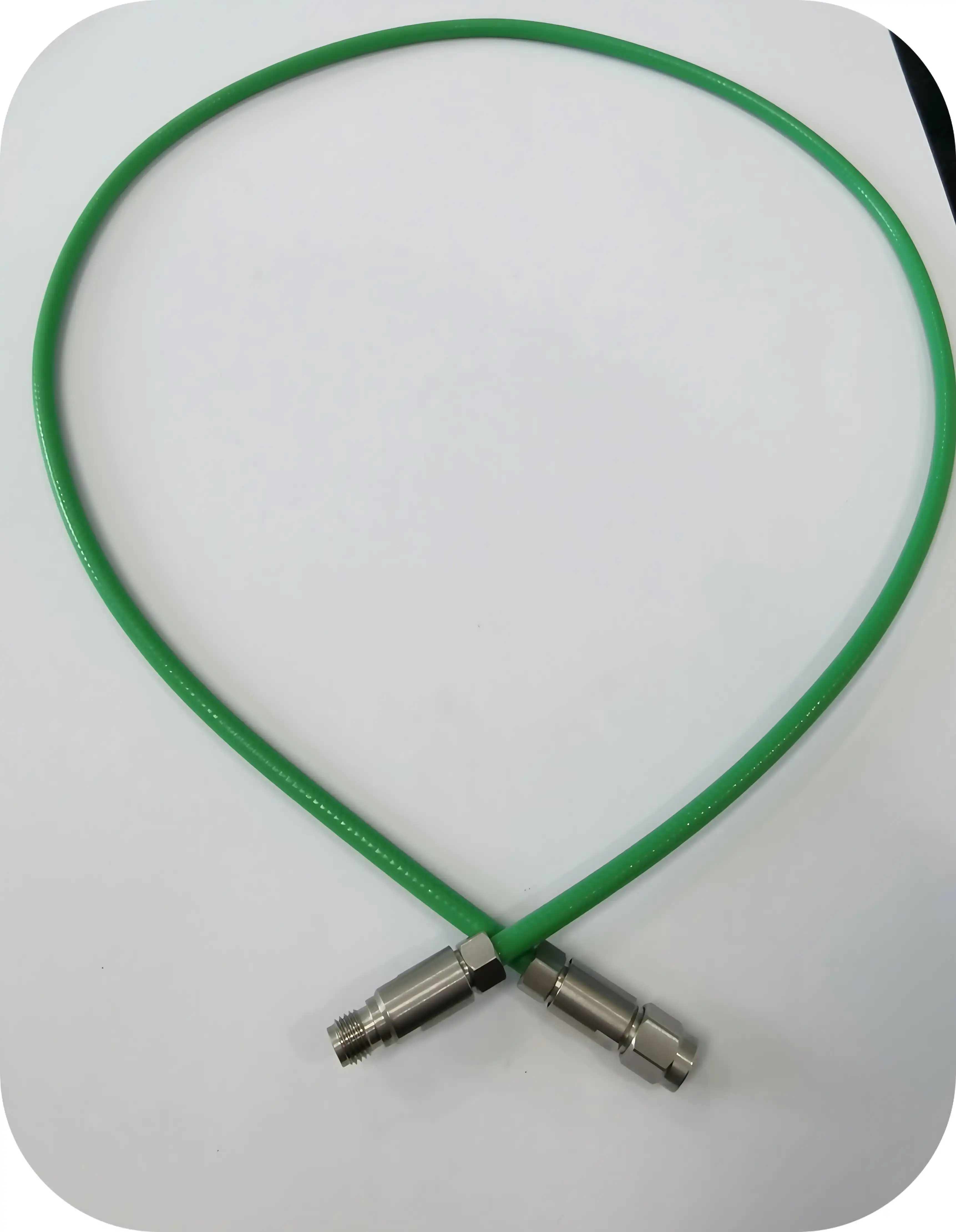

The 2.4mm connection series is a precision RF interface for mm-wave frequencies. A 2.4 Female to 2.4 Male RF Cable Assembly is comprised of two different connector genders, female (jack) and male (plug), and coupled by a low-loss coaxial cable, which maintains signal quality along the transmission length. The female connector has a central contact depression to take the male's projecting pin, providing a tight mechanical and electrical engagement, which is secured by a threaded coupling.

Structural Composition and Signal Transmission Principles

The core of this arrangement is the CXN3506 cable with a 0.50mm silver-plated copper conductor, which ensures resistive losses are minimised even at high frequencies. The insulating layer of the transmission line is made of low-density PTFE material, which is selected due to its low dielectric constant and thermal stability, so that it can be used for dependable transmission from DC to 40GHz without any signal distortion. The unique feature of this assembly is the double-layer shielding configuration, which is composed of a silver-plated steel foil wrap and a silver-plated copper wire braid, resulting in a shielding effectiveness of more than 100dB at 1GHz, so as to prevent the electromagnetic noise that could interfere with the sensitive millimeter-wave signals from entering the assembly.

The exterior sheathing of FEP (fluorinated ethylene propylene) is resistant to temperatures from -65°C to +165°C and chemical corrosion. Its cable diameter is under 2.20mm and its minimum bending radius is 3.6mm, enabling it to fit into tiny locations within test racks and equipment enclosures while maintaining full flexibility and durability.

Connector Design and Impedance Matching

The female and male connections are compliant with the IEC 61169-40 standards so that equipment from various manufacturers may be used together. The 50Ω impedance matching reduces signal reflections, which generate standing waves and measurement errors. The housings are made of stainless steel for mechanical robustness, and the gold/silver coated phosphor bronze contacts ensure reliable electrical performance for at least 500 mating cycles. The threaded coupling mechanism provides a robust, vibration-resistant connection needed for mobile platforms and high-vibration settings such as avionics and military vehicles.

Directly discussed are the ways in which these design decisions influence the assembly's phase stability and minimal insertion loss - both important criteria for characterising 5G components or calibrating spectrum analysers. The perfect mating of female and male contacts removes air gaps that would otherwise create capacitive discontinuities and reduce VSWR performance.

Key Performance Metrics and Technical Specifications

Procurement choices must be based on measurable performance data rather than marketing promises. Understanding the technical parameters of a 2.4 Female to 2.4 Male RF Cable Assembly can help you correctly match component capabilities to your application needs.

Impedance and VSWR Characteristics

The standard impedance for RF system design is 50Ω. This is used to minimise reflections when connected to test equipment, antennas, and amplifiers that are rated at the same characteristic impedance. The assembly has a maximum VSWR of 1.4:1 at 50GHz which indicates that very little signal power is reflected back to the source. Lower VSWR values are an indication of improved measurement accuracy in test and measurement applications and more efficient power delivery in communication systems.

Frequency Range and Insertion Loss

The cable part allows DC to 40GHz transmission, and the 2.4mm connections expand the operating capabilities to 50GHz. The enlarged frequency range makes the assembly ideal for developing millimeter-wave applications like satellite communication at Ka-band and automobile radar at 77GHz (when utilised within proper frequency sub-bands). Because of the silver-plated conductor and low-loss dielectric, the signal attenuation does not affect the link budgets in the multi-stage RF chains owing to the low insertion loss.

Power Handling and Environmental Ratings

The assembly is rated at 150W at 1GHz and can handle up to 500Vrms, providing enough power management for most laboratory and field applications. Its temperature range (-65°C to +165°C) exceeds military standards and harsh climates, and the dual-layer shielding ensures performance even when routed near high-power motors or switching power sources that emit wideband noise.

Mechanical Durability and Lifespan

The assembly has an expected lifetime of at least 500 plug cycles and is therefore suitable for both permanent installations and for test settings where frequent reconfiguration is needed. The 2.20mm cable diameter and 3.6mm bend radius are small enough to route around packed equipment racks without risking damage to the wire or producing stress spots that might affect electrical performance over time.

Understanding these specs will assist in preventing you from running into traps like operating beyond the rated frequency or power that might cause premature failure or measurement mistakes during important testing stages.

Comparing 2.4 Female to 2.4 Male RF Cable Assemblies with Other RF Connectors

The RF connection market has a large number of possibilities, and procurement teams typically have a hard time distinguishing between similar-appearing items. Comparing the 2.4mm interface with the alternatives makes it easy to see when this assembly gives the greatest value.

2.4mm Female-to-Male vs. Male-to-Male Assemblies

The main difference is that they can not mate with each other. A 2.4 Female to 2.4 Male RF Cable Assembly is a typical cable jumper connecting directly to equipment ports of different genders. Male-to-male assemblies, however, need adapters or gender changers to mate with most test equipment, which introduces insertion loss and points of reflection that reduce measurement accuracy. The direct connections between the instrument and the device under test are female-to-male. This is preferred by engineers to reduce the uncertainty in the calibration operations.

Material Quality and Manufacturer Certifications

Not all cable assemblies function the same even with the same connector interface. Top manufacturers, such as Chuangyu, employ stainless steel housings and gold/silver plated contacts, instead of the more common brass or nickel-plated contacts, which are more susceptible to corrosion and have greater contact resistance. This immediately affects phase stability and high-temperature performance, since PTFE is chosen over cheaper polyethylene dielectrics. During evaluation, ensure that the supplier meets international standards like IEC 61169-40 and ISO 9001 quality management systems.

Certified components undergo extensive testing, including VSWR sweeps over the complete frequency range, mechanical retention force tests, and environmental stress screening. These quality controls help maintain consistency from batch to batch and reduce the chances of any field failures that may interrupt production schedules or affect the dependability of the system.

Compatibility with 1.85mm Interfaces

The 2.4mm connection family is both mechanically and electrically compatible with 1.85mm (V-connector) interfaces, offering migration pathways for systems developed around the higher-frequency standard. But when mating various kinds of connectors, the procurement teams have to check the dimensional tolerances, since the wrong fit might harm the precision contacts and invalidate warranties. This cross-compatibility increases the usable life of test rigs, enabling incremental updates without the need to replace whole wire inventories.

The appropriate assembly is a trade-off between your performance needs, your budget, and the flexibility to expand your system in the future. The 2.4 Female to 2.4 Male RF Cable Assembly is the best combination of frequency capabilities, durability, and cost efficiency for applications from 1GHz to 50GHz.

Procurement Considerations for Global B2B Buyers

Comparing datasheets and prices is not enough to get high-frequency cable assemblies. Global procurement teams should consider supplier competencies, lead times, customisation choices, and after-sales support to avoid supply chain risks.

Identifying Reliable Suppliers and Manufacturers

We propose you work with manufacturers that have a wealth of RF technical experience and state-of-the-art manufacturing facilities. Chuangyu’s Xi’an production center is 1,000 square meters and combines precision machining, assembly, testing, and storage all in one place. Vertical integration decreases more than 20% of lead times compared to distributors with outsourced manufacturing. Steady supply even during demand peaks with a continuous availability of 500,000 RF components per year.

Ask possible suppliers for sample test data, including complete two-port S-parameter measurements across the appropriate frequency range. Manufacturers must provide traceability documentation that links each assembly to calibration data and quality inspection findings. This openness is crucial when aiding aeronautical, medical, or military projects that are undergoing regulatory assessments.

Custom Specifications and Minimum Order Quantities

Standard catalogue lengths may not fit every installation. Custom cable lengths, other connection angles (straight vs. right-angle), and specific wrapping materials for severe applications are available from leading manufacturers. The technical team at Chuangyu engages with customers in the creation of non-standard probe and cable solutions for unique test fixture or equipment form factors.

The minimum order quantity is usually between 10 and 100 pieces, depending on the intricacy of the lead times by more than 20%and validation for custom assemblies take 4-6 weeks. Production runs are scalable to the project’s demands. These timescales allow procurement cycles to be planned to avoid schedule delays during system integration stages.

Evaluating Warranty and Technical Support

Full warranty coverage protects against manufacturing flaws and early wear. Look for vendors with a minimum 12-month warranty and replacement plans to save downtime. Equally vital is access to application experts to solve installation difficulties, propose testing techniques, and optimise cable routing for particular situations.

Chuangyu offers continuous technical support via email at chuangyuwz01@cymicrowave.com, and comprehensive product manuals can be found on its website, cymicrowave.com. This is where actual makers of RF wire assemblies distinguish themselves from generic wholesalers that do not have the subject knowledge.

Certifications and Compliance

Regulated industry projects need components that fulfil certain specifications. Make sure your supplier has an ISO 9001 certification for quality management and can give reports on the material composition for RoHS and REACH compliance. Defence contractors may need to provide MIL-STD-202 certification data for salt spray corrosion, thermal shock, and vibration resistance.

Auditing risk is reduced by sourcing from certified suppliers, and components are guaranteed to function reliably as per contractual commitments. The certifications also reflect the manufacturer’s dedication to continuous improvement and process control, both of which correspond to long-term product quality.

Maintenance Tips and Testing Procedures for Optimal Performance

Even the best cable assemblies will deteriorate if not properly cared for. Routine maintenance and testing procedures increase the service life and avoid unforeseen breakdowns for important activities.

Proper Handling During Installation

Do not pull on the cable body while mating or unmating connections. Always pull on the connector housing. Rotate the threaded coupling until completely engaged and seat contacts with mild pressure - do not force. Tugging on the cable stresses the conductor-connector junction and may break internal solder connections or move the center pin. These mechanical faults result in sporadic connections or a total loss of signal.

When routing the cables, observe the minimum bending radius of 3.6 mm. Sharp bends provide impedance discontinuities that stress the dielectric and conductor and increase VSWR and insertion loss. For outdoor installations, waterproof sealing boots are required. Ingress of moisture results in corrosion of contacts and increased dielectric loss tangent.

Environmental Precautions

Keep wires away from high-power motors, variable-frequency drives, and switching power sources that generate electromagnetic interference. Even with 100dB shielding efficacy, long-term exposure to high levels of EMI sources may couple noise into the signal channel via connector gaps or faulty ground connections. Keep at least 15cm distance from potential interference sources if feasible.

Storage conditions have a big role in the long-term dependability. Store assembly in a temperature-controlled environment between -10°C and +35°C with 40-60% relative humidity. FEP sheathing, when exposed to direct sunshine, will deteriorate over time and become brittle and break. Loop the wind cables on diameters not less than twice the required bend radius. Fit protective covers on any unused connections to keep out dust and moisture.

Routine Cleaning and Inspection

Every 3 months, check connection threads and center pins for wear, corrosion, or plating damage. For contacts, use cotton swabs gently wet with anhydrous ethanol. Do not use abrasive materials or chemicals that harm gold plating. Allow connections to air-dry fully before connecting to prevent entrapment of residual moisture.

Check the cable sheaths for any cuts, abrasions, or compression marks that may affect the shielding layer. Minor damage may be temporarily sealed with specialised RF-grade self-fusing silicone tape, although badly damaged assemblies should be replaced rather than fixed. Degradation of the shield causes the leakage of the signal, intrusion of external interference, and loss of measurement precision.

Performance Testing and Calibration

Network analysers give the most complete evaluation of cable assembly health. Perform thorough two-port S-parameter measurements from DC to your maximum operating frequency every six months. Compare outcomes to baseline data taken when the assembly was fresh. Increased insertion loss (S21) or return loss (S11) indicates growing difficulties such as oxidised connections or dielectric deterioration.

VSWR meters provide a simpler solution for periodic inspections. If you measure a VSWR greater than 1.5:1 at any frequency within your working band, check for possible reasons such as loose connections, dirty contacts, or mechanical damage to the cable. Annual thorough calibrations are conducted for mission-critical applications such as satellite communications or military radar to guarantee that the assemblies satisfy original specifications.

Maintain a configuration management database with all test results and maintenance. This historical information helps to determine failure patterns, optimise replacement schedules and offer audit trails for quality management systems.

Real-World Applications Across High-Tech Industries

The adaptability of the 2.4 Female to 2.4 Male RF Cable Assembly covers various industries where high-frequency signal integrity directly affects product performance and business results.

Test and Measurement Equipment Integration

Precision cable assemblies are key to maintaining the calibration accuracy of vector network analysers, spectrum analysers, and signal generators. During semiconductor wafer probing or 5G component characterization, measurement errors must stay below 0.1dB—a threshold only feasible with low-VSWR interconnects.  The 2.4mm interface's frequency capacity to 50GHz serves increasing millimeter-wave test needs without needing expensive equipment changes.

Defense and Aerospace Systems

Phased array radars, electronic warfare systems, and airborne early warning platforms necessitate cable assemblies that tolerate severe temperatures, vibration, and EMI while preserving phase-matched signal routes.  The assembly's -65°C to +165°C rating and strong shielding fulfil MIL-STD environmental standards, assuring dependable operation in jet fighters, unmanned aerial vehicles, and ground-based air defense systems.  Threaded coupling eliminates unintentional separation during high-G maneuvers or weapon fire.

Satellite and Millimeter-Wave Communications

The reduced insertion loss and phase stability of the assembly are an advantage to ground station equipment and point-to-point radio communications working at over 40GHz. In satellite uplink/downlink chains where every 0.1dB of loss impacts link margin, premium cable assemblies directly influence system availability and data performance.  The small form factor simplifies antenna feed networks when space restrictions limit cable routing possibilities.

Medical Imaging and Research Instrumentation

MRI systems and modern medical diagnostics depend on RF components with remarkable phase stability to provide good pictures.  Quantum computing research needs ultra-low-noise signal pathways to sustain qubit coherence.  The 2.4 Female to 2.4 Male RF Cable Assembly is designed with exacting standards in mind, precise production, and high-purity materials to enable advancements in healthcare and basic physics research.

These applications have comparable requirements of uncompromising signal quality, long-term durability, and compatibility with precise equipment. Understanding how your individual use case relates to these industry examples will help illuminate procurement objectives and performance expectations.

Conclusion

Selecting the correct RF cable assembly is a balancing act between technical standards, supplier dependability, and total cost of ownership. 2.4 Female to 2.4 Male RF Cable Assembly Wide frequency coverage (DC to 50GHz) Low VSWR (≤1.4:1) Rugged construction Proven performance in defence, telecommunications, medical and test equipment applications. By knowing the structural elements from silver-plated conductors to dual-layer shielding and adopting suitable maintenance practices, procurement teams can maximise system uptime and measurement accuracy. Working with experienced manufacturers, together with customisation, rigorous testing, and continuing technical support, minimises supply chain risks and ensures the components match the stringent requirements of current RF systems.

FAQ

1. What frequency range does the 2.4 Female to 2.4 Male RF Cable Assembly support?

The cable portion supports DC to 40GHz, while the 2.4mm connectors extend operational capability to 50GHz. This range covers most millimeter-wave applications, including 5G, satellite communications, and automotive radar systems.

2. Can this assembly mate with 1.85mm connectors?

Yes, the 2.4mm connector family maintains mechanical and electrical compatibility with 1.85mm interfaces. However, confirm dimensional tolerances with your supplier to avoid damaging precision contacts during mating, as minor size variations between manufacturers can affect fit.

3. How do I verify that a cable assembly meets performance specifications?

Request S-parameter test data from the manufacturer covering your full operating frequency range. Measure VSWR and insertion loss using a calibrated vector network analyzer, comparing results against the datasheet specifications. Reputable suppliers provide traceable calibration certificates with each assembly.

4. What is the expected service life under typical laboratory conditions?

With proper handling, the assembly supports at least 500 mating cycles and can operate for five years or more in controlled environments. Harsh conditions—extreme temperatures, high vibration, or corrosive atmospheres—may reduce lifespan, necessitating more frequent inspections.

Partner with Chuangyu for Your High-Frequency Interconnect Needs

Finding a trusted 2.4 Female to 2.4 Male RF Cable Assembly supplier who understands millimeter-wave engineering challenges makes the difference between project success and costly delays. Shaanxi Chuangyu Electronic Technology specializes in precision RF components up to 110GHz, backed by ISO 9001-certified manufacturing and nearly two decades of industry expertise. Our Xi'an facility delivers custom cable lengths, specialized configurations, and rapid prototyping tailored to your exact specifications. Engineers value our comprehensive technical support and rigorous testing protocols that guarantee consistent performance. Contact our team at chuangyuwz01@cymicrowave.com to discuss your application requirements, request sample assemblies with full test data, or explore custom solutions for demanding test and measurement environments.
