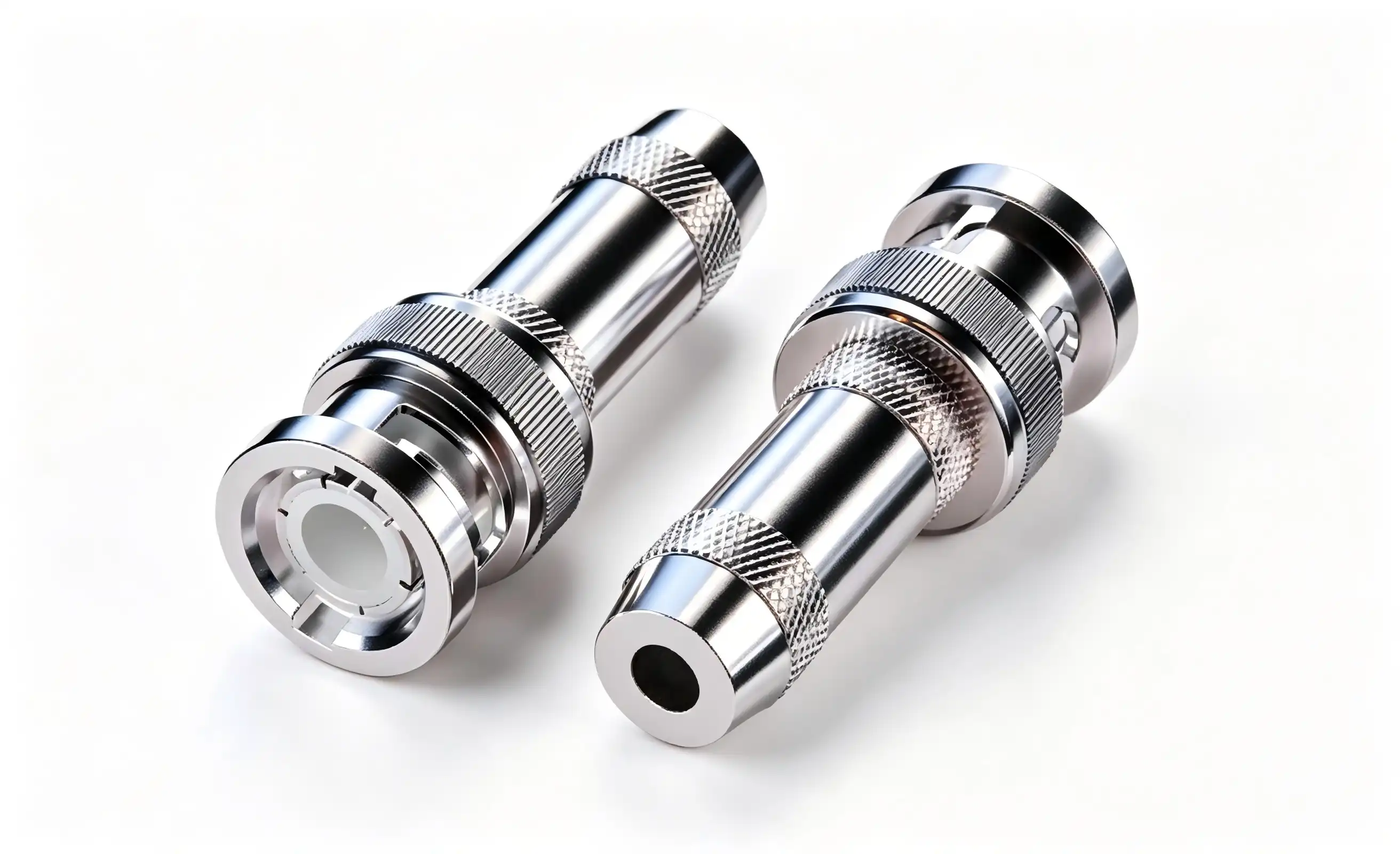

BNC to RF connector: What Should You Check Before Buying?

The stakes are greater than most purchasers realise when selecting a BNC to RF connector. Making the incorrect decision results in signal deterioration, unsuccessful compliance audits, and expensive rework. A BNC to RF connection, which supports impedance choices of 50Ω or 75Ω over frequency ranges from DC to 4 GHz, acts as the electrical and physical link between coaxial cable systems and RF equipment. Verifying requirements, material quality, supplier trustworthiness, and installation support prior to placing an order will safeguard your project's budget and schedule.

Understanding BNC to RF Connectors: Basics and Key Specifications

The BNC (Bayonet Neill–Concelman) connector has been an industry standard since the 1940s. Its bayonet-style coupling mechanism delivers fast, secure mating without tools, which is why test engineers and hardware designers continue to rely on it across laboratory and field environments.

There are two types of BNC to RF connectors: 50Ω and 75Ω. While the 75Ω version is intended for video broadcast and telecommunications, the 50Ω version is suitable for RF and microwave transmission in test equipment, communications gear, and defence electronics. Reflections and VSWR deterioration result from combining impedances on the same signal route. The majority of precision measurement and communications applications are satisfied by Chuangyu's BNC RF connections, which have a VSWR of 1.3:1 and support a frequency range of DC to 4 GHz.

Mechanical Design and Signal Transmission Principles

A high-quality BNC to RF connector's bayonet coupling mechanism allows quarter-turn locking with an audible click, ensuring a reliable, secure connection. While the outer shell offers 360° protection, the central contact maintains constant electrical contact with the inner conductor of the wire. A crucial durability parameter for automated production equipment and high-turnover test benches, Chuangyu's connections are certified for up to 500 mate/demate cycles.

Comparing BNC to RF Connectors: Choosing the Right Type for Your Needs

Not every RF coaxial connector suits every application. Understanding how a BNC RF connector stacks up against SMA, N-Type, and F-Type alternatives prevents costly mismatches during system integration.

BNC vs. SMA, N-Type, and F-Type Connectors

SMA connections are recommended for millimeter-wave and microwave systems because they can work at frequencies of up to 18 GHz and higher. Up to 11 GHz, N-Type connections can withstand severe outdoor conditions and greater power. F-Type connections are designed specifically for 75Ω satellite and cable television systems. By being more durable than SMB push-on connections, quicker to mate than threaded SMA, and more adaptable to both lab and field use scenarios than the F-Type, the BNC RF connector occupies a useful middle ground.

Cable Compatibility and Material Durability

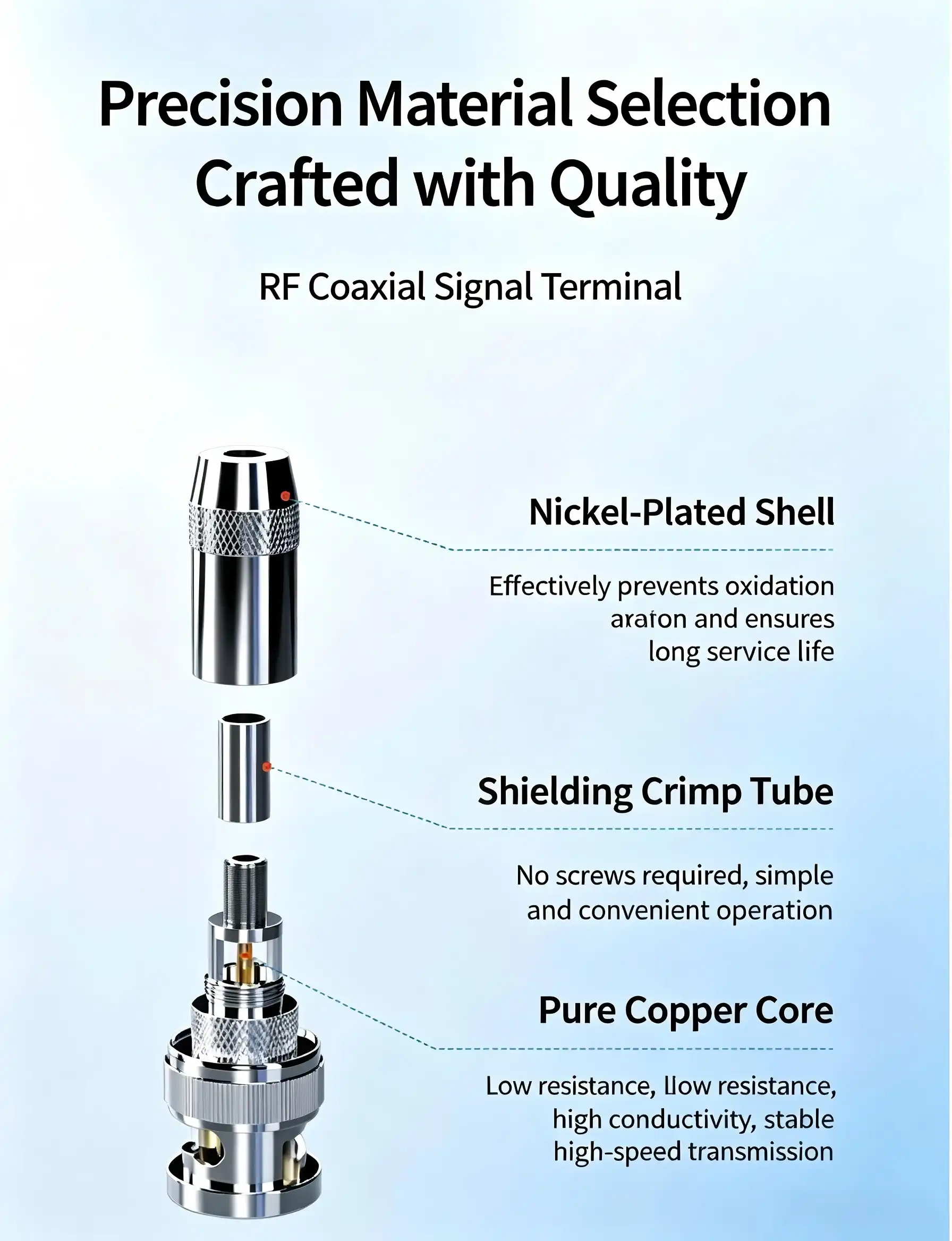

The coaxial cable that a BNC to RF connection ends must match the connector. RG-58 (50Ω), RG-59 (75Ω), RG-179, and RG-187 are typical compatible cables. Corrosion resistance and conductivity are impacted by the materials of the connector body, which are usually brass with nickel or gold plating. For exceptional flexibility, Chuangyu employs heat-treated beryllium copper center contacts. The connections function dependably in a temperature range of -55°C to +125°C. Because of this, they may be used in outdoor communication, automobile, and aerospace settings where temperature stress is a major issue.

The impedance, frequency ceiling, cable gauge, and environmental exposure of your system should always be taken into consideration when selecting a BNC to RF connector. Most compatibility problems in the field are eliminated by matching these four factors prior to purchase.

Essential Factors to Check Before Purchasing BNC to RF Connectors

RF coaxial connection procurement choices have both financial and technical ramifications. Before committing to a supplier, buying managers and R&D engineers should confirm these fundamental assessment criteria.

Long-term dependability and total cost of ownership are directly impacted by the following factors:

• Verify the datasheet to make that the connector's working frequency, insertion loss, and rated VSWR meet the needs of your system. To maintain signal quality over long cable lengths, Chuangyu's BNC RF connectors provide minimal insertion loss and VSWR ≤1.3:1 up to 4 GHz.
• Certifications and compliance: IEC 60169-8 interface dimensions requirements and MIL-STD-202 environmental testing serve as quality benchmarks. Standard QC procedures at Chuangyu include 500-cycle mechanical durability tests and salt spray testing (48–96 hours according to MIL-STD-202 Method 101).
• The discipline of impedance matching requires that 50Ω connections be used with 50Ω cable systems and 75Ω connectors with 75Ω video equipment. Significant signal reflection and a decline in transmission quality are caused by cross-impedance mismatches.
• Channels for procurement and bulk pricing: Determine if the provider can fulfill your delivery schedule and provide tiered pricing for large purchases. With an annual output of 500,000 RF components, Chuangyu's Xi'an manufacturing base enables large-order fulfilment without lead-time fluctuation.
• Connector lifespan and upkeep: On active test benches, a connector rated for 500 mate/demate cycles lowers replacement frequency and downtime.

Together, these elements lower the chance of signal integrity issues after deployment and safeguard your procurement investment. Rework expenses sometimes surpass the initial connection expenditure when even one verification step is skipped.

Installation and Technical Support: Ensuring Seamless Integration

Even a premium BNC to RF connector delivers suboptimal performance if installed incorrectly. Termination technique, environmental sealing, and post-installation verification are all variables that affect long-term signal quality.

Termination Best Practices

Always use a specialised crimping tool calibrated to the cable's requirements when utilising crimp-style termination. Under-crimping results in sporadic contact, while over-crimping harms the dielectric layer of the cable. To safeguard the insulating medium and connection plating during solder-style termination, regulate the temperature and dwell duration. When connecting, make sure the bayonet gap is aligned before pressing, then spin the device a quarter of a turn until the lock clicks. The bayonet pins will be deformed if a rotating force is applied prior to axial alignment.

Troubleshooting Signal Loss and Interference

Check the center contact seating depth and the crimp ferrule location if you see unusual VSWR spikes or insertion loss after installation. Weatherproof sealing kits are necessary for outdoor installations in order to stop moisture intrusion, which leads to interface corrosion and ultimately short-circuit failure. Instead of needlessly changing complete cable assemblies, Chuangyu's technical staff assists clients with post-installation diagnostics, assisting engineers in promptly identifying underlying issues.

The speed at which your manufacturing line recovers from integration problems is directly influenced by responsive supplier technical assistance.

Making the Final Decision: How to Choose the Best BNC to RF Connector for Your Business

A methodical evaluation is necessary to match connection characteristics with your operating environment and financial constraints. BNC RF connections from Chuangyu are designed for businesses where accuracy, robustness, and legal compliance are essential.

Chuangyu provides services to defence contractors, automation system integrators, solar equipment makers, medical device manufacturers, and semiconductor testing firms. Applications ranging from network analyser calibration to MRI signal processing boards, where mechanical dependability and electromagnetic shielding prevent signal artefacts during equipment operation or patient mobility, are supported by the connections.

With its 800 m² manufacturing workshop, 200 m² R&D laboratory, and integrated quality assurance framework, Chuangyu's production base in Xi'an offers consistent product quality with order response cycles more than 20% faster than the industry average for procurement managers managing both cost and compliance.

Conclusion

Impedance, frequency range, material quality, installation technique, and supplier dependability are all important considerations when choosing a BNC to RF connector. Most industrial and laboratory applications are covered by a connection with a VSWR 1.3:1 rating, enabling DC to 4 GHz, 500-cycle mechanical durability, and MIL-STD-202 compliance. Signal integrity and procurement budgets are safeguarded by confirming datasheets, certifications, and supplier capability prior to purchase. Precision-engineered RF coaxial connections from Chuangyu are designed to satisfy these requirements in a variety of industrial verticals, including medical imaging and communications.

FAQ

What is the difference between a 50Ω and a 75Ω BNC RF connector?

A 50Ω connector is designed for RF signal transmission in communications, test instruments, and defense electronics, where power handling and minimal reflection matter. A 75Ω connector is optimized for video broadcast and telecommunications where voltage sensitivity is the priority. Mixing the two on the same cable run causes impedance mismatch, signal reflection, and VSWR degradation.

What cables are compatible with a BNC to RF connector?

Common compatible cables include RG-58 for 50Ω systems and RG-59, RG-179, and RG-187 for 75Ω applications. Always verify the cable's outer diameter and impedance before selecting a connector.

How do I verify the quality of a BNC RF connector before purchasing?

Request a datasheet confirming VSWR, insertion loss, frequency range, and mechanical cycle rating. Reputable suppliers provide evidence of MIL-STD-202 environmental testing and dimensional compliance with IEC 60169-8.

Can BNC RF connectors handle outdoor environments?

Yes, provided you use weatherproof sealing kits at the interface. Chuangyu's connectors operate reliably from −55°C to +125°C, making them suitable for outdoor communications and aerospace applications.

What is the typical mating cycle life of a quality BNC connector?

A well-manufactured BNC to RF connector supports up to 500 mate/demate cycles, which is adequate for active test benches and field service applications.

Partner with Chuangyu for Your BNC to RF Connector Supply

Chuangyu stands as a trusted BNC to RF connector manufacturer with nearly two decades of precision manufacturing experience and an annual production capacity of 500,000 RF components. Our connectors cover DC to 4 GHz, deliver VSWR ≤1.3:1, and comply with MIL-STD-202, supporting industries from semiconductor testing to medical imaging. Whether you need standard configurations or custom non-standard solutions, our engineering team is ready to support your procurement from specification to delivery. Contact us at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request a quote today.

References

1. Amphenol RF. RF Connector Design and Application Guide. Amphenol Corporation, 2021.

2. Pozar, David M. Microwave Engineering, 4th Edition. Wiley, 2012.

3. IEC 60169-8. Radio-Frequency Connectors — Part 8: BNC Series. International Electrotechnical Commission, 2020.

4. MIL-STD-202H. Test Methods for Electronic and Electrical Component Parts. U.S. Department of Defense, 2015.

5. Straw, R. Dean (Ed.). The ARRL Handbook for Radio Communications. American Radio Relay League, 2022.

6. TE Connectivity. Connector Selection and Signal Integrity in High-Frequency Applications. TE Connectivity Technical Library, 2020.
