How to Choose the Best SHV Jack for High-Voltage Testing

Choosing the right SHV jack for high-voltage testing requires evaluating voltage ratings, insulation materials, mechanical durability, and frequency performance. A proper SHV jack — formerly known as a Safe High Voltage connector — must handle up to 3.5kV RMS AC or 5kV DC while maintaining 50-ohm impedance and reliable signal integrity. Whether you work in nuclear instrumentation, medical diagnostics, or electronic test equipment, matching your connector's specifications to your application prevents dielectric failure, protects personnel, and ensures measurement accuracy across demanding environments.

Understanding SHV Jacks and Their Role in High-Voltage Testing

An SHV jack is part of the family of bayonet-coupled RF coaxial connectors. It is the female interface in high-voltage signal transmission systems. It is different from normal connections like BNC or N-type in that it has a recessed center contact. They mate the outer conductor first, then the inner conductor. This is designed so you don't get an accidental high-voltage shock while plugging in or unplugging. Standard MHV connections don't have this protection, making the SHV jack a better alternative when operator safety isn't negotiable.

The dielectric strength of the PTFE insulating medium of the connection is more than 5kV RMS, ensuring consistent electrical isolation between -45°C and 125°C. Cable compatibility is RG-174, RG-316, RG-188A, and LMR-100, offering engineers flexibility in system design. Insulation resistance is above 5000 MΩ, ensuring long-term durability in continuous-duty laboratory and industrial applications.

Typical application areas include high-voltage RF signal generators, spectrum analyzers, nuclear detectors, particle accelerators, X-ray imaging systems, RF ablation medical devices, and airborne high-voltage electronic payloads. All of these situations necessitate continuous coaxial impedance — maintained at 50 ohms — and accurate signal quality up to 300MHz.

Key Criteria for Choosing the Best SHV Jack for Your Needs

Voltage Rating, Insulation, and Frequency Alignment

Selecting a safe high-voltage connector starts with one straightforward question: does the rated voltage match your system's operating voltage? Your equipment must not exceed the connector's rated ceiling of 3.5kV RMS AC or 5kV DC. Operating beyond these thresholds risks insulation breakdown and component damage.

Here are the core technical criteria every procurement engineer should verify before purchasing:

• Voltage headroom: Confirm that your system's peak operating voltage stays below the connector's rated limit, with a reasonable safety margin built in.
• Insulation material: PTFE (polytetrafluoroethylene) outperforms standard polymer insulators in thermal stability and dielectric strength, especially in environments above 85°C.
• Impedance consistency: A 50-ohm characteristic impedance is mandatory for minimizing signal reflections in RF measurement chains.
• Frequency ceiling: For most laboratory and industrial applications, 300MHz covers standard needs; select connectors rated to 2GHz if your system demands wider bandwidth.
• Contact plating: Gold-plated center contacts maintain contact resistance at < 2 mΩ, reducing signal attenuation and heat generation under sustained high-voltage load.

These criteria collectively define whether your SHV jack will perform accurately over thousands of mating cycles. Overlooking any one of them introduces risk — not just to signal quality, but to personnel and instrumentation.

Market Solutions and Procurement Insights for SHV Jacks

There’s seldom one variable in procurement selections for high-voltage RF connections. In addition to the connector’s data sheet, buyers need to check the dependability of the supplier, the lead time, the flexibility to customize, and the post-sales assistance. Standard SHV jack solutions are appropriate for applications that can use standard voltage ratings and cable designs. Custom connectors are the solution for systems requiring non-standard cable connections, unusual housing geometries, or stricter dimensional constraints.

Bulk pricing structures and minimum order quantities vary widely across SHV jack manufacturers and SHV jack suppliers. Establish open communication on delivery schedules, especially on aerospace and medical projects where component delays translate into project overruns. A supplier’s trustworthiness is just as important as the product specification itself. A firm that has certified quality processes, verifiable raw material sourcing, and documented test records offers a level of procurement trust that a low-cost distributor with no technical assistance can not match.

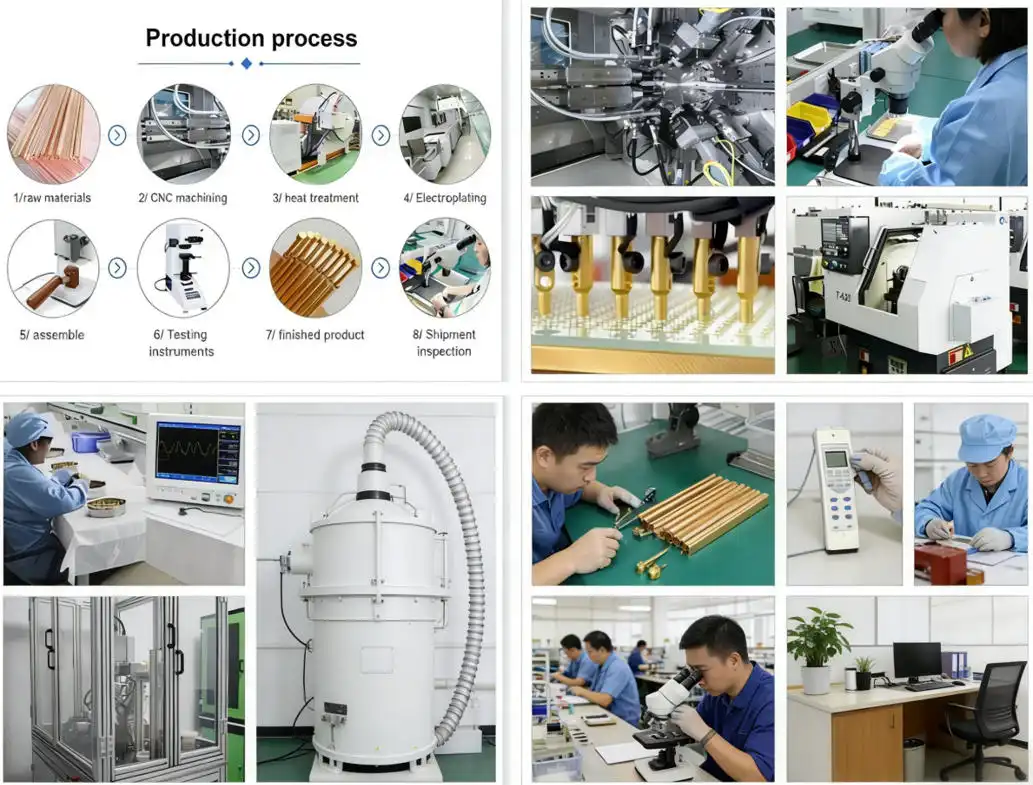

Also worthy of consideration is supply chain continuity. Sole-sourcing a vital connection to a supplier with limited manufacturing capacity introduces program risk. Chuangyu is capable of producing 500,000 RF components per year and has specialized lines for coaxial connections, providing steady supply fulfillment even in high-demand periods.

Technical Comparison and Performance Evaluation of SHV Jacks

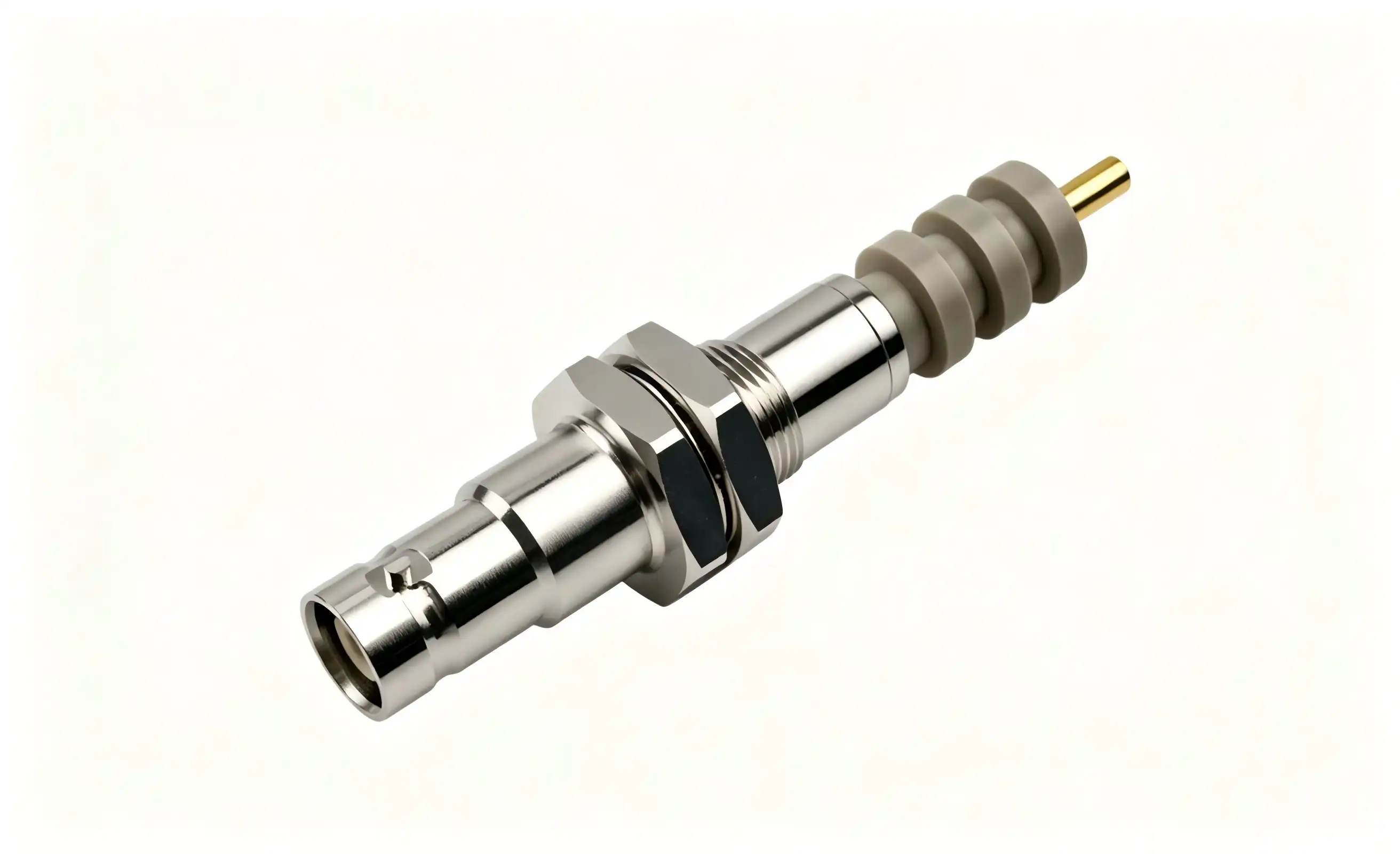

A SHV jack can be trusted to keep its electrical properties under mechanical stress, heat cycling, and corrosive environments. The outside enclosure is nickel-plated brass, a compromise between mechanical strength and resistance to corrosion. The housing has a knurled finish for an anti-slip effect and for safe manual operation even in gloved conditions.

The bayonet locking mechanism – quarter-turn engagement with audible confirmation – is vibration-resistant, vital for aviation and industrial-grade applications. Shock and prolonged vibration are cases when this locking arrangement is better than threaded interfaces.

The VSWR performance is steady up to 300MHz from a signal integrity point of view, ensuring high-voltage RF test signals reach the device under test without distortion. The tight tolerance on the coaxiality following cable assembly reduces the danger of signal reflection at the connector/cable junction. The contact resistance of < 2 mΩ means that the connection provides very little attenuation to the total transmission route.

A professionally designed high-voltage coaxial connection will normally have maintenance intervals based on a 12-month performance test cycle. “Engineers should check insulation resistance, withstand voltage, and standing wave ratio on an annual basis.” Connectors with insulation resistance less than 1TΩ or VSWR more than 1.5 should be replaced immediately.

Making the Final Decision: Matching SHV Jack Solutions to Your Business Needs

“Where you sit in the supply chain will determine the ideal SHV jack solution.” OEM firms that are incorporating high-voltage connections into production assemblies need dimensional uniformity, plating durability, and volume pricing. Test facilities with calibration cycles require connections with closely regulated impedance and confirmed dielectric strength. System integrators engaged in one-off projects typically need unique cable assemblies with non-standard termination arrangements.

Chuangyu considers the three cases. The firm has been producing RF components for about 20 years and has its own dedicated R&D laboratory, designing and manufacturing specialized non-standard high-voltage connections that are designed to meet the particular application requirements. Products fulfill international quality requirements and are used in local and foreign markets for nuclear instrumentation, medical imaging, photovoltaic testing, and aerospace settings.

The vendors are also differentiated by their after-sales assistance and warranty conditions. A responsive technical staff can help you pick connectors, guide you through installation, and resolve problems, minimizing the chance of expensive field failures. Evaluate your potential SHV jack supplier not only on cost, but on the proven ability to assist your program from prototype to production.

Conclusion

Choosing a high-voltage SHV jack connection is a technical decision, not an educated guess. Check voltage ratings, make sure the insulating material is of good quality, check mechanical durability, and coordinate frequency specs with your real test environment. With recessed contact design, PTFE insulation, and gold-plated conductors, the safety and signal performance required by the application are offered. When evaluating procurement, the datasheet of the connection should be considered in terms of supplier trustworthiness and customizability. Mix them together, and you have a connection solution that protects your people, maintains signal integrity, and ensures long-term program stability.

FAQ

1. What is the maximum voltage rating for a standard SHV jack?

A standard SHV jack is rated for up to 3.5kV RMS AC or 5kV DC. Operating above these thresholds risks insulation breakdown and connector damage. Always maintain a safety margin below the rated ceiling.

2. How does an SHV jack differ from a BNC connector in high-voltage applications?

BNC connectors are not rated for high-voltage use. The SHV jack features a recessed center contact that prevents accidental conductor contact during mating — a safety mechanism absent in BNC designs. For any application exceeding standard signal levels, the SHV connector is the appropriate choice.

3. Can SHV jacks be ordered in custom configurations?

Yes. Suppliers like Chuangyu manufacture custom SHV jack assemblies to accommodate non-standard cable types, housing geometries, and termination methods. Contact their engineering team with your specific requirements.

4. What cables are compatible with SHV connectors?

Common compatible cables include RG-174, RG-188A, RG-316, and LMR-100. The cable insulation must meet high-voltage requirements, typically using a PTFE layer.

5. How often should SHV connectors be tested or replaced?

Performance testing — including insulation resistance, withstand voltage, and VSWR — should occur every 12 months under normal operating conditions. Replace immediately if readings fall outside specifications.

Partner with Chuangyu for Precision SHV Jack Solutions

Chuangyu delivers engineered SHV jack solutions built for high-voltage testing environments where precision and safety matter most. As a trusted SHV jack manufacturer with nearly two decades of RF component expertise, Chuangyu supports OEMs, test laboratories, and system integrators with both standard and custom connector configurations. Reach out to discuss your requirements, request a sample, or get a competitive quote. Contact our team at chuangyuwz01@cymicrowave.com to explore our full product range.

References

1. IEEE Transactions on Instrumentation and Measurement — 2021

2. IEC 60169: Radio-Frequency Connectors — International Electrotechnical Commission — 2020

3. Microwave Journal: RF Connector Selection Guide for High-Voltage Applications — 2022

4. Nuclear Instruments and Methods in Physics Research, Section A — 2019

5. Medical Device and Diagnostic Industry (MD+DI): Electrical Safety in High-Voltage Medical Connectors — 2020

6. EDN Network: Practical Guide to Coaxial Connector Specification and Selection — 2023
