1.85mm 50 Ohm Termination: Top Uses and Key Benefits

Signal integrity is crucial when dealing with millimeter-wave systems. A single impedance mismatch has the potential to taint data, harm delicate equipment, or stop a calibration cycle. Because of this, engineers in the fields of RF testing, 5G research, and aerospace depend on the 1.85mm 50 ohm termination as a fundamental part of their configurations. This article explains precisely what this component does, where it works best, and how to reliably choose, manage, and source one for your application.

What Is a 1.85mm 50 Ohm Termination and How Does It Work?

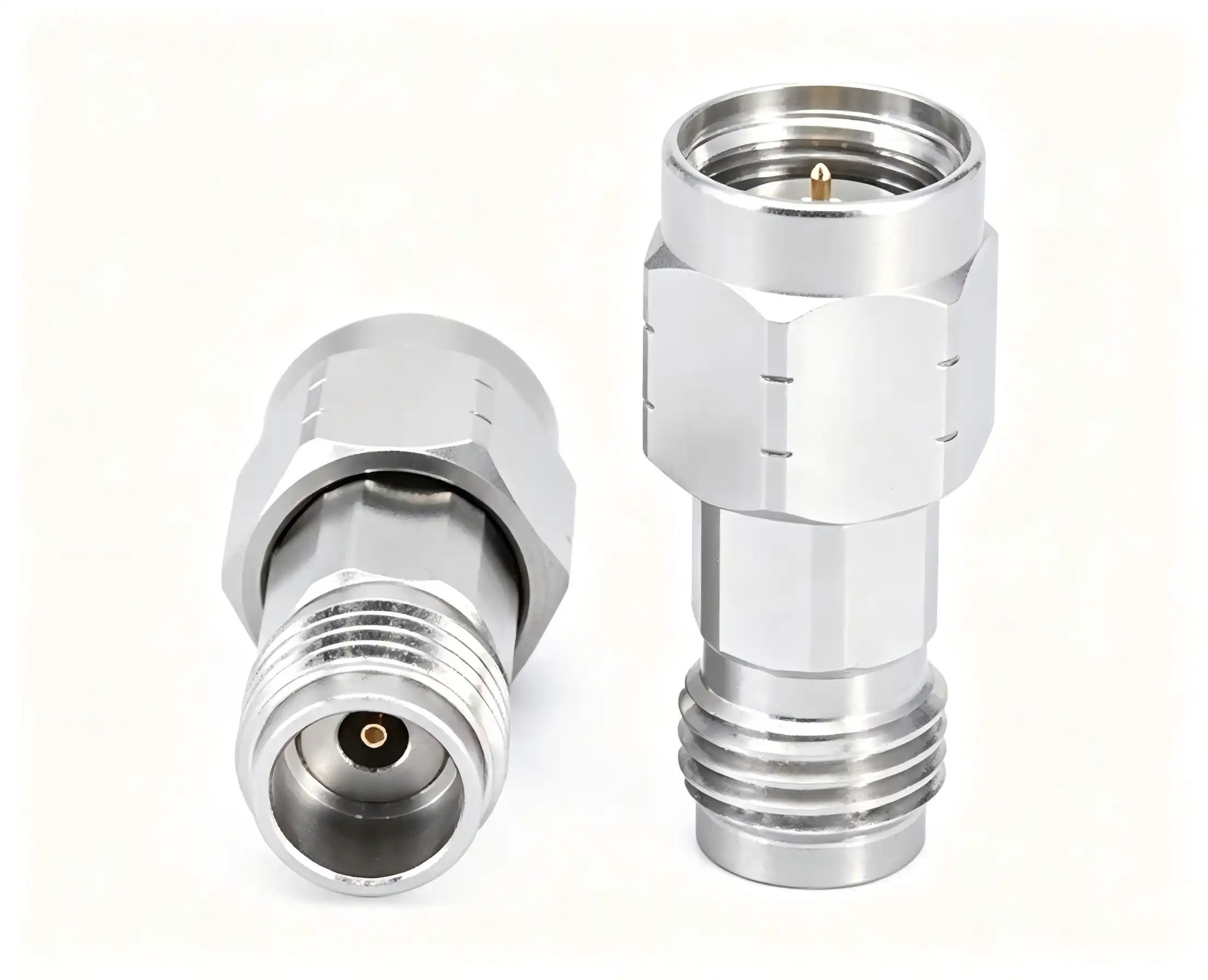

A precise passive RF component called a 1.85mm 50 ohm termination is made to absorb incident signals at the end of a transmission line, removing reflections and preserving constant impedance along the signal route. Without it, idle ports on a signal generator or vector network analyser turn into reflection sources that may overwhelm delicate front-end circuitry and skew results.

Core Construction and Materials

This component's internal architecture was specifically designed for high-frequency operation. A tantalum nitride resistive layer is bonded to an aluminium nitride substrate in the resistive element; this combination was selected for its low parasitic reactance and thermal stability. The inner conductor is beryllium copper with gold plating to prevent oxidation and preserve low contact resistance, while the exterior conductor is made of passivated stainless steel. The assembly is finished with an air dielectric insulation structure that reduces dielectric loss at millimeter-wave frequencies.

Electrical and Mechanical Performance

With a VSWR of ≤1.35, this 1.85mm 50 ohm termination spans DC to 67 GHz, which is a crucial criterion for millimeter-wave calibration accuracy. At 25°C, it can take up to 5W of continuous electricity; however, at 125°C, this drops to 0.5W. Thermal accumulation under load is controlled via a multi-layer heat dissipation design and high thermal conductivity metal packing. The stainless steel body functions dependably between -55°C and +125°C and can resist at least 500 mating cycles. A torque standard of 5-7 in-lbs (0.57-0.79 N·m) is recommended.

Top Applications of the 1.85mm 50 Ohm Termination

The versatility of this component is one of its most compelling qualities. Engineers encounter it across industries where high-frequency signal control is non-negotiable.

Millimeter-Wave Test and Measurement

The 1.85mm 50 ohm termination serves as a high-power terminal load for millimeter-wave signal generators and vector network analysers in laboratory settings. It makes it possible to accurately calibrate 67 GHz band systems and characterise devices, jobs where even little reflection mistakes result in expensive measurement uncertainty. Its consistent VSWR is used by test and measurement engineers to fix calibration reference planes.

5G and E-Band Communication Infrastructure

Dummy loads that preserve impedance fidelity under increased transmit power are required for 5G base station millimeter-wave modules and E-band satellite communication equipment operating between 71 and 86 GHz. For high-power transmission lines where heat management and return loss performance have a direct impact on link budget, this termination offers just that: dependable impedance matching and signal absorption.

Military, Aerospace, and Radar Systems

The most stringent environmental criteria for any RF component are found in defence applications. This termination is a reliable fit for radar subsystems and spacecraft RF chains since it passes MIL-STD-202 vibration, stress, and salt spray qualification tests. One of the main reasons military and aerospace integrators request it by design is its capacity to absorb high-power millimeter-wave transmissions in harsh environments.

The 1.85mm 50 ohm termination has become a typical reference component across industries that cannot afford signal integrity compromises, as these three application areas demonstrate.

Advantages Over Other Termination Types

When assessing termination possibilities, engineers often contrast the 1.85mm format with SMA and 2.4mm alternatives. At high frequencies, the variations are significant.

The following are the main benefits that set this termination format apart:

• Frequency headroom: The 1.85mm interface is the best option for current 5G and next-generation millimeter-wave systems since it can operate at 67 GHz, surpassing both 2.4mm connections and SMA-based designs.
• Minimal signal reflection across the working range is shown by a VSWR ≤1.35 from DC to 67 GHz. This performance attribute immediately enhances measurement confidence and calibration accuracy.
• Thermal design advantage: The thicker resistive substrate and heat dissipation coating enable continuous 5W operation without deterioration as compared to low-power alternatives. This is a realistic need in continuous-wave test conditions.
• Mechanical durability: In high-cycle production test setups, the passivated stainless steel body's greater unit cost is justified by its capacity to withstand ≥500 insertion cycles and withstand MIL-STD-202 environmental testing.

Procurement managers and technical directors see these performance benefits as true operational value since they result in reduced rework costs, fewer calibration disruptions, and longer service intervals.

How to Select and Install the Right Component

Choosing the correct 1.85mm 50 ohm termination for your application requires matching the component's rated parameters to your system's actual operating conditions.

Selection Criteria

At 25°C, input power cannot be more than 5W, and instantaneous peak power cannot be more than 500W. Make sure your operational frequency remains between DC and 67 GHz. Verify the mechanical compatibility of the current port hardware. If a 1.85mm termination is mated to an interface that isn't compatible, it will harm both parts and cause impedance discontinuities.

Installation Best Practices

When connecting, always use a torque wrench that has been calibrated and adjusted to 0.57–0.79 N·m. VSWR performance is negatively impacted by irreversible deformation caused by forced contact between inner and outer conductors during mating, a typical error in hectic lab settings. Install an IP67 sealing cover to stop moisture from penetrating the air dielectric structure in areas with relative humidity levels above 60%. One of the main reasons millimeter-wave terminations experience early performance drift is moisture contamination.

Maintenance and Service Life

Cleaning is simple, but it has to adhere to a standard procedure. Use an isopropyl alcohol swab to clean the connector end face after every 20 insertions, paying particular attention to the gold-plated contact regions. Metal tools should never be used close to the air dielectric contact. A monthly VSWR pre-test should be conducted, and idle devices should be stored between -20°C and +60°C in settings with RH ≤50%. Return the device for factory calibration if the VSWR is more than 1.35. Verify that both VSWR and power capacity are still within specification by performing a full-band network analyser check after 1500 cumulative running hours or any significant shock event.

Conclusion

The 1.85mm 50 ohm termination is a precision instrument that directly affects measurement accuracy, system dependability, and equipment lifetime; it is not a commodity component. It is the preferred option for engineers working in millimeter-wave testing, 5G infrastructure, and defence electronics because of its designed material stack, verified thermal management, and wide frequency range from DC to 67 GHz. Long-term protection of your equipment and measurement results may be achieved by choosing the appropriate unit, installing it appropriately, and servicing it regularly.

FAQ

What frequency range does a 1.85mm 50 ohm termination support?

This termination covers DC to 67 GHz, making it compatible with millimeter-wave test equipment, 5G mmWave modules, and E-band communication systems. Its VSWR remains ≤1.35 across the full frequency range under rated conditions.

How much power can a 1.85mm termination handle continuously?

The continuous power rating is 5W at 25°C. At elevated temperatures — specifically 125°C — the rating drops to 0.5W. Instantaneous peak power must not exceed 500W under any operating condition.

Is the 1.85mm connector compatible with 2.4mm connectors?

Yes, 1.85mm and 2.4mm connectors are mechanically compatible and can be mated directly. However, the combined frequency ceiling of the mated pair is limited by the lower-performing interface — in this case, the 2.4mm connector.

How often should I inspect and clean the connector?

Clean the connector end face after every 20 insertions using isopropyl alcohol. Perform a monthly VSWR pre-test on stored units. Schedule a full-band performance check after 1500 cumulative hours of use or any significant mechanical shock.

Does this component meet military qualification standards?

Yes. This termination passes MIL-STD-202 vibration, shock, and salt spray tests, qualifying it for use in radar subsystems, spacecraft RF chains, and other defense-grade applications.

Partner with Chuangyu for Reliable 1.85mm 50 Ohm Termination Supply

Chuangyu delivers precision-engineered 1.85mm 50 ohm termination components built to DC–67 GHz performance standards for test, 5G, and defense applications. As a trusted 1.85mm 50 ohm termination manufacturer with nearly two decades of RF component expertise and an annual production capacity of 500,000 RF components, we support OEM, ODM, and custom procurement needs. Contact our engineering team at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request a datasheet or bulk quote.
