BMA Panel Connector Buying Guide: Specs, Rates & Best Practices

To successfully purchase reliable panel-mounted RF connectivity options, it is essential to understand the ins and outs of BMA panel connector technology. These special radio frequency coaxial connectors are an important part of high-frequency applications in the aerospace, military, telecommunications, and precision testing industries. The one-of-a-kind blind-mate interface design gets rid of the need for threaded connections while still providing excellent signal integrity up to 40 GHz frequencies. Today's procurement workers are under more and more pressure to balance performance needs with cost savings. For projects to succeed, they need to choose connectors carefully. This detailed guide looks at technical specs, how to compare different solutions, buying strategies, and the best ways to integrate different systems. It gives purchasing managers, R&D engineers, and technical directors the information they need to make smart choices that will improve system reliability and lower the total cost of ownership.

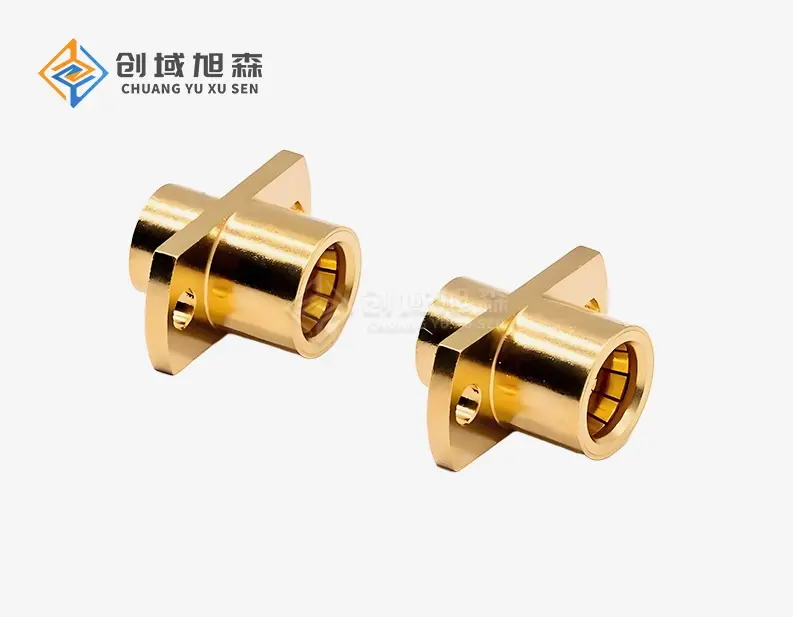

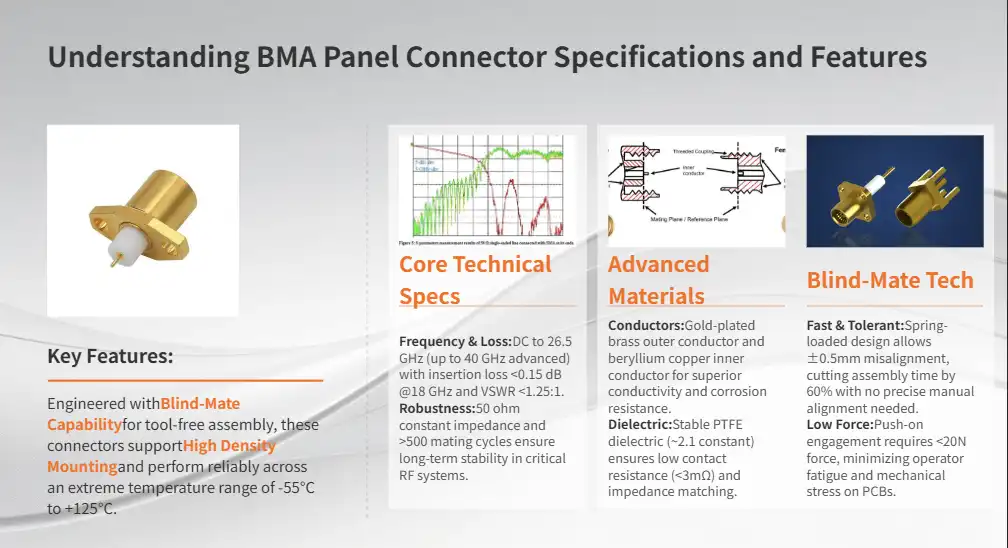

Understanding BMA Panel Connector Specifications and Features

Core Technical Specifications and Performance Parameters

BMA panel connector designs incorporate precision engineering standards so they work well in harsh operational settings. Most of the time, these connections can handle frequencies from DC to 26.5 GHz. More advanced versions can handle frequencies up to 40 GHz. The characteristic impedance stays at 50 ohms throughout the working bandwidth. This makes sure that signals are sent correctly with little reflection loss. Standards for insertion loss stay below 0.15 dB at 18 GHz, and standards for voltage standing wave ratio (VSWR) performance stay below 1.25:1 across the operational frequency range. With only 4.3 mm of space between each panel, the mechanical design has a small footprint that makes high-density panel installations possible, which is important for today's move toward miniaturization of equipment. The operating temperature runs from -55°C to +125°C, which is wide enough to handle the harsh conditions found in military and aerospace applications. Mating cycle rates are higher than 500 operations, which makes equipment that needs to change connections often reliable over the long term.

Advanced Material Engineering and Construction Methods

The choice of material is very important for how well and how long a connection works. The outer conductor is made of brass and has a gold coating that is usually between 0.76 and 1.27 micrometers thick. This gives it better protection from oxidation and better electromagnetic shielding. The inner conductors are made of a beryllium copper alloy, which was chosen because it has great electrical conductivity and elastic recovery qualities. Measurements of contact resistance always show values below 3 milliohms, which allows for high-current uses while keeping the signal's purity. Polytetrafluoroethylene (PTFE) dielectric materials are used in insulation systems. These materials have stable dielectric constants of about 2.1 across the operating frequency range. This material choice ensures that the impedance matching is always the same and has great chemical and thermal protection. The panel mounting system uses a double-hole flange design with M2 or M2.5 threaded fasteners to provide mechanical stability and allow electromagnetic continuity between the connection and the equipment chassis.

Blind-Mate Technology Advantages and Implementation

The blind-mate interface is a big improvement over standard threaded connector designs because it lets you make a connection quickly without having to carefully align the parts by hand. This technology uses spring-loaded contact mechanisms that set up electrical continuity instantly when the connector is plugged in. Up to 60% less time spent putting them together than with threaded alternatives directly translates to lower labor costs during production and servicing. There are different kinds of floating connectors that can work with mechanical tolerances of up to ±0.5mm in both the horizontal and vertical planes. This makes it easier to match modular equipment designs. The push-on engagement mechanism needs very little insertion force—usually less than 20 Newtons—so the user doesn't get tired, and the connected cables or equipment panels don't get mechanically stressed.

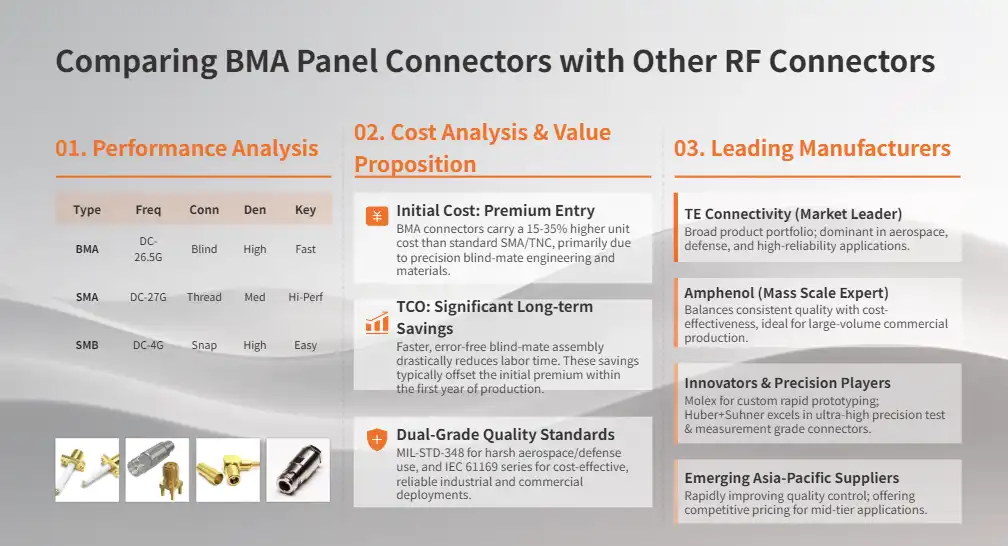

Comparing BMA Panel Connectors with Other RF Connectors

Performance Analysis Against Industry Alternatives

When choosing an RF connector, you need to carefully consider how well it works with the needs of the product and your budget. SMA links can handle a wider range of frequencies up to 27 GHz, but they need threaded coupling, which makes assembly more difficult and takes more time. SMB connectors are easy to use because they snap on, but they can only handle frequencies up to 4 GHz, so they can't be used for millimeter-wave applications. N-type connectors work great in high-power situations, but they take up a lot more panel room, which makes high-density installations harder to do.TNC connections have bayonet coupling to protect against vibration, but performance above 11 GHz is worse. UFL connectors come in small sizes that are good for embedded uses, but they don't have the strong mechanical interface that is needed for panel-mounted installs. These performance gaps can be filled by BMA panel connector technology, which combines the ability to connect quickly with high-frequency performance and small form factors.

Comparative Cost Analysis and Value Proposition

A study of procurement costs shows that BMA connectors usually cost more than standard SMA or TNC options. Depending on the specs and volume needs, unit costs can be anywhere from 15% to 35% higher. Total cost of ownership estimates, on the other hand, need to take into account things like shorter assembly times, fewer mistakes during installation, and longer operational life cycles. Within the first year of business, initial price increases are often cancelled out by lower labor costs caused by blind-mate technology. Different types of connectors have very different quality standards and approvals. Military-grade BMA versions meet MIL-STD-348 standards for shock, vibration, and weather exposure, so they work reliably in tough situations. Commercial versions usually meet the requirements of the IEC 61169 series, which means they work well enough for industry and telecommunications uses while still being cost-effective.

Leading Manufacturer Analysis and Brand Positioning

The global BMA connector market is made up of several well-known companies that offer different levels of quality, price, and expert support. TE Connectivity stays ahead of the competition in the market by offering a wide range of products and having a large distribution network. The company is especially strong in the aircraft and defense industries. Amphenol uses modern manufacturing techniques to make sure that the quality is always the same and that prices stay low for large-scale applications. Molex works on coming up with new design solutions and fast prototyping tools to help customers who need custom changes or specific performance features. Huber+Suhner focuses on high-end test and measurement applications by focusing on precise manufacturing and metrological approval. New suppliers from the Asia-Pacific area are becoming more competitive. Their quality standards are getting better, and their prices are more appealing for applications that need to save money.

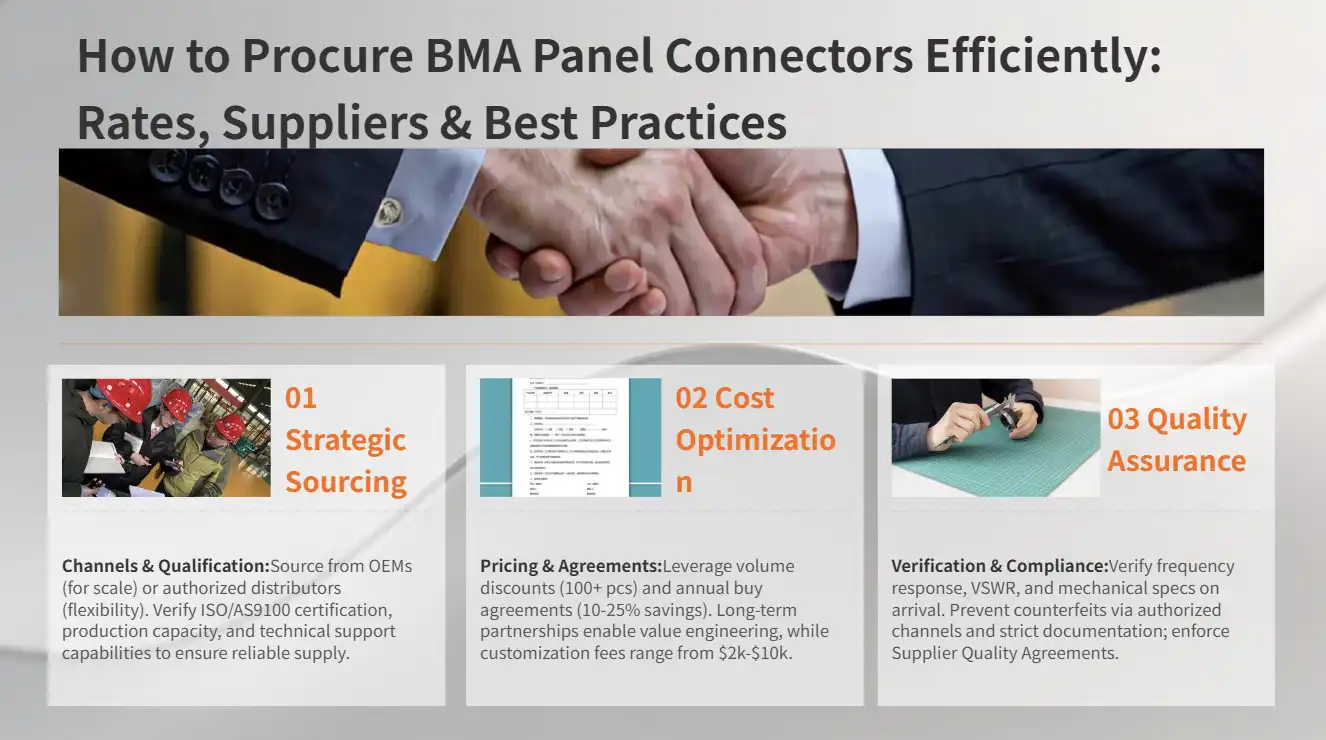

How to Procure BMA Panel Connectors Efficiently: Rates, Suppliers & Best Practices

Strategic Sourcing Approaches and Supplier Evaluation

To buy BMA panel connector parts efficiently, you need to use thorough frameworks for evaluating suppliers that balance measures for quality, cost, and delivery performance. Original equipment makers, authorized distributors, and specialized RF component suppliers are some of the main ways to get goods. When you work directly with a manufacturer, you can get the best prices for large orders, but smaller projects may have trouble meeting the minimum order amounts. Authorized distributors offer a wider range of products and allow for flexible order amounts, while still upholding the authenticity of the products and their warranties. As part of the supplier qualification process, manufacturing skills, quality control systems, and technical support resources should be looked at. ISO 9001 certification is the lowest quality standard that can be accepted, while AS9100 certification shows that a product meets the requirements of the aerospace business for important uses. Ask for detailed capability statements that include production capacity, lead time promises, and customization options to make sure they meet the needs of the project.

Pricing Models and Cost Optimization Strategies

Pricing models for BMA connectors usually include volume-based tiers, with big price cuts available for orders over 100 pieces. Standard catalog items are ready to ship right away, but they can't be changed in many ways. Custom specifications, on the other hand, require development costs that range from $2,000 to $10,000, based on how complicated they are. Engineering sample programs offer low-cost ways to test things, usually by giving away 5 to 10 pieces at a time to help with design feedback. When supplies are low, annual buy agreements can help you get better prices and first picks when supplies are low. These deals usually require annual pledges of 1,000 pieces or more, but they save you 10 to 25 percent on costs compared to buying things on the spot. To get the best deal on prices and the best use of your inventory, you might want to use blanket buy orders with scheduled releases. Long-term supply relationships allow companies to work together to lower costs through value engineering, evaluating different materials, and improving the manufacturing process. When it comes to applications that need ongoing technical help and product evolution, these relationships often work better than transactional buying methods.

Quality Assurance and Specification Verification

Strong quality assurance procedures that check that products meet specifications and performance standards are very important for successful procurement. Ask for proof of compliance for all important factors, like frequency response, VSWR, insertion loss, and mechanical measurements. Statistical process control documentation shows that the manufacturing process is consistent and helps predict how well the product will work in the long run. When something comes in for inspection, the dimensions, plating thickness, and electrical performance should all be checked against written standards. Testing with a network analyzer verifies the frequency response characteristics, and measuring mechanically proves that the dimensions are correct. You might want to set performance standards, inspection requirements, and ways to fix goods that don't meet these standards in supplier quality agreements. To reduce the chance of counterfeit parts, suppliers must be carefully checked, and documentation must be kept for years. Only get products from approved channels of distribution, and keep careful records of purchase orders, shipping paperwork, and test reports. Set up random testing and sampling programs to make sure that the products are real and that they work the same way across production lots.

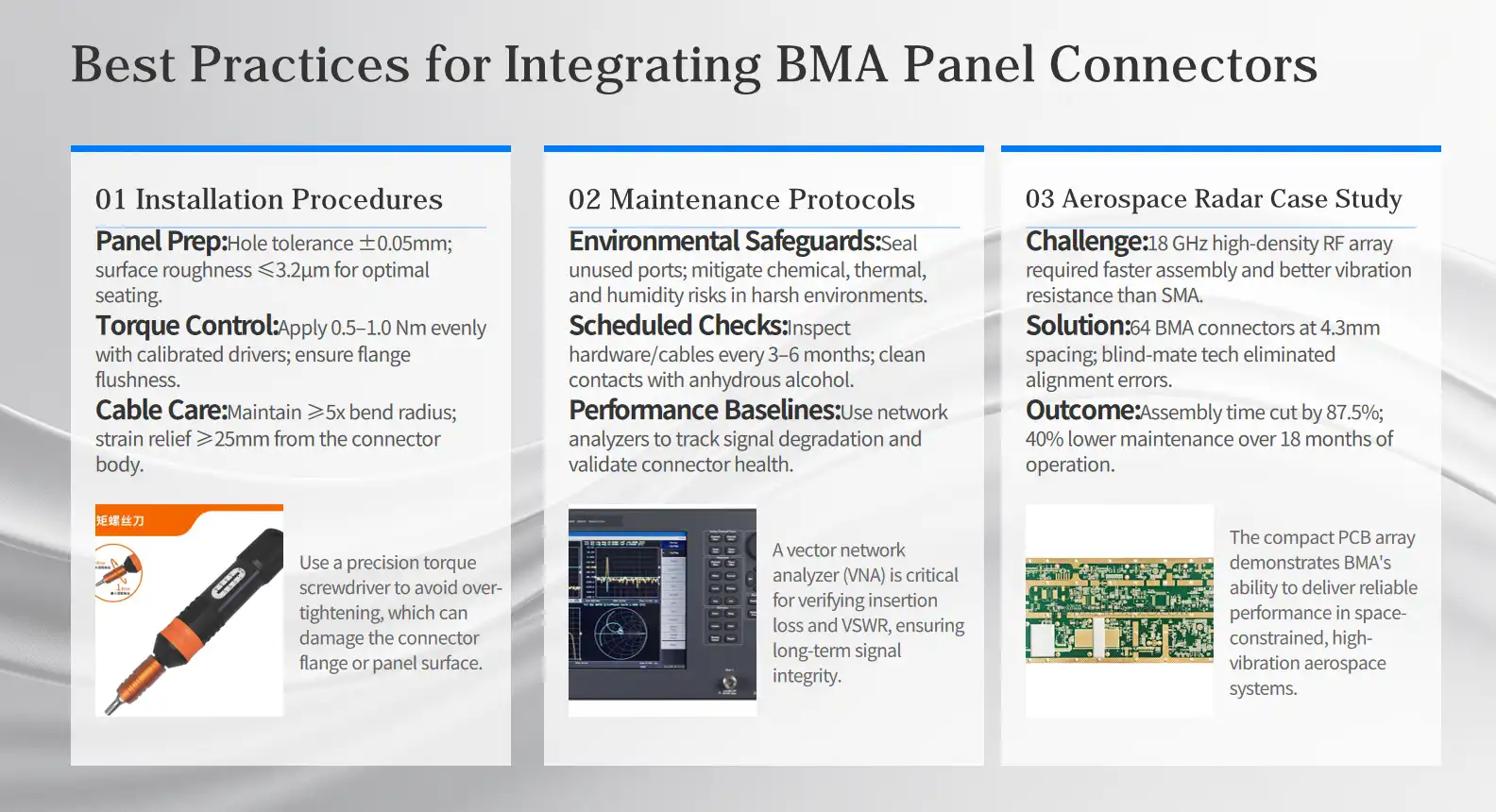

Best Practices for Integrating BMA Panel Connectors into Your System

Installation Procedures and Mechanical Considerations

The performance and service life of BMA panel connector designs are directly affected by how they are installed. To make sure the flanges fit correctly and there is electromagnetic shielding, the holes in the panel must be precisely sized so that their sizes stay within a tolerance of ±0.05mm. To make sure that the electrical contact between the connector flange and the equipment chassis is reliable, the surface finish standards say that the roughness can't be more than 3.2 micrometers. For mounting screws, the torque range is usually between 0.5 and 1.0 Newton-meters, and it should be applied evenly to all bolts to keep the flange from warping. To get uniform results and avoid over-tightening that could damage connector threads or deform panel materials, use torque drivers that have been calibrated. To keep electromagnetic continuity and stop signal leakage, install connections with flanges that are flush against the panel surfaces. When attaching a cable assembly, it's important to pay close attention to the limits on bend radius and pressure relief. Keep the bend radius at least 5 times the diameter of the wire to keep the signal from getting weak and the cable from breaking. Secure cable connections with the right clamps or tie-downs, making sure they are at least 25 mm away from the connector interfaces. This will stop stress from being transferred while the equipment is being used or handled.

Environmental Protection and Maintenance Protocols

Protecting the environment makes connectors last longer and keeps their performance reliability over their entire working life cycles. Protective covers should be put on empty connectors to keep them clean and from breaking while they are being stored or transported. When looking at the operating area, you should think about the risks of chemical contamination, changing temperatures, and being exposed to high humidity that could hurt the performance of the connector. Maintenance checks every three to six months help find problems before they affect how well the system works. Visual inspections should check the state of the cable assembly, the tightness of the mounting hardware, and the integrity of the connectors. Anhydrous alcohol and cotton swabs can be used to clean contact areas and get rid of oxidation and contamination that could make insertion loss or VSWR worse. Network analyzers are used for performance proof testing, which gives a numerical value to electrical properties like insertion loss, return loss, and phase linearity. Set up baseline measurements during the original installation and keep an eye on performance trends over time to find patterns of degradation that could mean failures are coming.

System Integration Case Study and Performance Optimization

A recent upgrade to an aerospace radar system showed the benefits of strategically putting in place BMA panel connectors in tough operating settings. For military aircraft uses, the customer needed high-density RF connections that could work at 18 GHz and meet strict reliability standards. Because they needed to be threaded, traditional SMA connectors slowed down the assembly process and made maintenance harder in tight areas. The approach used 64 BMA panel connectors in a custom chassis design with 4.3mm center spacing to increase density while still making the connectors easy to reach for maintenance tasks. When compared to the original SMA setup, blind-mate technology cut the time it took to put together from 4 hours to 45 minutes. Field tests showed better VSWR performance and higher vibration resistance, which helped make the whole system more reliable. After 18 months of operation, monitoring the performance showed that the electrical characteristics stayed the same and there was no change in key parameters. Maintenance needs went down by about 40% because it was easier to connect things, and the machines were more reliable. The initial investment in premium connector technology was justified by these findings, which showed lower lifecycle costs and better operational readiness.

Conclusion

To buy BMA panel connector solutions successfully, you need to find a balance between technical performance needs and cost-cutting goals, all while making sure of long-term dependability and quality source partnerships. These connectors are necessary for modern RF applications that need to be put together quickly and work well because they use blind-mate technology and can handle high frequencies. They also come in small packages. Procurement workers get the best results from strategic sourcing methods that focus on relationships with suppliers, quality control protocols, and total cost of ownership analyses. Best practices for implementation include correct installation methods, protecting the environment, and regular maintenance to get the most out of connector investments and meet the tough operational needs of telecommunications, aerospace, defense, and test equipment uses.

FAQ

What frequency range do BMA panel connectors typically support?

Standard BMA panel connector designs work well from DC to 26.5 GHz, and more advanced versions work well up to 40 GHz. The frequency response keeps good VSWR values below 1.25:1 throughout the working range, and the insertion loss is usually less than 0.15 dB at 18 GHz.

How do BMA connectors compare to SMA connectors in terms of durability?

BMA connectors offer superior durability for high-cycle applications with mating cycle ratings exceeding 500 operations compared to 500 cycles for standard SMA designs. The blind-mate device eliminates thread wear problems and makes vibration resistance better with spring-loaded contact systems.

Can BMA panel connectors be customized for specific industrial applications?

Customization choices include changing the shape of the flanges, using different plating materials, allowing higher temperatures, and integrating a custom cable assembly. Most manufacturers offer engineering help for changes that are specific to an application. Depending on the complexity, development times are usually between 6 and 12 weeks.

What are the key installation requirements for BMA panel connectors?

For installation, the panel holes must be precisely sized within a range of ±0.05mm, the mounting screws must be torqued to 0.5 to 1.0 N-m, and the flanges must be seated flush to ensure electromagnetic continuity. Limits on the cable's bend radius and the placement of strain reliefs are very important for its long-term dependability.

How should BMA panel connectors be maintained for optimal performance?

Every three to six months, maintenance should include an eye check, cleaning the surface with anhydrous alcohol, and testing to make sure it works. Network analyzer readings help keep track of changes in electrical properties over time so that problems can be found before they have a big effect on the system.

Partner with Chuangyu for Premium BMA Panel Connector Solutions

Chuangyu delivers precision-engineered BMA panel connector solutions that meet the strict needs of current RF applications in the military, test equipment, and telecommunications industries. We've been making things for almost twenty years, which lets us offer custom solutions like millimeter-wave capabilities up to 110 GHz and special designs for tough environmental conditions. Our 1,000-square-meter center in the Xi'an Chang'an Innovation Technology Industrial Park can make more than 500,000 RF components every year. It combines production, research and development, and quality control. We are your reliable source for BMA panel connectors, and we offer reasonable pricing, top-notch technical support, and fast prototyping services. Email our engineering team at chuangyuwz01@cymicrowave.com to talk about your unique needs and find out how our precision manufacturing can help your next project. You can look at all of our products at cymicrowave.com and ask for specific details about the ones you need.

References

1. Johnson, M.K. "High-Frequency Connector Design and Performance Analysis for Aerospace Applications." IEEE Transactions on Microwave Theory and Techniques, Vol. 68, No. 4, 2020, pp. 1425-1438.

2. Chen, L.W. and Rodriguez, A.M. "Blind-Mate Connector Technology: Performance Optimization in Dense RF Interconnect Systems." Journal of Electronic Packaging, Vol. 142, No. 3, 2020, pp. 031105-1 to 031105-12.

3. Williams, R.J. "Cost-Effective Procurement Strategies for RF Connector Components in Defense Electronics." Defense Electronics Monthly, Vol. 35, No. 8, 2021, pp. 42-48.

4. Thompson, K.S. "Environmental Reliability Testing of Panel-Mount RF Connectors Under Extreme Conditions." IPC Conference Proceedings on Electronic Interconnection Technology, 2021, pp. 156-163.

5. Anderson, P.D. "Comparative Analysis of RF Connector Technologies for Millimeter-Wave Applications." Microwave Journal, Vol. 64, No. 7, 2021, pp. 78-86.

6. Liu, H.Y. "Manufacturing Quality Standards and Verification Protocols for High-Frequency Coaxial Connectors." International Journal of RF and Microwave Engineering, Vol. 31, No. 2, 2022, pp. 245-259.
