1.0mm vs 1.85mm Coaxial Adapters: A Practical Selection Guide

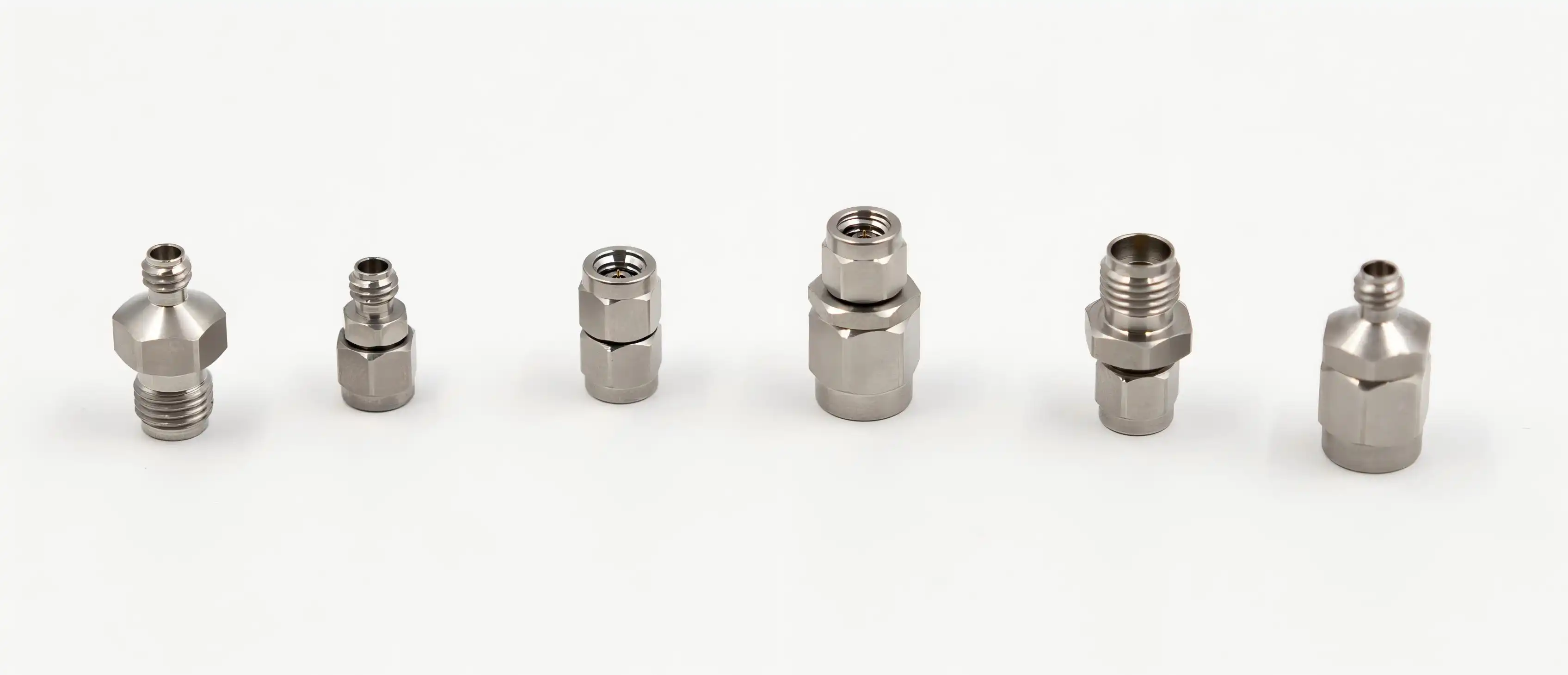

Selecting the incorrect adaptor might jeopardise an entire measurement campaign when your test bench has to bridge two distinct millimeter-wave interfaces. This interface mismatch might be easily resolved using a Coaxial adapter 1.0mm male to 1.85mm female, which alternates between the small 1.0mm connection and the 1.85mm socket without appreciably degrading the signal. This article may be used by procurement managers, hardware designers, and R&D engineers to understand how technical differences, selection logic, installation discipline, and sourcing factors affect an adapter's performance in difficult radio frequency settings.

Understanding 1.0mm and 1.85mm Coaxial Connectors

Physical Dimensions and Electrical Parameters

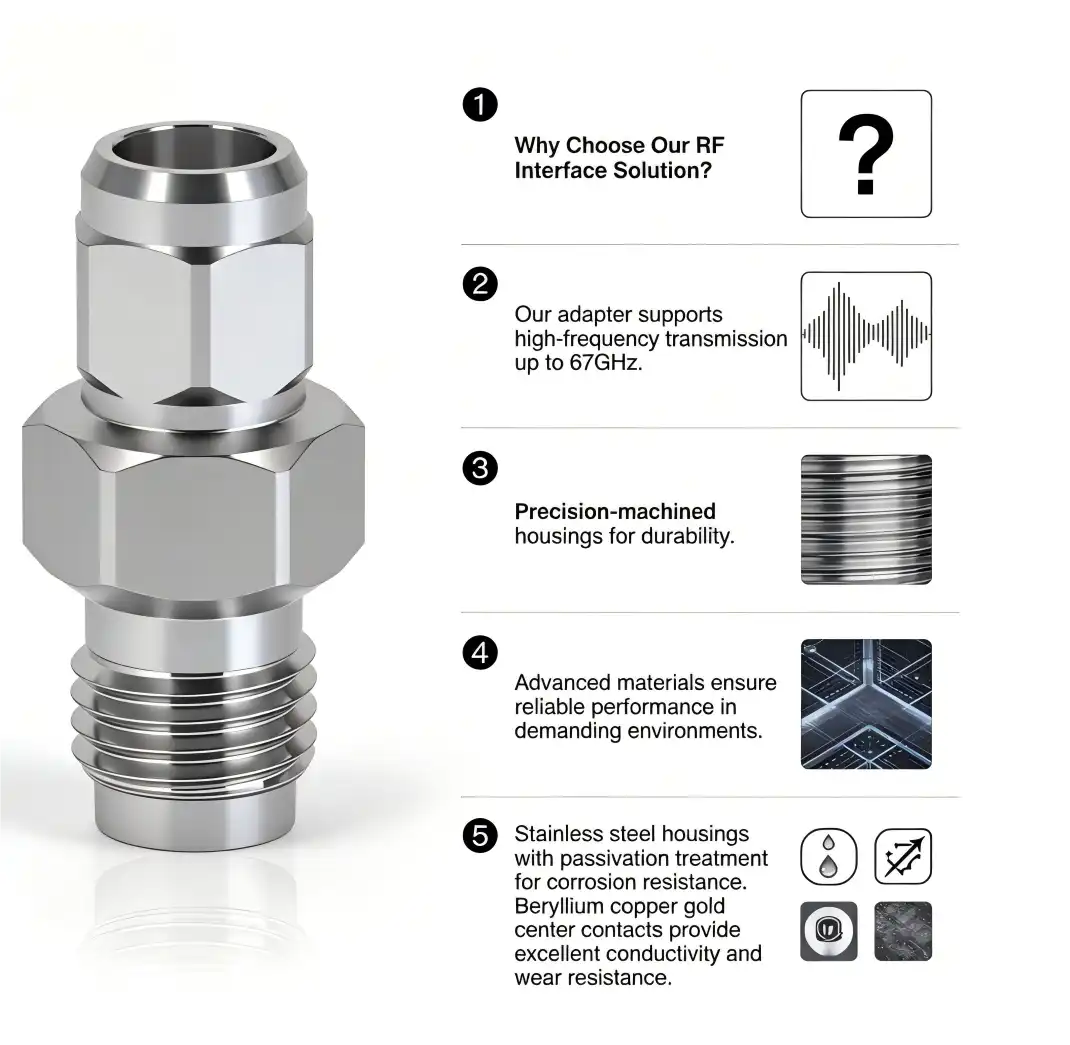

Although a 1.0mm male to 1.85mm female adapter is usually rated to 67 GHz in reality, the 1.0mm connection with an outer conductor inner diameter of 1.0mm supports operation from DC to 110 GHz in through-line form. The 1.85mm connection, also referred to as a "V connector," has the same nominal impedance of 50 ohms as the 1.0mm standard and covers DC to 67 GHz. The conductivity and endurance required for millimeter-wave transmission are provided by both interfaces' gold-plated beryllium copper core contacts and precisely machined stainless steel outside conductors.

Signal Flow and Impedance Continuity

Throughout the transition zone, adapters connecting these two connector families must maintain a 50-ohm impedance. Any geometric irregularity in the dielectric medium—Chuangyu's adapter series employs polyetherimide, or PEI—creates a reflection point that increases VSWR and reduces measurement accuracy. A well-designed 1.0mm to 1.85mm coaxial transition maintains insertion loss within < 0.06√f (GHz) dB, or around 0.53 dB at 67 GHz, while maintaining VSWR ≤ 1.3 across the specified bandwidth. What sets precision adapters apart from commodity components is that degree of performance.

Key Differences Between 1.0mm and 1.85mm Coaxial Adapters

The most evident difference is size for the Coaxial adapter 1.0mm male to 1.85mm female. Compared to the 1.85mm end, which requires 0.80 to 1.10 Nm of connection torque, the 1.0mm interface is more delicate due to its smaller size. In laboratory settings, one of the main causes of premature connection failure is misapplying torque at either end.

From an electrical perspective, both interfaces have the same 50-ohm impedance objective; but, in matched pairs, the 1.0mm connection may potentially reach 110 GHz. The top frequency ceiling corresponds to the 1.85mm limit of 67 GHz when used in a coaxial adapter that combines 1.0mm male and 1.85mm female interfaces. This pairing may be used by engineers operating sub-67 GHz measuring devices without compromising bandwidth.

Variations in durability are important in industrial settings. A minimum plug-and-unplug life of 500 cycles under rated torque is specified for both connection types. However, during misaligned mating, the 1.0mm interface's smaller center pin is more vulnerable to lateral force damage. In aerospace and defence test facilities, where a single malfunctioning adapter may invalidate hours of calibration data, inspection prior to each connection cycle is not optional.

Choosing the Right Adapter: Comparison with Alternatives

In comparison to other connection families, how does the Coaxial adapter 1.0mm male to 1.85mm female millimeter-wave adapter perform? The following are the main differences between three popular options:

• 2.4mm connector: With a VSWR of less than 1.35 and a rating of 50 GHz, the 2.4mm interface is somewhat more durable mechanically than the 1.85mm, but it is unable to achieve 67 GHz. A reasonable cascade option for connecting 67 GHz equipment to 50 GHz test ports is a 1.85mm female to 2.4mm male converter. Test system design is made simpler by the 2.4mm outer conductor's mechanical compatibility with the 1.85mm interface.
• SMA connector: SMA is completely inappropriate for millimeter-wave operations since its maximum frequency is 18 GHz. When an application requires frequencies over 26.5 GHz, like 5G NR FR2 or automobile radar testing, its reduced cost is meaningless.
• 2.92mm (K connection): SMA and 1.85mm performance levels are separated by the 2.92mm connector, which has a 40 GHz rating. It works well for mid-range millimeter-wave applications, but when 67 GHz coverage is needed, it cannot be used as a stand-in.

Frequency requirements are followed by cost-benefit reasoning. Instead of cascading lower-frequency components, which adds connector interfaces and cumulative insertion loss, procurement teams sourcing adapters for millimeter-wave semiconductor characterisation, phased-array radar validation, or 5G base station antenna testing should directly target the 1.0mm to 1.85mm coaxial adapter tier.

These differences make it clear that there isn't a single adapter family that works in every situation. You may prevent both over-specification and under-performance by matching the connection tier to your system's actual operating frequency.

Installation and Best Practices for 1.0mm Male to 1.85mm Female Adapters

Pre-Connection Inspection Protocol

Make sure the central pin is free of oxidation or physical damage and inspect the outer conductor for distortion before attaching any 1.0mm male to 1.85mm female RF adapter. To remove oxides and particle pollution that increase contact resistance and VSWR, wipe both surfaces with a specialised RF cleaning brush moistened with anhydrous alcohol.

Torque-Controlled Mating Procedure

Use a torque wrench that has been calibrated at all times for Coaxial adapter 1.0mm male to 1.85mm female. Apply 0.80 to 1.10 Nm at the 1.85mm end and 0.30 to 0.41 Nm at the 1.0mm end. The most damaging installation mistake is oblique insertion at the smaller 1.0mm interface, which bends the central pin and makes the adapter useless. Apply the torque wrench in a single, fluid stroke after hand-tightening until snug.

Post-Installation Verification and Storage

Use a vector network analyser to confirm performance after connecting. Insertion loss should track within the < 0.06√f (GHz) dB standard, and VSWR should stay ≤ 1.3 across the desired frequency range. Adapters should be kept in a dry, insulated container between -65°C and +165°C with a relative humidity of less than 60%. Never push a deteriorated adapter back into operation. If VSWR increases suddenly during testing, disconnect right away, check for wear, and replace the adapter before proceeding.

Procurement Guide for Global B2B Clients

It takes more than just comparing datasheet specifications to find a dependable 1.0mm male to 1.85mm female coaxial adapter in large quantities. Procurement managers should verify that the supplier has traceability records in compliance with MIL-STD-202 environmental testing criteria, which include heat cycling from −55°C to +125°C, vibration, and resistance to salt spray.

Depending on volume and customisation needs, lead times for precision millimeter-wave adapters usually fall between two and six weeks. This window may be further compressed by suppliers with vertically integrated manufacturing, such as Chuangyu, which has a specialised production line for coaxial connections at its Xi'an facility. Both prototype quantities and full-scale manufacturing runs are supported by Chuangyu's 500,000-unit yearly RF component capacity.

Both post-purchase technical assistance and warranty coverage are essential. Test plans are disrupted, and measurement error is created when an adapter breaks at the 300-cycle mark rather than the planned 500 cycles. For the remainder of the adapter's service life, working with a provider that provides prompt technical help minimises downtime and safeguards calibration integrity.

Conclusion

The choice between a 1.0mm and 1.85mm coaxial adapter is mostly based on mechanical compatibility and frequency. For 5G/6G validation, phased-array radar testing, and millimeter-wave semiconductor characterisation, a coaxial adapter 1.0mm male to 1.85mm female covers DC to 67 GHz with VSWR < 1.3 and insertion loss ≤ 0.06√f (GHz) dB. Whether the adapter meets its rated 500-cycle service life depends on proper torque application, pre-use inspection, and disciplined storage procedures. Before committing to a volume purchase, match the connection tier to your real frequency need, ensure MIL-STD-202 compliance, and validate supplier quality certifications.

FAQ

What frequency range does a 1.0mm to 1.85mm adapter support?

The 1.0mm male to 1.85mm female coaxial adapter operates from DC to 67 GHz. While the 1.0mm interface can support up to 110 GHz in matched-pair configurations, the 1.85mm interface sets the effective ceiling at 67 GHz for this adapter type.

How can I reduce insertion loss in a millimeter-wave coaxial adapter?

Apply correct torque at each interface—0.30 to 0.41 Nm at the 1.0mm end and 0.80 to 1.10 Nm at the 1.85mm end. Clean both interfaces with anhydrous alcohol before mating. Verify performance post-installation with a VNA to confirm loss stays within ≤ 0.06√f (GHz) dB.

Is a 1.0mm to 1.85mm adapter compatible with 2.4mm connectors?

Not directly. The 1.0mm to 1.85mm adapter terminates at a 1.85mm female port. A separate 1.85mm female to 2.4mm male adapter is required to interface with 2.4mm equipment, which operates to 50 GHz. This cascade adds one additional connector interface to the signal path.

What torque wrench settings are required?

Use a calibrated torque wrench set to 0.30–0.41 Nm for the 1.0mm male end and 0.80–1.10 Nm for the 1.85mm female end. Never use standard hand tools or pliers on millimeter-wave connectors.

Can these adapters withstand harsh environments?

Yes. Adapters built to MIL-STD-202 standards, with passivated stainless steel housings and gold-plated beryllium copper contacts, withstand salt spray, vibration, shock, and temperatures from −55°C to +125°C.

Partner with Chuangyu for Precision Millimeter-Wave Adapter Solutions

Chuangyu delivers certified coaxial adapter 1.0mm male to 1.85mm female solutions engineered to MIL-STD-202 standards, with VSWR ≤ 1.3 and DC-to-67 GHz coverage. As a trusted coaxial adapter 1.0mm male to 1.85mm female supplier, Chuangyu supports OEM volumes, custom interface configurations, and rapid delivery from its Xi'an production base. Contact the technical team today at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request specifications, samples, or volume pricing.

References

1. Pozar, D. M. Microwave Engineering, 4th ed. Wiley, 2011.

2. IEEE Std 287-2007. IEEE Standard for Precision Coaxial Connectors (DC to 110 GHz). IEEE, 2007.

3. MIL-STD-202H. Test Methods Standard: Electronic and Electrical Component Parts. U.S. Department of Defense, 2015.

4. Marks, R. B., & Williams, D. F. "Characteristic Impedance Determination Using Propagation Constant Measurement." IEEE Microwave and Guided Wave Letters, 2001.

5. Rytting, D. "Network Analyzer Error Models and Calibration Methods." Agilent Technologies RF & Microwave Measurement Symposium, 2007.

6. Kahrs, M. "50 Years of RF and Microwave Sampling." IEEE Transactions on Microwave Theory and Techniques, 2003.
