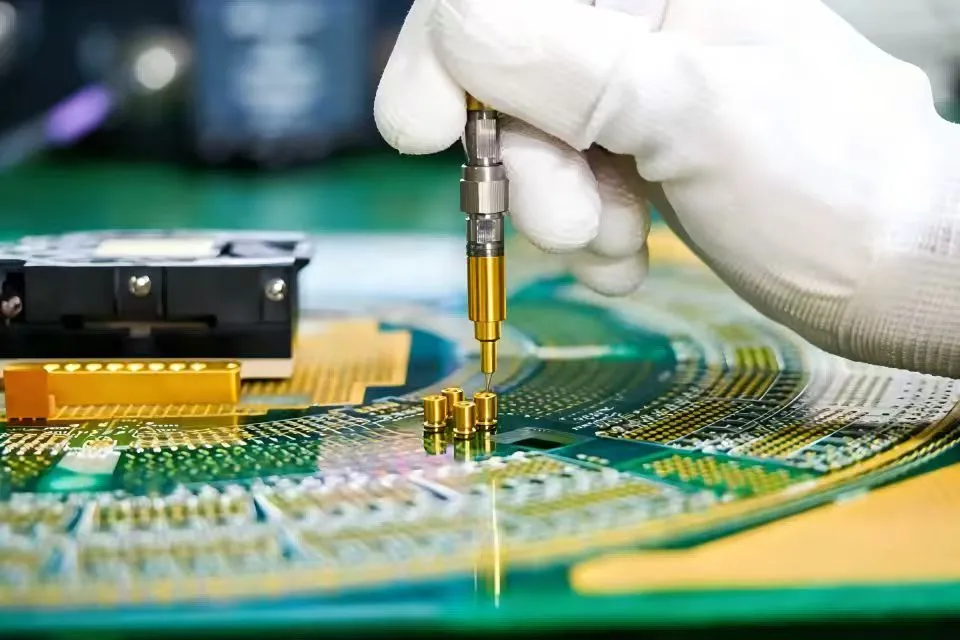

Are Single-Ended Movable Test Probes Suitable for RF Testing?

Single-ended movable test probes are highly suitable for RF testing applications when properly designed and implemented. These precision testing instruments offer excellent signal integrity, controlled impedance characteristics, and reliable contact mechanisms essential for accurate high-frequency measurements. Their spring-loaded design ensures consistent electrical connections while minimizing signal loss and electromagnetic interference. Modern single-ended movable test probes feature specialized materials like beryllium copper with gold plating, providing superior conductivity and durability required for demanding RF environments across telecommunications, semiconductor testing, and wireless device validation applications.

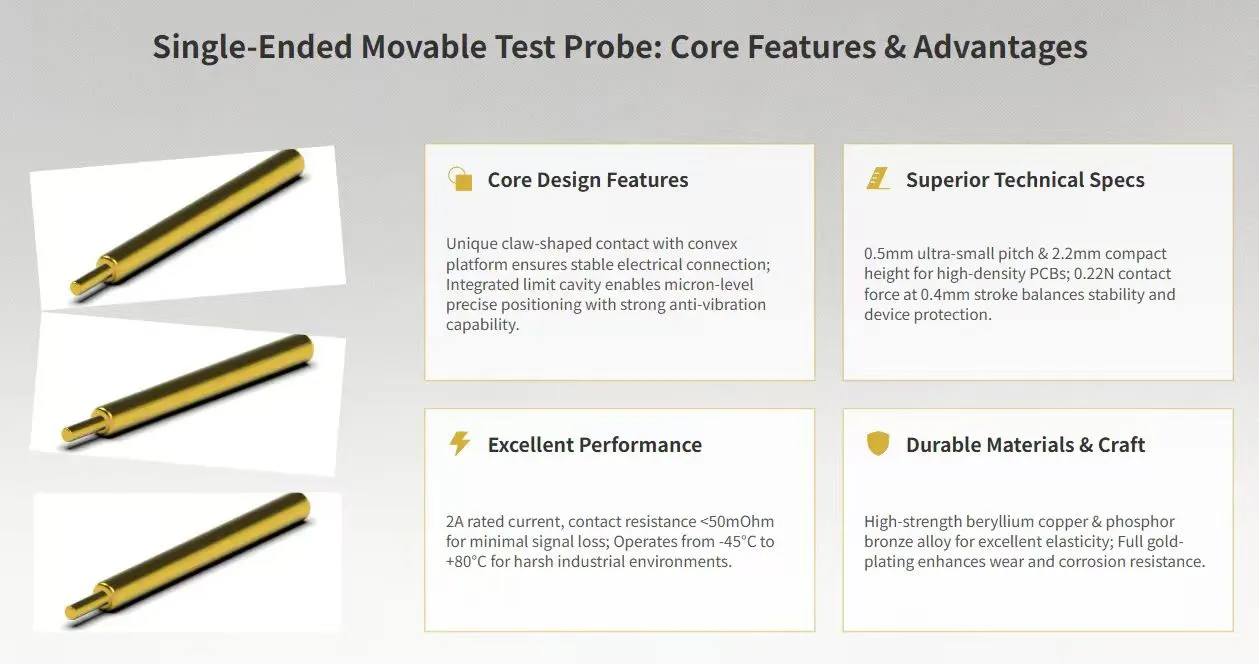

Understanding Single-Ended Movable Test Probes

Single-ended movable test probes are high-tech, precise tools designed for testing signals in RF applications with high reliability. These high-tech testing tools have spring-loaded mechanisms that make sure there is stable touch and that the signal stays strong during the measurement process.

Core Design Features and Specifications

The fundamental architecture of these probes includes several important design features that make them especially useful for RF testing settings. Our single-ended movable test probe at Shaanxi Chuangyu Electronic Technology Co., Ltd. has a unique claw-shaped contact design that makes sure electrical connections are stable and carry electricity well. The unique design includes protrusion fixing structures and setting cavity limits. It also has probe head convex platforms and barrel wall compression protrusions that make sure the structure is stable and the conductivity is high.

With a small 0.5 mm spacing and 2.2 mm height, our probe specifications show technical excellence. This makes it perfect for dense circuit boards and places with limited room. The working stroke force of 0.22N at 0.4mm strikes the right balance between making sure the contact is solid and being gentle with the parts. This way, you won't damage any sensitive circuits while still making sure the connections are strong.

Operating Principles and Mechanical Adaptability

The mechanism works with the help of carefully designed spring systems that can adapt to changes in PCB thickness and surface imperfections. With a 2A current capacity and resistance below 50mOhm, our probes make sure that measurements are exact and that they work well from -45°C to +80°C, so they can be used in a wide range of testing situations.

Material Engineering and Customization Options

The beryllium copper and phosphor bronze used to make these testing tools are very strong and will last a long time. The whole probe is gold-plated, which improves its conductivity, resistance to corrosion, and resistance to wear. This makes it last longer and keeps its stability during long-term tests.

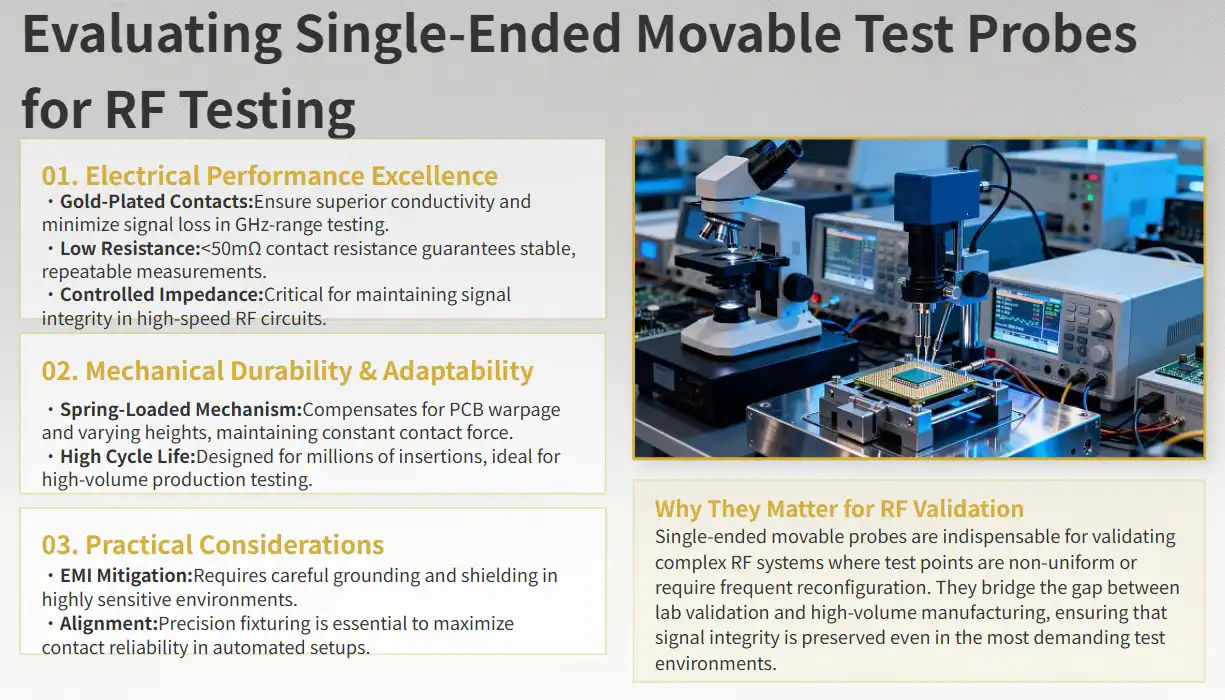

Evaluating Single-Ended Movable Test Probes for RF Testing

To fully understand how single-ended movable test probes work in RF applications, it is important to carefully look at both their pros and cons. These precise tools have a lot of benefits, but engineers need to think about some things when they use them.

Electrical Performance Benefits

These probes have big electricity benefits in places where RF testing is done. The signal quality is still very good because the impedance is managed, and the contact resistance is very low. Every part of this testing solution was carefully thought out by our tech team to keep the integrity of the signal over a wide range of frequencies.

Some important electrical perks are:

• Better conductivity thanks to gold-plated contacts that keep signal degradation to a minimum

• Controlled impedance matching that makes sure high-frequency readings are correct

• Low contact resistance (less than 50mOhm) for stable electrical performance

• Has a great frequency response that works well for modern RF uses

These electrical features allow for accurate measurements while keeping the signal quality during tests, which is very important for validating high-frequency components correctly.

Mechanical Durability and Adaptability

The mechanical design makes it very durable and flexible for a wide range of test point arrangements. The spring-loaded mechanism can handle different PCB thicknesses while keeping the contact pressure constant. This makes sure that readings are accurate in all testing situations.

Potential Limitations and Comparative Analysis

Even though these tools work great in many situations, there are a few things that you should keep in mind. In very sensitive RF environments, electromagnetic interference can sometimes mess up measurements. However, using the right grounding and shielding methods usually solves these problems.

When compared to fixed probes, movable versions give you more options, but they might cause some small mechanical changes. But the pros usually outweigh these small issues, especially in settings with a lot of testing, where being able to adapt is very important.

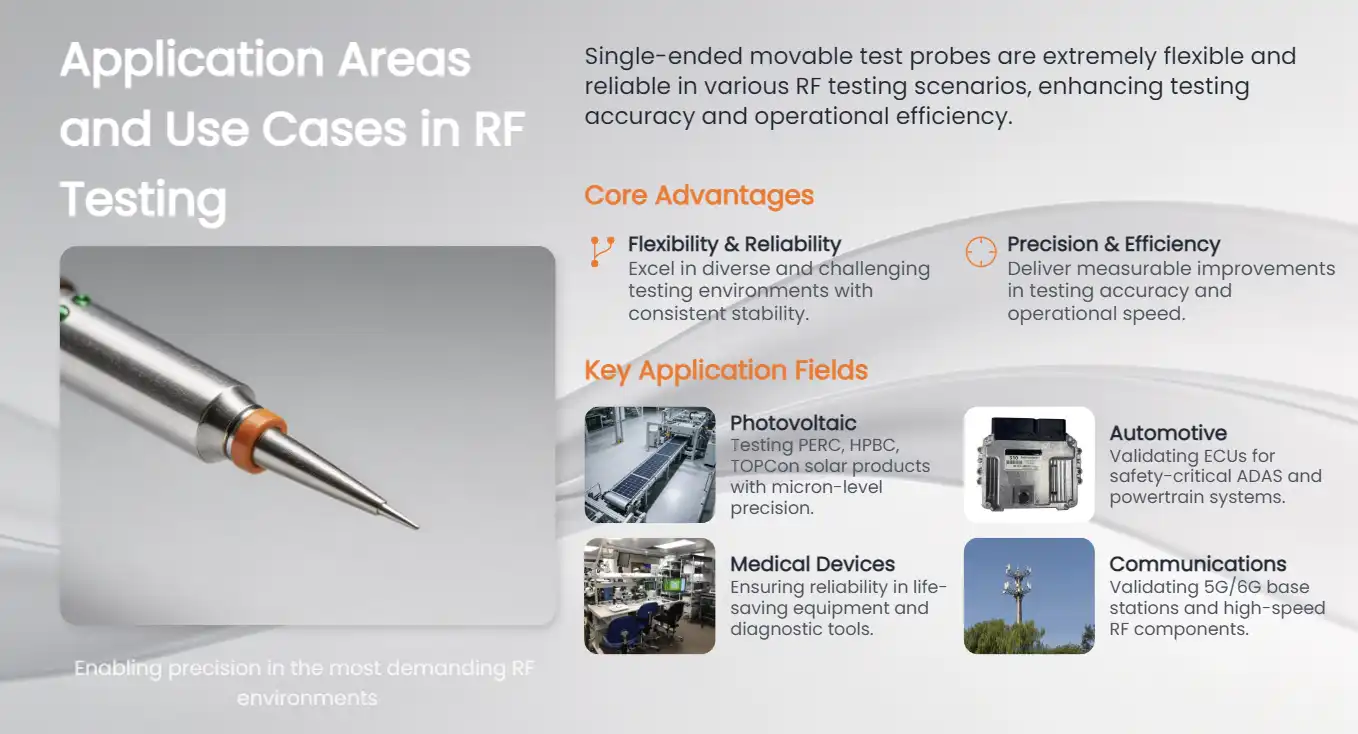

Application Areas and Use Cases in RF Testing

Single-ended movable test probes are very useful in many different industries because they are extremely flexible and reliable in many different RF testing situations. These precise tools make testing more accurate and operations more efficient in a way that can be measured.

Industry Applications and Configurations

Our testing tools are very flexible and can be used effectively in a wide range of challenging situations. Photovoltaic companies use our tools to test their products for PERC, HPBC, and TOPCon, which requires accuracy and dependability. The car industry relies on our probes to check electronic control units and make sure that safety-critical systems work properly.

Manufacturers of medical devices rely on our accuracy for testing important parts, where mistakes can put patients at risk. The high-frequency performance of the single-ended movable test probe makes it much better for testing communication equipment. It makes it possible to accurately validate complex RF circuits and components.

Real-World Implementation Examples

The high level of reliability that our probes consistently deliver in harsh working conditions is needed in military and aerospace applications. Companies in the new energy sector use our solutions to test battery management systems. Accurate readings are needed to make sure the systems work well and are safe.

PCB validation is another important area where these tools work very well. The small size lets you test high-density circuit boards with very little space between test places, and it still has great electrical contact and measurement accuracy.

Performance Improvements and Quality Control

These uses show how single-ended movable test probes help improve quality control in global supply chains that are very strict. Manufacturers can meet tight production plans without lowering quality standards because testing speed goes up a lot while measurement accuracy stays the same.

Buyers can use the probes to make sure that their testing plans are in line with changing technical standards and output needs. This keeps operations cost-effective while still meeting industry standards.

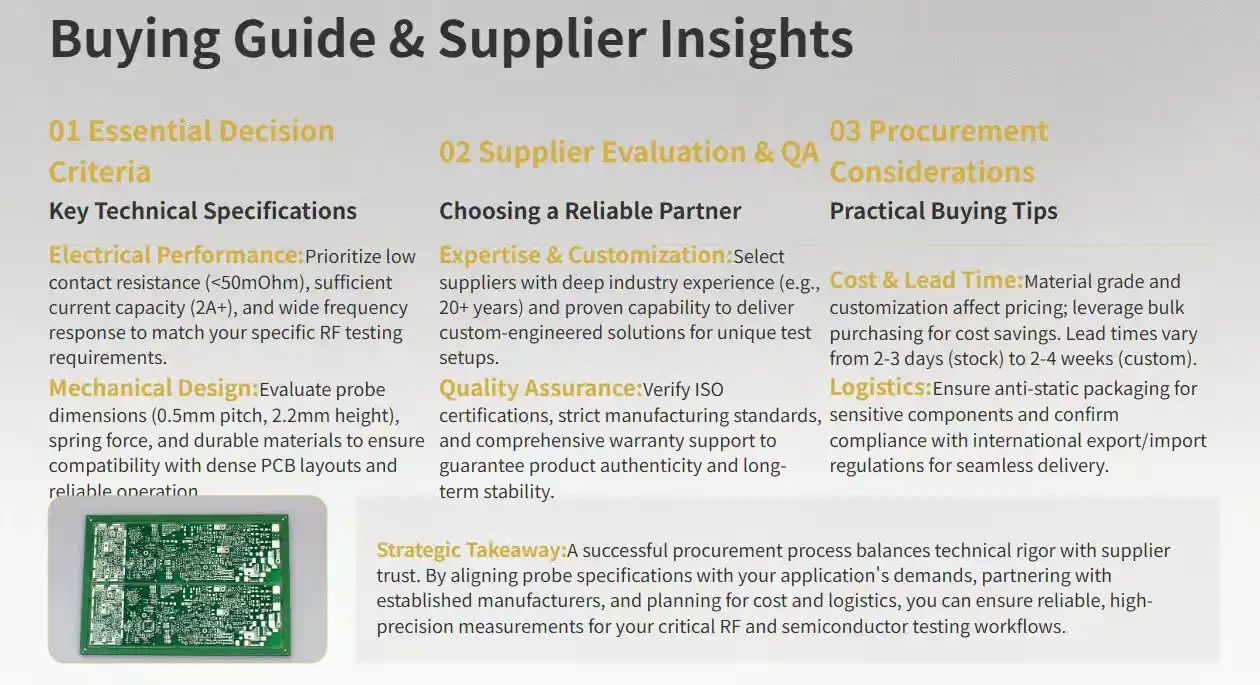

Buying Guide and Supplier Insights for Single-Ended Movable Test Probes

When choosing the right testing equipment, you need to carefully look at the technical specs, the supplier's abilities, and the cost of long-term assistance. To get the best results, procurement pros have to deal with complicated decision criteria.

Essential Decision Criteria

When choosing single-ended movable test probes for RF uses, electrical specifications are still the most important thing to consider. Specific testing needs must be met for the contact resistance, current capacity, and frequency response traits. Our probes can handle 2A of current and have a resistance of less than 50mOhm, making them good for most RF testing situations.

When designing something mechanically, you need to think about things like the probe's size, the spring force, and the materials used. Our probes' 0.5 mm spacing and 2.2 mm height make them suitable for dense circuit layouts while still offering reliable mechanical performance.

Supplier Evaluation and Quality Assurance

Well-known companies like Shaanxi Chuangyu Electronic Technology Co., Ltd. offer a wide range of services, such as expert advice, the ability to customize products, and quality assurances. With almost 20 years of experience in the field, we can guarantee strong output capacity and quality for clients such as top photovoltaic companies and high-end RF communication providers.

Quality certifications and compliance norms are very important when choosing a seller. Authorized sellers make sure that the products they sell are real and offer warranty support. They also give customers access to technical documentation and application support.

Procurement Considerations and Best Practices

Price changes are affected by the prices of materials and the difficulty of making the product. Buying in bulk can often save you a lot of money. Lead times depend on how customized the product needs to be and how much can be made at once. Lead times can be anywhere from normal inventory items to custom-engineered solutions.

When sending something internationally, you need to make sure that fragile electronic parts are properly packaged and that you follow the rules for exporting specialized testing equipment.

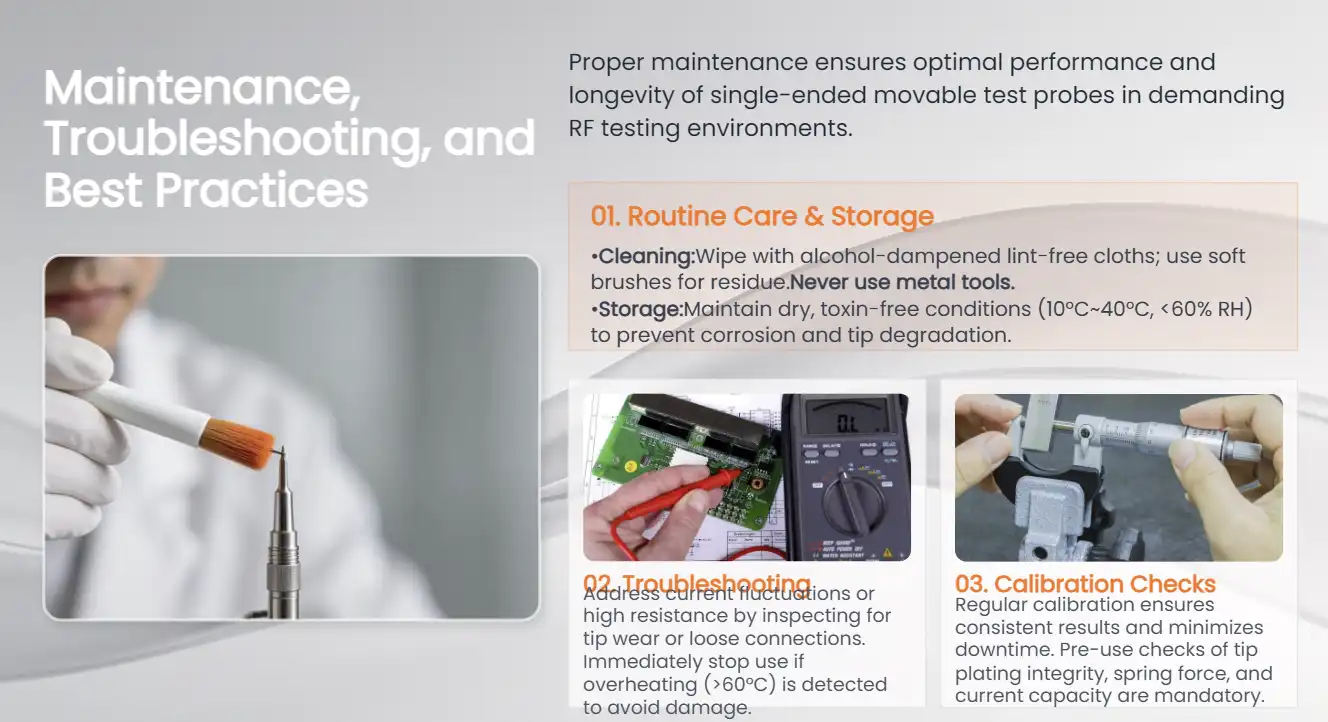

Maintenance, Troubleshooting, and Best Practices

When used in demanding RF testing settings, single-ended movable test probes work best and last longer when they are maintained according to the right procedures. Regular care keeps things from breaking down too soon and keeps measurements accurate.

Routine Maintenance Procedures

To clean and maintain the needle, first soak a lint-free cloth in alcohol and gently wipe the needle tip and needle tube surface. This gets rid of any oxides or test leftovers that might cause plating corrosion. When needle tips get stuck to dirt, soft-bristled brushes work well for gentle cleaning. Metal digging tools, on the other hand, should never be used.

To store something properly, it needs to be kept in a dry place that doesn't have any toxic gases and where the temperature stays between -10°C and 40°C and the humidity stays below 60% RH. Things should be carefully sorted and put away so that they don't come into contact with sharp things that could damage or scratch needle tips or needle tubes.

Troubleshooting Common Issues

If the current changes or the contact resistance suddenly rises during testing, the power must be turned off right away. The probe must then be checked for looseness or needle tip wear. To avoid wrong measurements or damage to the tools, testing shouldn't go on until all the problems have been fixed.

If the surface of the probe gets too hot—above 60℃—it must be stopped using right away and allowed to cool to room temperature before any overcurrent or bad contact problems can be checked.

Performance Verification and Calibration

Test results stay the same over long periods of time when calibration and performance verification processes are done on a regular basis. These practical insights help engineering teams keep probe performance high and downtime to a minimum in RF testing settings with a lot at stake.

During the pre-use check, the needle tips are looked at to make sure they are still in good shape and have the right plating. Verifying the parameters makes sure that the current carrying capacity meets the testing standards and that the spring force works correctly.

Conclusion

Single-ended movable test probes demonstrate excellent suitability for RF testing applications when properly selected and maintained. Their spring-loaded design, controlled impedance characteristics, and superior materials make them ideal for high-frequency measurements across telecommunications, semiconductor, and wireless device testing. While considerations like electromagnetic interference require attention, the benefits significantly outweigh limitations. Success depends on choosing quality suppliers, following proper maintenance procedures, and matching probe specifications to specific application requirements. These precision instruments continue advancing RF testing capabilities while supporting quality control in demanding manufacturing environments.

FAQ

Can single-ended movable test probes handle high-frequency signals without substantial loss?

Modern single-ended movable test probes can handle high-frequency signals well and with little loss if they are built correctly. They are good for checking telecommunications and wireless devices because they have gold-plated contacts and controlled impedance that keep the signal strong across RF frequency ranges.

How do single-ended probes compare cost-wise to fixed and double-ended alternatives?

Cost comparisons depend on specific application requirements and volume considerations. Single-ended movable test probes are often more cost-effective in testing settings that need to be able to adapt to different PCB thicknesses and component configurations, while fixed probes may suit high-volume standardized testing scenarios.

What certifications should buyers prioritize for compliance and reliability?

Essential certifications include ISO quality standards, RoHS compliance for environmental safety, and industry-specific approvals like military specifications for aerospace applications. Suppliers should provide documentation demonstrating adherence to relevant international standards and testing protocols.

What frequency ranges can these probes effectively support?

Quality single-ended movable test probes support frequencies well into the gigahertz range, with specific performance depending on probe design and materials. Our probes handle communication equipment testing and high-frequency component validation across most commercial RF applications effectively.

Partner with Chuangyu for Superior Single-Ended Movable Test Probe Solutions

Enhance your RF testing capabilities with precision-engineered single-ended movable test probes from Shaanxi Chuangyu Electronic Technology Co., Ltd. Our advanced testing solutions deliver exceptional performance across telecommunications, semiconductor, and wireless device applications. With nearly two decades of industry expertise, we provide customized probe solutions, comprehensive technical support, and reliable manufacturing quality that meets international standards. Our Xi'an facility produces over 1 million test probes annually, ensuring a consistent supply for your critical testing requirements. Contact our technical team at chuangyuwz01@cymicrowave.com to discuss your specific application needs and receive detailed specifications. Visit cymicrowave.com to explore our complete single-ended movable test probe manufacturer capabilities and request competitive quotations for your next project.
