Can a 2.92 female to GPO female adapter Simplify Signal Integration?

When engineers and procurement managers question whether a single adapter can really ease signal integration across mismatched millimeter-wave interfaces, the answer is a resounding yes. The 2.92 female to GPO female adapter acts as a bridge between two different connection families, 2.92mm and GPO (SMP) inside a single, small housing. Operating from DC to 40 GHz with VSWR ≤1.35, it removes the requirement for intermediate cable segments, lowers possible failure sites and ensures 50Ω impedance continuity along the signal route. This adapter provides a realistic, high-confidence solution to millimeter-wave signal chain difficulties for R&D engineers, hardware designers and test system integrators.

Understanding the 2.92 Female to GPO Female Adapter: Specifications and Functionality

The quality of an RF adapter is determined by the materials used, the accuracy of the dimensions, and the integrity of the signals in real-world applications. With these goals in mind, the 2.92 female to GPO female adaptor is created.

Cross-Series Interface Design

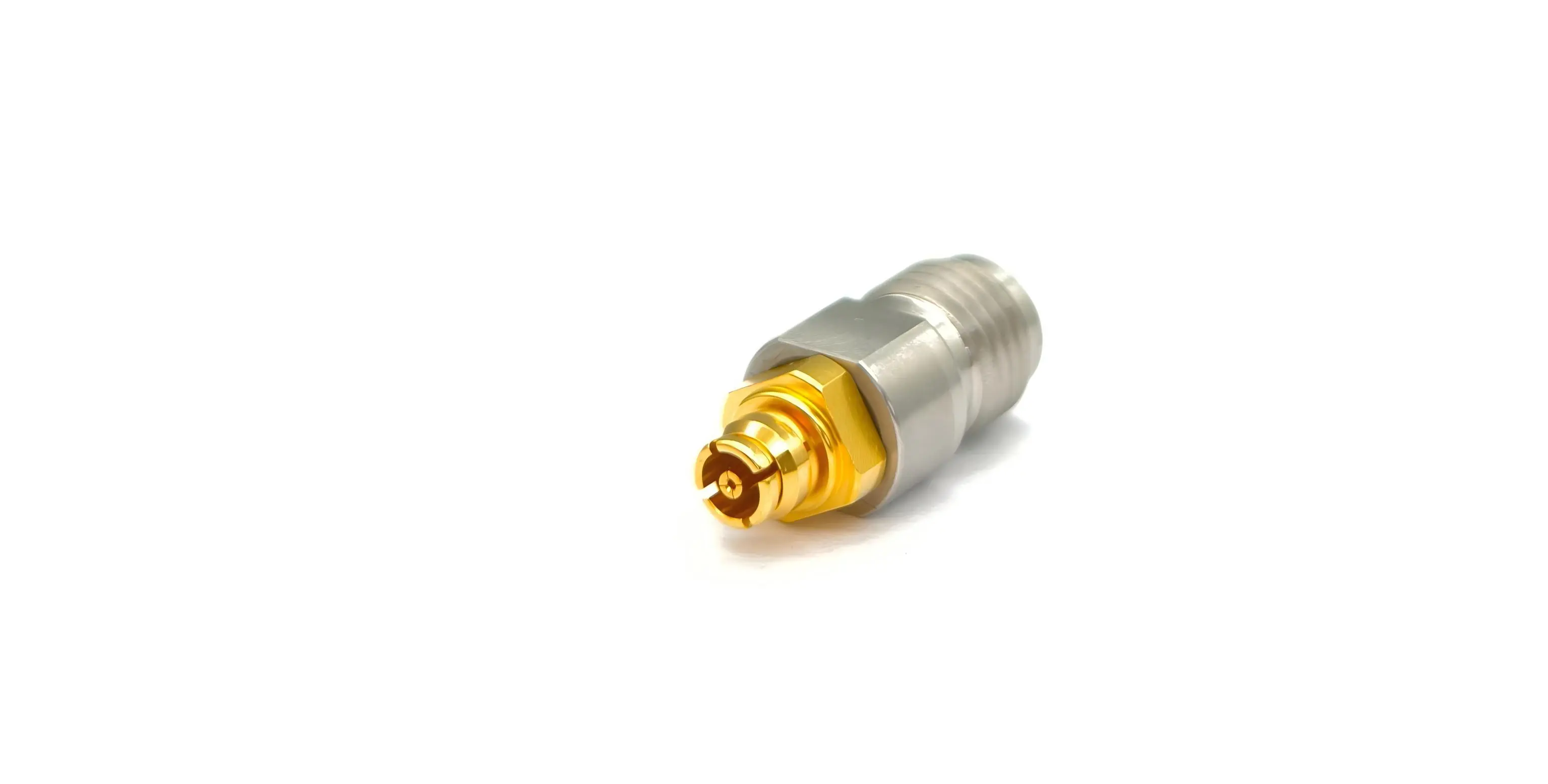

One end has a 2.92mm female socket – a precision microwave interface suitable for use with test equipment such as vector network analyzers (VNA’s) and spectrum analyzers. The other end has a GPO (SMP) female push-in connector, typical for small millimeter-wave installations. The cross-series architecture enables engineers to transfer signals across two apparently incompatible connector families without the need to re-design the board layouts or cable assembly.

Materials That Perform at 40 GHz

For millimeter-wave frequencies the choice of materials is not an option. The exterior conductor is made from passivated stainless steel that has excellent corrosion resistance and dimensional stability under mechanical stress. The inner conductor is gold-plated beryllium copper to decrease contact resistance and maintain low-loss transmission throughout the whole DC-40 GHz spectrum. The dielectric medium is PTFE, which has consistent dielectric characteristics and ensures 50Ω impedance matching throughout the range of working conditions.

Mechanical Reliability Under Repeated Use

The 2.92mm end is torqued to 0.8-1.1 Nm using a torque wrench so as to not over-torque and harm the precise threads. The GPO (SMP) end employs a push-in connection with radial tolerance ≤±0.25mm and axial tolerance ≤+0.25mm. The 2.92 female to GPO female adapter features a plug-and-pull life of ≥500 cycles, making this adapter ideal for high frequency test benches where connections are mated and unmated often.

Comparing the 2.92 to GPO Adapter with Other Common RF Adapters

The proper adapter can only be chosen by knowing what the alternatives really give at high frequencies.

Frequency Range and Signal Integrity

SMA connections are rated at 18 GHz while N-type connectors usually max out at 11 GHz. Neither covers the 5G mmWave or radar frequency ranges needed for contemporary test facilities. In contrast, the 2.92mm interface allows operation up to 40 GHz and the compatibility with the GPO (SMP) push-in interface makes this combination of adapters especially desirable in small, high-density test platforms. The 2.4 mm connection goes up to 50 GHz, but is more expensive, and less often used in general use labs.

Gender Variations and System Design Flexibility

Engineers sometimes find the 2.92 male to GPO female variation as an option. The male-to-female design is suited for direct port connections on instruments having 2.92 mm male outputs. The female-to-female form, however, is a back-to-back connection between two male terminated cables or probes, and is a typical configuration in modular test racks and multi-port signal routing. Knowing what gender configuration your system needs can save expensive purchasing mistakes.

Cost and Durability Considerations

Amphenol and TE Connectivity are reputable manufacturers of millimeter-wave adapters with wide-reaching distribution networks. Pasternack has a good depth of repertoire for typical setups. Competitive advantages of Chuangyu 2.92 Female to GPO Female Adapter include precise manufacturing, OEM customization capabilities, and direct-from-manufacturer cost. This is especially essential for procurement managers procuring in bulk or seeking non-standard configurations.

Practical Guide: How This Adapter Simplifies Signal Integration

Connector incompatibility rather than a component failure is typically the cause of signal chain integration difficulties in millimeter-wave systems. An ill-matched interface creates impedance discontinuities that worsen VSWR and add to insertion loss – often silently during initial set-up, but dramatically during calibration sweeps.The fundamental operational features that make this adapter a dependable instrument for integration are:

• Direct interface conversion: The adapter directly mates 2.92mm test ports to GPO terminated devices or sub-assemblies without the need for extra cable segments that introduce loss and phase variation. Every cable junction eliminated is one less possible location of signal degradation.
• Constant impedance across the band. PTFE dielectric and gold plated beryllium copper inner conductor provide 50Ω continuity from DC to 40 GHz. The VSWR is less than 1.35 throughout this band, which minimizes the reflected signal energy, an important consideration for reliable S-parameter measurements used in 5G base station validation and radar characterisation.
• Consistent mechanical performance: The specified torque range for the 2.92mm end and the push-in alignment tolerance for the GPO end provide technicians a clear set of installation criteria. When connections are made according to established methods, reproducibility of measurements is enhanced, a real advantage in semiconductor RF development and aeronautical component testing.

These benefits are directly related to the integration problems that delay test system activation. This adapter removes the intermediary assembly for testing setups needing to connect a VNA to a GPO-terminated RF module, resulting in a speedier system.Installation best practices worth following:Prior to mating, check the outer conductor for distortion, the gold plating for flaking and the female socket for oxidation. Tighten the 2.92mm end using a calibrated torque wrench. Do not insert at an angle, this might damage the spring contact and defeat the strict tolerances. Push the GPO end in vertically. Keep the test signal in the DC – 40 GHz band. Perform sensitive measurements in a shielded container to reduce EMI pickup.

Choosing the Right Supplier: Procurement Strategies for RF Adapters

Many teams may not realize that procurement selections for precision RF components matter more. The manufacturing process, quality certifications, and customization capabilities of a supplier significantly impact system performance and project schedules.

Chuangyu is located in Xi'an Chang'an Innovation Technology Industrial Park, and has special manufacturing lines for coaxial connectors, RF cable assemblies and waveguide components. The plant has an area of 1,000 m2, of which 200 m2 are devoted to research and development. The annual manufacturing capacity is 500,000 RF components, which is sufficient to accommodate prototype quantities and volume orders. Chuangyu’s millimeter wave connection devices exceed international standards and are used in the military, medical, telecommunications and semiconductor sectors.

If you are investigating any 2.92 female to GPO female adapter provider, ensure the device has documented VSWR data, insertion loss curves across the rated frequency range and material certifications. The purchase of products from OEM and custom-configured manufacturers such as Chuangyu gives additional options when catalog parts are not suitable for certain dimensions or performance criteria. Direct contacts with manufacturers and bulk pricing models save procurement lead times and insulate against supply chain interruptions.

Conclusion

The 2.92 female to GPO female adapter provides quantifiable value in 5G testing, semiconductor characterization, aerospace RF validation and modular test system integration. Its DC–40 GHz working range, VSWR ≤1.35, gold-plated beryllium copper inner conductor, passivated stainless steel outer body and PTFE dielectric make it a technically sound solution for engineers who cannot afford signal integrity sacrifices. The procurement managers appreciate well specified standards, established mechanical tolerances and the possibility of OEM customization. When the aim is dependable, repeatable signal integration at millimeter-wave frequencies, this adaptor is a must in the signal path.

FAQ

What frequency range does this adapter support?

The adapter operates from DC to 40 GHz, covering 5G sub-6 GHz and mmWave bands, microwave communication frequencies, and radar testing ranges. This range makes it compatible with most modern VNAs, spectrum analyzers, and signal generators used in R&D and production test environments.

How do I verify compatibility with my existing test system?

Check whether your instrument port uses a 2.92mm interface and whether the device under test uses a GPO (SMP) push-in connector. Confirm the 50Ω impedance requirement matches your system. If you work with non-standard configurations, Chuangyu's engineering team can assess your setup and recommend a compatible solution.

Are custom configurations available?

Yes. Chuangyu supports OEM and custom non-standard adapter solutions. Engineers with specific dimensional, plating, or connector gender requirements can submit specifications directly for evaluation. Custom orders accommodate both small prototype runs and large-volume production.

How long does the adapter last under frequent mating cycles?

The GPO push-in end is rated for ≥500 plug-and-pull cycles. Following the recommended inspection, cleaning, and storage procedures—anhydrous alcohol cleaning, dry shielded storage at -10°C to 40°C, humidity ≤60% RH—extends service life and maintains measurement integrity.

Partner with Chuangyu for Your Next RF Integration Project

Chuangyu manufactures precision 2.92 female to GPO female adapters built to perform at every stage of your signal chain. As a trusted 2.92 female to GPO female adapter supplier, we offer competitive pricing, OEM customization, and direct technical support. Visit cymicrowave.com to browse datasheets and product specifications, or contact our engineering team at chuangyuwz01@cymicrowave.com to request samples or discuss your project requirements.
