Where Should You Use SMA 50 ohm termination in RF Systems?

You are well aware of how a single mismatched component may taint a whole signal chain if you deal with radio frequency systems. One of those fundamental components that engineers often ignore until something goes wrong is an SMA 50 ohm termination. A correctly rated 50 ohm load is used to absorb leftover signal energy at the end of a transmission line, preventing harmful reflections, suppressing standing waves, and safeguarding sensitive upstream equipment. Knowing precisely where and how to deploy this component distinguishes a reliable design from an unexpected one, whether you are creating radar subsystems, integrating a 5G front-end module, or calibrating a vector network analyser.

Understanding SMA 50 Ohm Termination: Purpose and Technical Essentials

What Makes 50 Ohms the Standard?

The characteristic impedance of coaxial transmission lines is standardised at 50 ohms in the majority of RF and microwave systems. This figure, which is based on coaxial cable theory, shows a workable compromise between power management and signal loss. The reflection coefficient is 0 when the termination impedance and system impedance are identical, indicating that no signal returns to the source. A detectable mismatch loss is introduced, and measurement precision or link budget is reduced when a mismatched load—even a 75 ohm termination, which is typical in video systems—is substituted.

Core Structure and Electrical Performance

Using a tantalum nitride resistive layer produced on an aluminium nitride substrate, the SMA 50 ohm termination I suggest for demanding conditions is constructed around a 50Ω high-power resistor element. Excellent heat conductivity and long-term resistance stability are provided by this combination. A black anodised aluminium heat dissipation enclosure with a multi-fin design, a brass gold-plated SMA male connection, and a polytetrafluoroethylene insulating medium that preserves dielectric constancy over temperature cycles are all integrated into the assembly.

Before making a purchase, you should consider the following essential mechanical and electrical requirements:

• The majority of microwave test and communication applications inside this band may benefit from its frequency coverage, which ranges from DC to 18 GHz.
• VSWR: ≤1.25 across the whole rated frequency range, guaranteeing low reflections while performing signal routing and calibration duties.
• Power capacity: 5W at 125°C and 10W continuously at 25°C, with an instantaneous peak tolerance of up to 1000W.
• Connector durability: A calibrated torque wrench is required to apply the torque standard of < 1.5 N · m, and the brass body can withstand ≥500 mating cycles.
• Operating temperature range: -55°C to +125°C, including outdoor, laboratory, and industrial deployment situations.

According to these standards, this 50 ohm load is not a commodity but rather a very high-reliability component. When the termination is located within a tightly packed chassis with restricted airflow, the multi-fin heat dissipation design and high thermal conductivity metal encapsulation are crucial.

Common Applications of SMA 50 Ohm Termination in RF Systems

Microwave Test and Measurement

A precise terminal load is essential to any calibration process involving a vector network analyser or signal generator. During one-port calibration, the SMA 50 ohm termination acts as the reference standard, absorbing the incoming wave so the analyser can determine the device's actual reflection coefficient. The VSWR ≤1.25 rating of this load maintains calibration errors within acceptable ranges at frequencies up to 18 GHz, when even connection shape influences measurement uncertainty.

5G Base Stations and Microwave Radar

High-power RF subsystems used in contemporary 5G base station topologies need dependable dummy loads for commissioning, maintenance, and switching. In this situation, a poorly rated termination may result in reflected energy that damages power amplifiers or distorts the performance of nearby channels. Similar to this, a 50 ohm impedance-matched load serves as a secure energy sink during transmit-receive switching cycles in microwave radar transmission systems. This component is a sensible choice for these demanding situations because of its 10W continuous power rating and peak tolerance.

Industrial and Research Laboratories

In R&D settings, high-power RF subsystems often produce signal levels that might harm unprotected ports. To properly absorb test signal energy and enable repeated measurements without running the risk of equipment damage, researchers depend on a precise 50 ohm coaxial termination. This load is equally appropriate for benchtop laboratory settings and automated test equipment racks due to its sturdy mechanical structure and broad working temperature range.

Comparing SMA 50 Ohm Terminations with Other Termination Types

The performance of RF terminations varies, and choosing the incorrect kind compromises signal integrity and takes time.

For video distribution systems where cable losses at lower frequencies favour a greater characteristic impedance, a 75 ohm SMA termination is intended. It produces a reflection coefficient of around 0.2 when inserted into a 50 ohm system, resulting in a return loss of only 14 dB. In situations involving a high-power gearbox or precise measurement, that degree of mismatch is intolerable.

Although BNC and N-Type terminations have different connection geometries, frequency ceilings, and physical sizes, they provide comparable impedance-matching functions. BNC loads are widespread in historical instruments and are feasible at frequencies lower than 4 GHz. Although they take up more panel area, N-Type terminations can tolerate greater power levels than SMA connections. Because it preserves signal integrity up to 18 GHz while taking up the least amount of board or chassis space, the SMA format continues to be the most popular option for small, high-frequency assemblies.

100% of the incident energy is reflected in phase by an open circuit and 100% out of phase by a short circuit. Both situations should only be used for intentional calibration standards, never for operational port protection, since they are detrimental to live RF systems.

How to Choose and Procure SMA 50 Ohm Terminations for Your RF Systems

Record your system's maximum continuous power output, peak power envelope, frequency range, and operating temperature before getting in touch with any SMA 50 ohm termination provider. Verify that the VSWR specification of the termination you are assessing is measured not just at one frequency point but over the whole rated frequency range. Relevant markers of manufacturing discipline include certifications like MIL-spec-adjacent quality practices and RoHS compliance.

Prominent producers of 50 ohm coaxial loads with different power ratings, frequency ceilings, and connection types include Pasternack, Mini-Circuits, Amphenol RF, and TE Connectivity. Long-term stability is directly impacted by variations in housing construction, resistive element technology, and substrate material. Instead of just requesting nominal requirements, procurement teams should obtain test data or datasheets that contain full-band VSWR charts.

Consider lead times, minimum purchase quantities, and whether the supplier keeps safety stock on hand for quick shipping when placing large orders. Chuangyu's Xi'an facility continues to produce 500,000 RF components annually, allowing for reliable delivery even on large orders.

Best Practices: Installation and Usage Guidelines for Optimized Performance

Power and Connection Protocols

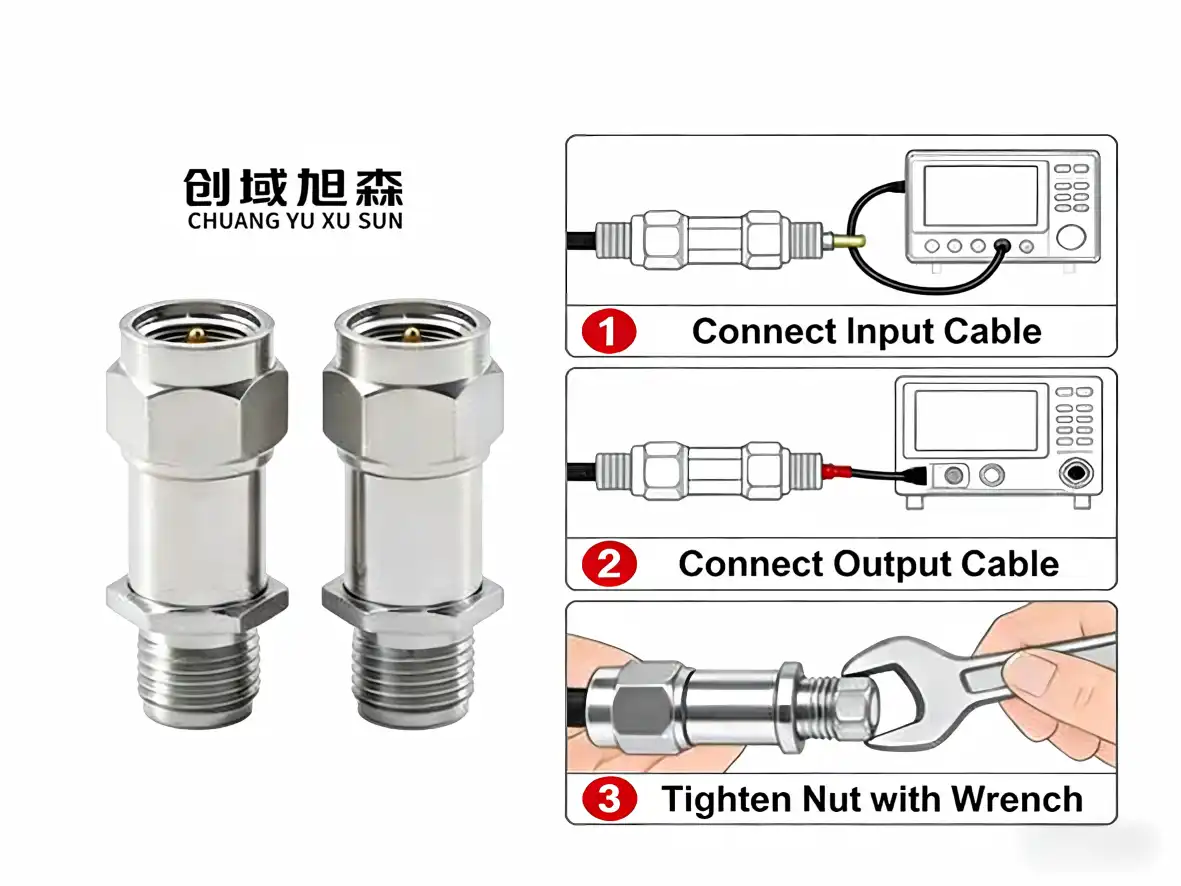

Never go above the DC to 18 GHz operational frequency range, and strictly restrict input power to < 10 W at 25°C. To guarantee coaxial alignment and avoid distortion of the inner conductor or insulating medium during mating, use a special torque wrench calibrated to < 1.5 N · m. During insertion, do not immediately apply rotational force to the connection body.

Install an IP67-rated sealing cover over the connection interface to prevent moisture and corrosive gases in areas with relative humidity levels above 60%.

Cleaning and Storage

After every 15 mating cycles, clean the connector end face with an isopropyl alcohol swab, paying particular attention to any oxidation on the gold-plated surface. Never use metal tools near the insulating medium interface.

When the termination is idle, store it at -20°C to +60°C with relative humidity ≤50%. Conduct a monthly VSWR pre-test; if the reading exceeds 1.25, return the unit to the factory for recalibration. After accumulated operating time exceeds 1,000 hours or following any significant mechanical shock, perform a full-band network analyzer sweep to verify that power capacity and standing wave ratio still meet specifications.

Conclusion

A well-chosen SMA 50 ohm termination protects signal integrity, safeguards upstream components, and keeps calibration traceable. The component described here, built on a tantalum nitride resistive layer, aluminum nitride substrate, and multi-fin aluminum housing, delivers 10W continuous power handling, VSWR ≤1.25, and reliable performance from DC to 18 GHz. Whether your application sits in a test lab, a 5G base station, or a radar system, using the correct 50 ohm coaxial load is not optional. It is a fundamental engineering decision with direct consequences for system reliability.

FAQ

What happens if I use a 75 ohm termination in a 50 ohm system?

The impedance mismatch produces a reflection coefficient of approximately 0.2, reducing return loss to around 14 dB. In a calibration setup, this corrupts measurement reference data. In a live transmission link, reflected energy re-enters the amplifier chain and degrades output linearity or, in high-power scenarios, risks component damage.

Is an SMA termination suitable for frequencies above 18 GHz?

The SMA interface has a theoretical upper frequency limit near 18 GHz due to the onset of higher-order propagation modes inside the connector geometry. For applications above 18 GHz, consider the 1.85mm connector format, which supports operation up to 67 GHz with VSWR ≤1.35 and a 5W power rating at 25°C. Chuangyu supplies both formats.

How do I verify product authenticity before bulk procurement?

Request full-band VSWR plots and a calibration report tied to a traceable standard. Inspect the resistive element substrate material listed in the datasheet; tantalum nitride on aluminum nitride is a verifiable high-performance specification. Sourcing directly from the manufacturer or an authorized SMA 50 ohm termination supplier eliminates counterfeit risk and ensures post-sale technical accountability.

Partner with Chuangyu for Precision RF Termination Solutions

Chuangyu delivers high-reliability SMA 50 ohm termination components engineered for demanding microwave, 5G, and test environments. As a trusted SMA 50 ohm termination manufacturer with nearly two decades of RF component expertise, our Xi'an production facility ships 500,000 RF components annually to defense, medical, and telecommunications clients worldwide. Custom configurations and bulk pricing are available. Reach our engineering team at chuangyuwz01@cymicrowave.com or visit cymicrowave.com to request a quotation today.
