What Is an SMA to SMA RF Extension Cable Used For?

An SMA-to-SMA RF extension cable serves as a crucial interconnect solution that extends radio frequency signal paths between RF equipment, antennas, and testing instruments while maintaining signal integrity. These precision-engineered cables feature SubMiniature version A connectors on both ends with 50-ohm impedance matching, enabling reliable signal transmission across DC to 8 GHz frequency ranges. Engineers rely on these extension cables daily in wireless infrastructure deployments, laboratory testing setups, satellite communication systems, and industrial automation environments where flexible yet dependable RF connectivity proves essential for system performance.

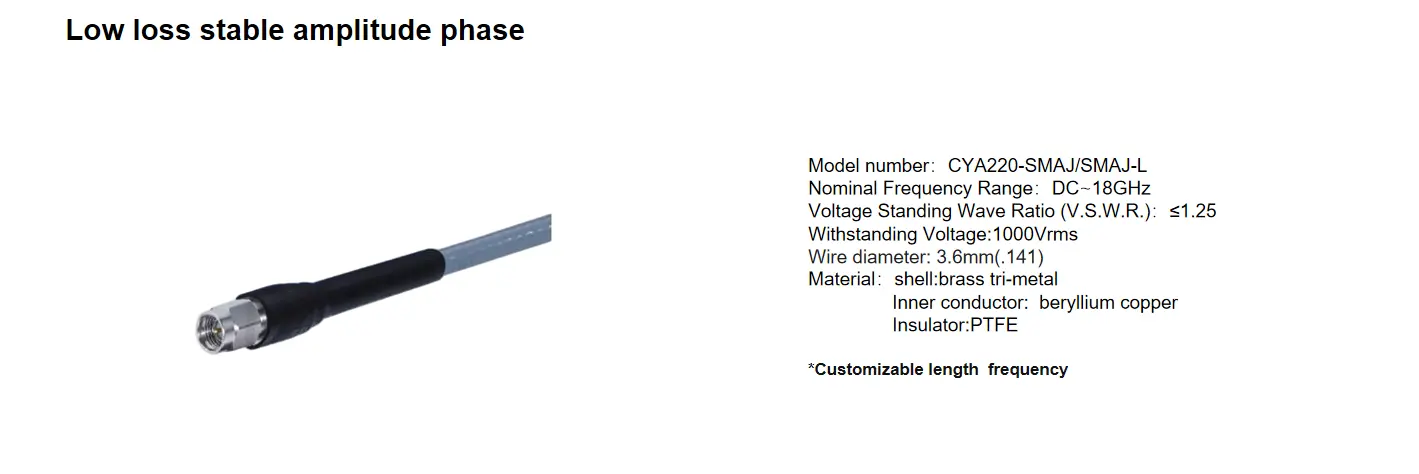

Technical Specifications and Key Considerations

Frequency Performance and Cable Construction

For frequencies up to 8 GHz, the LMR195 SMA-to-SMA RF extension cable type is the best balance of flexibility, loss characteristics, and cost-effectiveness. When compared to solid polyethylene alternatives, the foam polyethylene dielectric works better because it lowers the effective dielectric constant. This leads to a lower signal velocity factor and less attenuation per meter.

Working within the given frequency range guarantees consistent results. When you go beyond 8 GHz, you run into problems with mode propagation and huge increases in insertion loss that hurt the performance of the system. The solid, bare copper center conductor is both mechanically stable and has great conductivity. These are both very important when wires are bent over and over again during installation or maintenance.

Impedance matching at 50 ohms along the whole signal line stops power echoes and standing waves. When you measure the voltage standing wave ratio (VSWR), good extension cords always get readings below 1.3:1 across their working range. This means they have very little mismatch loss.

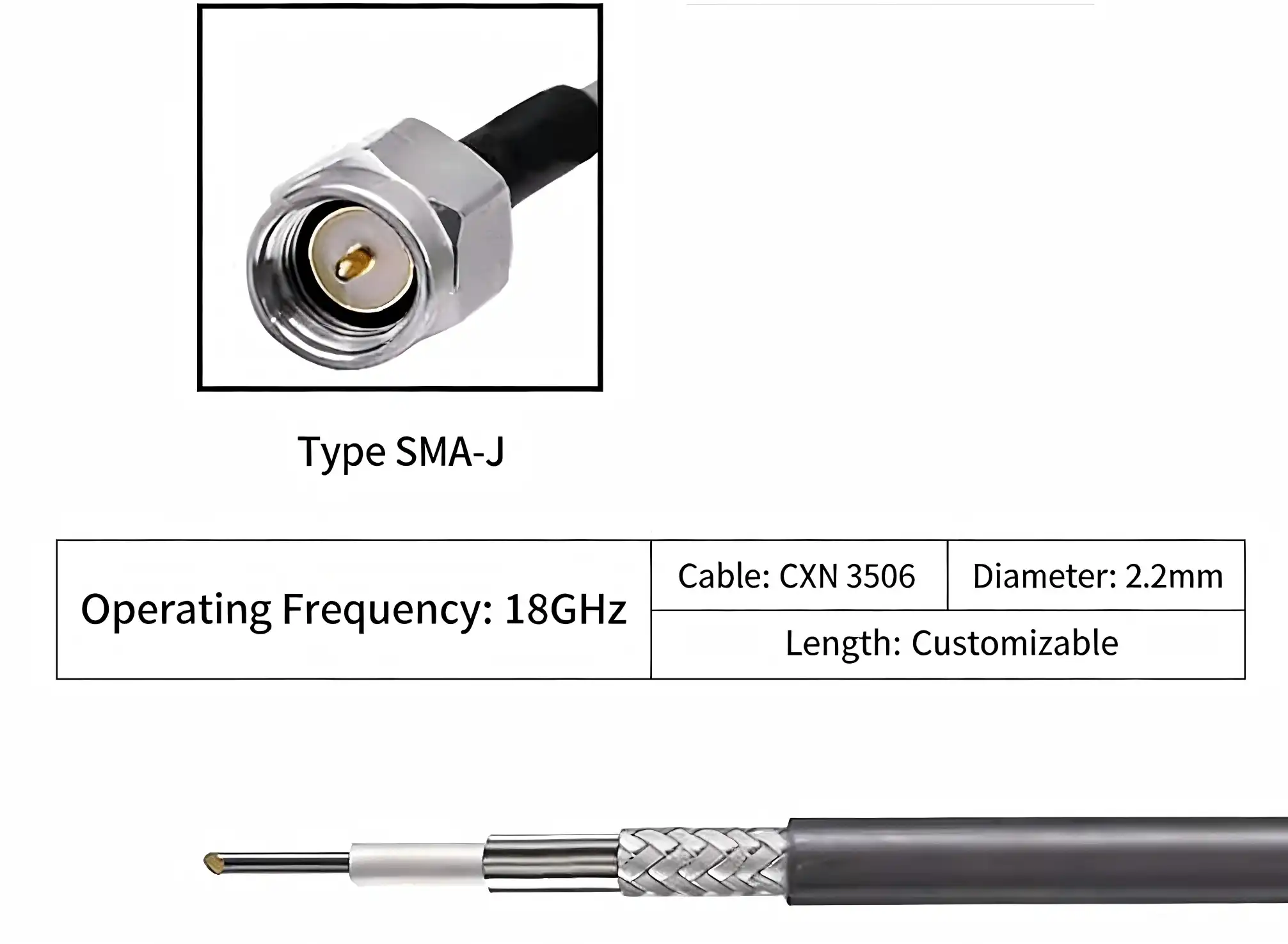

Connector Quality and Durability Factors

The SMA connectors in these units are made of brass bodies with gold-plated center contacts. This is a cost-effective way to improve electrical performance, corrosion protection, and cost-effectiveness. The gold plating stops oxidation, which would raise the contact resistance over time if it happened, especially in wet or salty places. Most housings are made of passivated stainless steel or nickel-plated brass, which are chosen because they are strong and stable over time.

SMA connections are different from push-on options because they have a threaded coupling device that provides uniform contact force and environmental sealing. When you use the right amount of torque—usually 3 to 5 inch-pounds—you can make sure the connections are strong without overstressing the threads. When treated properly, the plug-and-pull lifecycle goes over 1,000 mating cycles. This means that these systems are good for labs where setups change often.

Engineers have to think about insertion loss, which increases with distance, before they choose wire lengths. Around 0.26 dB loss per meter is seen in LMR195 cable at 2.4 GHz. At 5.8 GHz, this number rises to 0.42 dB per meter. To keep enough signal gaps, system link budgets need to take these costs into account.

Environmental and Installation Parameters

The minimum bending radius specification keeps the internal cable structure from getting damaged while it is being set up and used. A single bend needs a radius of at least 0.5 inches, and repeated bending needs a radius of at least 2 inches to keep the insulation and conductors from wearing out. Breaking these rules might not lead to failure right away, but it does damage the protective braid and center wire more quickly, which speeds up long-term reliability problems.

Extreme temperatures and water can be hard on cable assemblies that are used outside. The polyethylene jacket doesn't break down when exposed to UV light, and it stays flexible in the temperature ranges that are common in telecoms equipment. When installations need extra protection from the environment, adding waterproof O-rings or heat-shrink boots at the connector interfaces stops water from getting in and damaging the contacts or dielectric performance.

The overall diameter of 0.195 inches makes it possible to route through equipment enclosures and cable management systems while keeping the structure strong. This narrow shape is especially useful in equipment racks with a lot of equipment because it saves room and lets more cables fit.

Comparison and Decision-Making: Choosing the Right Extension Solution

SMA Versus RP-SMA Connector Types

It's important to know the difference between standard SMA connectors and reverse-polarity RP-SMA connectors to avoid making mistakes that cost a lot of money. Standard SMA male connectors have an internal threaded coupling nut with a center pin that sticks out. Female connectors, on the other hand, have external threads and a center socket that is recessed. RP-SMA changes the gender of the center contact while keeping the same thread arrangement. This was done to stop people from making changes to equipment without permission.

To meet legal requirements, most Wi-Fi equipment uses RP-SMA connections. Test equipment and traditional RF infrastructure, on the other hand, mostly use standard SMA connectors. To avoid the delays and costs that come with returns or adapter purchases, procurement teams must make sure that connector gender standards are met before placing an order.

Evaluating Cable Type Trade-offs

Beyond the LMR195 specification, choices about which SMA RF extension cables to use are based on the particular needs of the application. Laboratories that care a lot about measuring accurately might choose low-loss options like LMR400, even though they are less flexible. On the other hand, field service workers like the ease of handling that comes with more flexible builds, even if they have a little more attenuation.

When compared to solid shield designs, braided shield construction is more flexible, which makes it better for situations where SMA-to-SMA RF extension cables need to be moved around or set up again and again. The tin-plated copper braid keeps the electricity flowing through the woven structure and stops corrosion. Solid shield constructions offer the best shielding performance and the lowest loss characteristics, but they are less flexible. This is a trade-off that is acceptable for permanent installations between fixed equipment locations.

Different types of cables have different levels of temperature stability. In general, foam dielectrics work better than solid ones. Foam polyethylene's cellular structure doesn't change much when it gets hot or cold, so its electrical properties stay the same across a wide temperature range. This quality is very important for precise measurement tasks where phase changes caused by temperature would affect the accuracy of the test.

Quality Indicators and Brand Selection

Manufacturers with a good reputation give detailed specs, such as insertion loss across frequency, VSWR performance, shielding effectiveness, and power handling. A lot of detailed technical documentation is a sign of strict engineering and quality control. Test results from measurements made with a vector network tester show that the claimed specs are accurate.

Certifications for manufacturing, like ISO 9001 quality management systems and RoHS compliance, show that there are set ways to make sure that production is consistent and that the company is responsible for the environment. To meet strict quality standards, AS9100 certification is needed for defense and aircraft use.

The terms of the warranty show that the manufacturer trusts the product to work well. Standard warranty periods of one to two years cover problems with the way the product was made. Some providers offer longer coverage for parts that will be used in important infrastructure. Full-service suppliers are different from commodity distributors because they offer technical support and custom assembly services.

Procurement Guide for Sourcing Quality Extension Cables

Finding Reliable Supply Partners

How you source things depends on how many you need to order, how customized they need to be, and when you need them delivered. Large original equipment makers (OEMs) often work with cable assembly experts who can offer custom lengths, specialized fittings, and low prices for large orders. Usually, these partnerships include agreed-upon quality standards, price structures, and regular shipping plans that help with just-in-time manufacturing.

System integrators and testing labs that don't need a lot of units find that specialized RF distributors keep common configurations in stock so they can get them quickly. Standard lengths of 0.3 to 5 meters with both male-to-male and male-to-female ends are often kept in stock by these distributors. For project-based procurement, the freedom to order different amounts without having to meet a minimum order requirement is helpful.

Online markets have made it easier to get RF components, but buying workers need to be careful when checking the quality. When it comes to accountability, established distributors with physical locations and technical support are better than anonymous marketplace sellers. Before agreeing to large production runs, it's a good idea to get test results, certifications, and a review of a taste of the product.

Evaluating Total Cost of Ownership

The unit price is only one part of the procurement value analysis. Lead times can change project schedules and may justify charging more for faster production or stock availability. Shipping costs for foreign orders can have a big effect on landing costs, especially for low-value, high-volume orders where freight costs go up a lot.

Return policies and guarantee terms protect you from getting goods that don't work as expected. Even if the price seems a little higher at first, buying from suppliers with long return windows and easy warranty claim processes lowers the risk of buying from them. Dealing with broken parts often costs more than the savings from picking the cheapest source. These hidden costs include technician time, project delays, and rework.

When you make a bigger promise, volume price systems reward you with bigger discounts. Purchasing managers should look at how much something is used each year to figure out the best amount to order so that the costs of keeping the goods are balanced with the savings per unit. Some sellers let you place blanket purchase orders with scheduled releases, which lets you get big discounts while reducing the amount of inventory you need to keep on hand.

Customization and Technical Support Advantages

There are many good uses for standard cable assemblies, but sometimes the needs of a specific system mean that custom solutions are needed. With custom cable lengths, you don't have to worry about the extra cable that can get tangled up and cause signal loss. Combinations of specialized connectors, such as SMA with other RF connection families like N-type or BNC, allow direct merging without the need for extra adapters that add loss and reflection points.

We know that off-the-shelf goods aren't enough for precise RF connection solutions here at Shaanxi Chuangyu Electronic Technology. Our engineering team works with clients to make unique wire assemblies that work best in certain frequency bands, environments, and mechanical needs. Our production skills include RF wire assemblies, precision connectors up to 110 GHz, and specialized test tools. We offer complete solutions that are backed by strict testing processes.

Our Xi'an factory combines precise manufacturing with quality control methods that have been improved over the past twenty years. Before it is shipped, a vector network tester checks each unit for insertion loss, return loss, and VSWR performance. This process of checking makes sure that the goods that come to your building are up to date and work well for the uses you describe.

We are a key partner for companies that need reliable RF connectivity solutions because we can customize our products, have a lot of technical knowledge, and have quality systems that have been in place for a long time. Our team gets the products and help you need to keep your projects on track, whether it's for new product development, production line needs, or field service operations.

Proper Usage and Maintenance Best Practices

Installation Guidelines That Preserve Performance

How you handle connectors has a big effect on how reliable they are in the long run. When technicians are mating and unmating, they should never pull on the cable jacket. Instead, they should hold the metal connector body. This practice stops stress from moving to the internal wire and shield terminations, which could lead to connections that stop working all the time or connections that only work sometimes.

To avoid cross-threading, which damages both the connector and the mating interface, you need to be very careful when engaging the thread. Making sure the connector shaft is straight before adding rotational force ensures the threads contact smoothly. Tightening should be hard but not too much. Too much torque can damage connection bodies, strip threads, or crush dielectric materials inside. When you under-torque, the contact pressure changes, which shows up as variable insertion loss and higher VSWR.

The frequency of 8 GHz and the voltage of 1000 VDC should never be pushed past their rated limits. If you go beyond these limits, the dielectric could break down, the connectors could flash, and the wire could be permanently damaged. Derating based on ambient temperature and duty cycle protects against failures caused by heat in high-power applications.

Cable Routing and Environmental Protection

Following the minimum bend radius rules during installation keeps things from breaking right away and increases their useful life. Cable routes should stay away from tight spaces and sharp corners that make it hard to bend with a small radius. Putting cable supports in the right places at the right times stops the cables from sagging, which causes stress points at the connection contacts.

When installations are outside, they need extra protection against water getting in. The polyethylene jacket protects against the environment in a basic way, but adding heat-shrink boots or silicone sealant to the connecting surfaces makes them completely waterproof. In seaside areas, where salty moisture speeds up corrosion, this extra defense is especially important.

When using cable ties, they should not be over-tightened because they can deform the internal structure and squeeze the cable jacket. Velcro straps hold things in place well and are less likely to be damaged than ratcheting zip ties, which can be damaged if they are over-tightened by an inexperienced installer.

Maintenance Protocols for Long-Term Reliability

Cleaning connections on a regular basis gets rid of dust, oils, and other contaminants that slow down electrical performance. Anhydrous ethanol mixed with cotton swabs cleans both male pins and female holes well without leaving behind any residue. To keep the cleaning motion from pushing dirt deeper into the interface, it should go from the center of the connector outward.

Problems can be found before they become system failures by visually inspecting the system as part of regular maintenance. Cracks or abrasions in the cable jacket could mean that water is getting in or that the shield is damaged. Deformation of the connector body indicates that it was over-torqued or under mechanical stress in the past. Discoloration around connector interfaces could mean that the device is overheating because of too much power or bad connections.

Conditions in storage affect parts that are ready to be used or kept as spares. Controlled settings with temperatures between 15°C and 35°C and relative humidity levels between 40 and 60% keep dielectric and jacket materials from breaking down too quickly. Cables should be stored out of direct sunlight and away from chemicals. They should be wound up loosely and have diameters that are larger than the minimum bending radius.

Using vector network monitors to check test tools gives you objective performance data. By measuring VSWR, insertion loss, and return loss over the operating frequency range, degradation trends can be found before they affect how the system works. By taking baseline measurements at installation, you can compare them during regular testing to see how performance has changed. Professional calibration once a year is a good way to keep high-frequency and precise measurement applications accurate.

Conclusion

Choosing the right SMA RF extension cables with SMA connectors has a direct effect on the long-term upkeep needs, measurement accuracy, and stability of the RF system. When you use high-quality plugs, build your SMA to SMA RF extension cables correctly, and follow best installation practices, you can be sure that the signal will stay strong in a wide range of demanding situations, from building base stations to making precise lab measurements.

Working with well-known suppliers who offer detailed technical specs, strict quality control, and quick support makes buying easier and lowers the total cost of ownership. Spending money on good connection parts keeps you from having to pay for much more expensive problems like system downtime, fixing random failures, and replacing parts too soon.

Our team at Chuangyu has been working with RF components for almost twenty years and brings that experience to every relationship with a customer. We can help your projects succeed by providing you with the right products and information. We provide the precise interconnect solutions your applications need, whether we're setting up new systems or improving existing ones.

FAQ

1. What frequency ranges do these extension cables support effectively?

LMR195-built extension cords work solidly from DC to 8 GHz, which covers most commercial wireless bands, such as GPS, Wi-Fi, Bluetooth, and cellular frequencies. Performance stays great up to 6 GHz, with manageable insertion loss. As the operation gets closer to 8 GHz, attenuation increases. Applications that need performance above 8 GHz should ask for lower-loss wire types like LMR400 or semi-rigid designs made for millimeter-wave bands.

2. How can I verify compatibility with my existing equipment?

Checking for compatibility starts with making sure the connector's gender and type are correct. Standard SMA connectors can connect to other standard SMA ports, but they can't connect to RP-SMA without adapters. Making sure the right cables are ordered is done by looking at the equipment's documentation or existing cables. For impedance matching to work, the signal line must always have 50-ohm traits. Mixing 50-ohm and 75-ohm components leads to reflections and worse performance. The threaded coupling mechanism makes sure that all manufacturers who follow SMA interface standards can use the same mechanical parts.

3. Are these cables suitable for outdoor or harsh environment deployment?

When installed correctly, the polyethylene outer jacket can withstand UV light and rain, making it ideal for outdoor use. Adding moisture seals at the points where connectors meet protects against water getting in, and routing cables so that they don't sit in water and allow drainage increases their service life. Extreme temperatures that are within the cable's rated range don't cause too many problems, but placements in very cold places may need extra care when handling. In industrial settings where chemicals are present, there is a chance of abrasion, or there is a lot of shaking, extra protection conduit or special jacketing materials may be needed.
