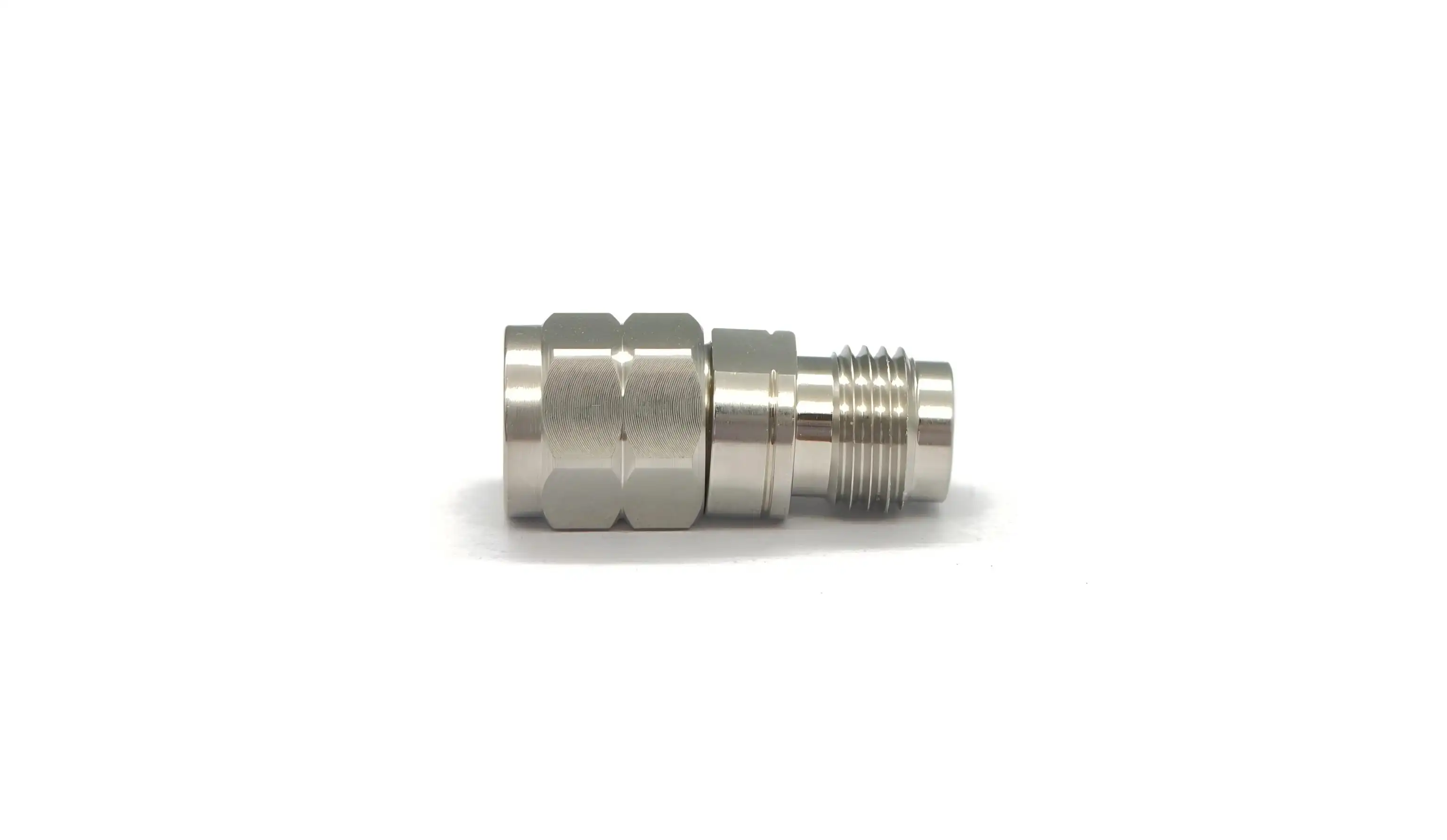

Best 2.4mm Coaxial Adapter for OEM RF Applications

If an engineer comes to me asking what the best Coaxial adapter 2.4mm plug to 2.4mm jack for OEM RF applications is, my response always begins from the same foundation: precision-engineered 50Ω impedance, confirmed VSWR performance, and a mechanical design that stands up under actual testing circumstances. 2.4mm Coaxial Adapters are the heart of millimeter-wave signal chains from DC to 50 GHz. Selecting the incorrect adapter results in a measurement mistake that propagates across your system. This manual will assist you in cutting through the noise and provide a clear, practical framework for procurement managers, R&D engineers, and test engineers to choose the proper component.

Understanding 2.4mm Coaxial Adapters for RF Applications

What Sets the 2.4mm Interface Apart

The 2.4 mm coaxial connection standard was intended to overcome the constraints of SMA and 3.5 mm connectors at millimeter-wave frequencies. SMA connections are good to around 18 GHz, and 3.5mm connectors to about 34 GHz. The 2.4mm interface has constant impedance and negligible insertion loss all the way to 50 GHz. This makes the 2.4mm plug-to-2.4 mm jack coaxial adapter an essential interface conversion tool in 5G base station testing, satellite communication validation and millimetre-wave radar characterisation.

Core Construction and Material Specifications

A good 2.4mm RF adaptor has three levels of its structure functioning together. The center conductor is gold-plated beryllium copper for good electrical conductivity and for resistance to contact oxidation for hundreds of mating cycles. The insulating dielectric is usually PTFE, selected for its low dielectric loss at high frequencies. The exterior conductor is made of precision-machined stainless steel, ensuring electromagnetic shielding integrity and strong mechanical resistance to deformation. Together, these materials provide the 50Ω characteristic impedance required for high frequency RF systems.

How to Choose the Best 2.4mm Coaxial Adapter for Your OEM RF Needs

There are a number of interdependent performance characteristics to consider when choosing the proper 2.4 mm RF adapter for an OEM application. A purchase choice based on price alone often ends in signal integrity issues that cost far more in downtime and recalibration than the initial savings would indicate. For example, selecting a reliable Coaxial adapter 2.4mm plug to 2.4mm jack can help ensure proper connection performance and maintain signal stability in high-frequency applications. Here are the main specifications to consider when selecting a supplier:

• VSWR < 1.35 DC – 50 GHz: Reflections over this level cause reflection losses that affect the accuracy of vector network analyzers and spectrum analyzers. Always ask the manufacturer for a calibrated test report.
• Insertion loss standard: Low insertion loss is a must-have for millimeter-wave test applications. A difference of as little as 0.1 dB in the multi-adapter signal chain might cause a quantifiable system fault.
• Mating cycle durability >= 500 cycles. OEM test conditions are characterized by repeated connections. Adapters that have a rated plug-unplug life of less than 500 cycles become a regular maintenance liability on production test floors.
• Material traceability and plating verification: Gold-plated beryllium copper center pins should be accompanied by documented material certification. Unverified replacements significantly deteriorate performance during heat cycling.

Together, these parameters determine whether a 2.4mm coaxial connection adapter will work for rugged OEM applications. Offering almost three times the useful frequency range of SMA adapters, the 2.4mm format is the ideal option for any application using millimeter-wave communication channels.

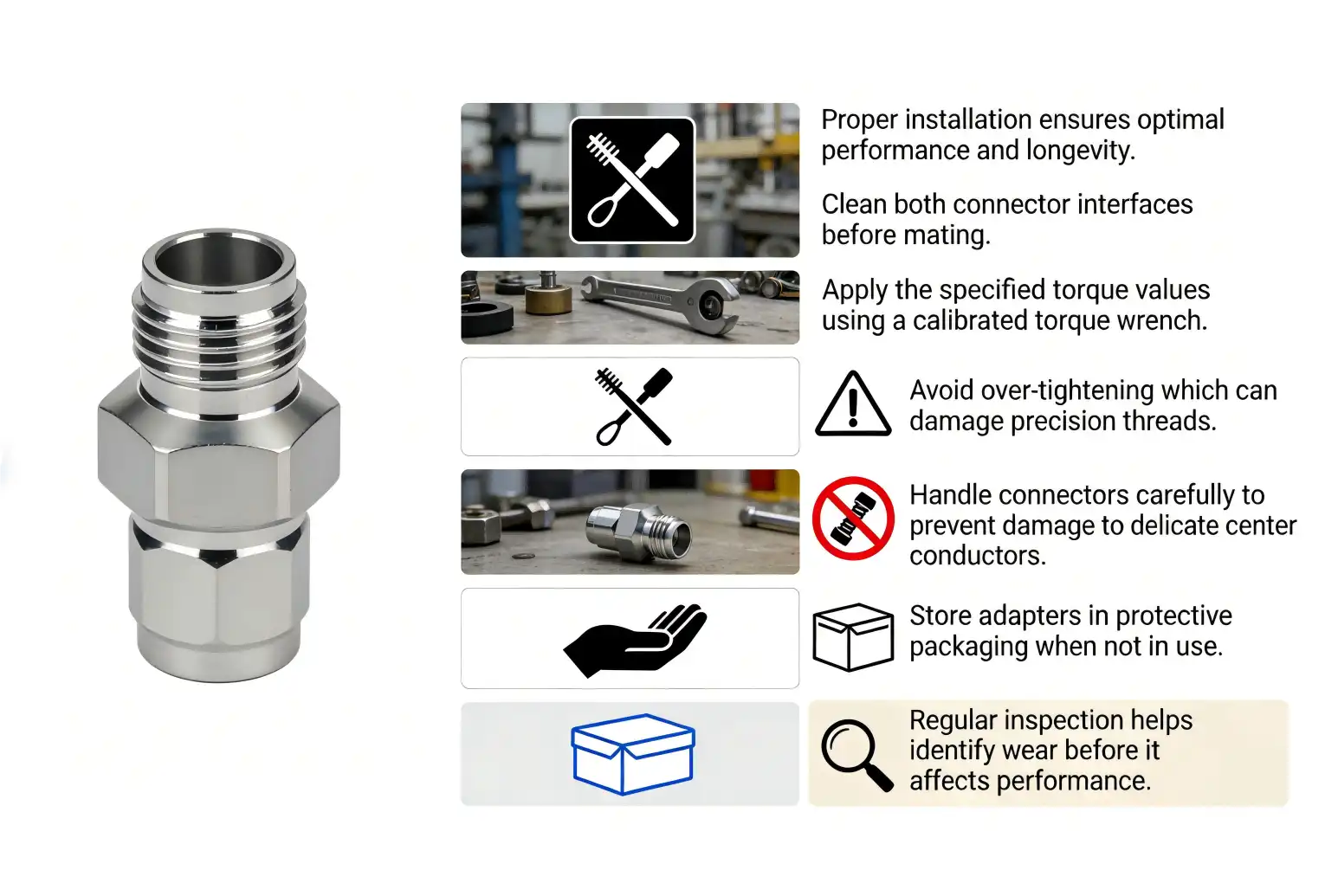

Installation and Troubleshooting of 2.4mm Plug to 2.4mm Jack Coaxial Adapters

Pre-Use Inspection Protocol

Before installing any 2.4mm male-to-female coaxial adapter, check the outside conductor for deformation, check the gold plating for no peeling or discolouration, and check the center pin for no oxidation or physical damage. Any structural defect should be replaced immediately. Damaged adapters not only function badly but also actively add impedance discontinuities that contaminate test results.

Installation and Signal Control Guidelines

Proper torque discipline is a must. Align the Coaxial adapter 2.4mm plug to 2.4mm jack carefully and attach. Tighten the adapter up to 0.5 N · m using a calibrated torque wrench as described in the product description. Oblique insertion or over-torquing fractures the interface geometry, irreversibly changing impedance characteristics. In addition, the test signal frequency must be within the DC–50 GHz working window, and all high-frequency testing should be performed within a shielded container to prevent external electromagnetic interference.

Maintenance and Fault Diagnosis

Clean the interface using special RF cleaning swabs soaked in anhydrous alcohol. Keep the adapters in a closed container, free from corrosion, at temperatures of -10 °C to 40 °C and humidity less than 60% RH. A rapid rise in standing wave ratio or unexpected signal loss during testing indicates a loose connection or worn mating surfaces. Cease testing immediately, quarantine the adaptor, and diagnosis before further. If the 2.4mm RF connection adaptor is compromised, the device will be used, perhaps spoiling a whole measurement session and destroying attached equipment.

Market Options and Procurement Tips for OEM Buyers

Evaluating Manufacturers and Customization Capability

The worldwide market for 2.4mm coaxial adapters has familiar companies such as Pasternack, Amphenol, and Rosenberger, all of which provide dependable off-the-shelf goods. For OEM purchasers with volume needs or non-standard interface configurations, a manufacturer with in-house precision machining and RF testing competence is a more strategic partner. Chuangyu makes 2.4mm coaxial connector adapters at a dedicated manufacturing facility in Xi’an, China. The 1,000-square-meter facility has an annual production capacity of 500,000 RF components. With over 20 years of process know-how in RF connection manufacture, the business guarantees constant dimensional tolerances and proven electrical performance batch to batch.

Bulk Procurement and Supply Chain Stability

Consolidated sourcing benefits OEM procurement teams running high-volume test operations. Bulk orders lower the cost per unit, streamline the incoming inspection processes, and provide a reliable supply pattern that helps to avoid line stoppages. When looking for a Coaxial adapter 2.4mm plug to 2.4mm jack source, ask for sample units to test the VSWR on your own before ordering in bulk. Supplier must have established quality control procedures and be able to provide batch-level test reports. These verification techniques help identify trustworthy supply chain partners from wholesalers who just repackage unverified material.

Future Trends and Innovations in 2.4mm Coaxial Adapter Technology

The RF connection sector is rising to meet the challenge of greater deployment of millimeter waves by implementing stricter mechanical tolerances, enhanced plating techniques, and adapters qualified for use beyond 50 GHz to facilitate upcoming 6G research applications.

Miniaturization trends are driving connection form factors to ever-lower sizes without losing impedance stability. Smart diagnostic integration is increasing in automated test settings, with RFID tags or wear indications embedded into connection housings to provide adapter lifespan monitoring and minimize unnecessary downtime. OEM purchasers that match their procurement strategy with these technological developments will ensure compatibility of their test systems as frequency needs continue to rise.

Conclusion

The Coaxial adapter 2.4mm plug to 2.4mm jack is a precise instrument, not a commodity. Every material choice, dimensional tolerance, and mated cycle rating directly influences the quality of the data that your RF system generates. The minimum responsible standard for OEM applications in 5G testing, semiconductor RF development, aerospace characterization and automated test integration is an adapter with verified VSWR ≤ 1.35, gold-plated beryllium copper center conductors, stainless steel outer construction and a rated mating life of 500 or more cycles. Add that specification discipline to a supplier that can consistently produce at scale, and your RF connection infrastructure becomes a dependable asset rather than a recurrent burden.

FAQ

What frequency range does a 2.4mm coaxial adapter support?

The 2.4mm coaxial adapter operates from DC to 50 GHz, making it suitable for millimeter-wave applications including 5G base station testing, satellite communications, and millimeter-wave radar characterization. This frequency range significantly exceeds what SMA and 3.5mm connectors reliably deliver.

How does a 2.4mm adapter differ from an SMA adapter?

SMA connectors are reliable to approximately 18 GHz and suit lower-frequency applications well. The 2.4mm male to female RF adapter extends usable performance to 50 GHz with tighter impedance control and lower insertion loss at millimeter-wave frequencies, making it the preferred choice for precision test environments.

Is the 2.4mm RF adapter suitable for high-frequency semiconductor testing?

Yes. The 2.4mm coaxial connector adapter achieves interface compatibility between test equipment and 5G chip characterization fixtures, enabling accurate RF front-end module testing where impedance matching and signal integrity are critical.

What torque should I apply when connecting a 2.4mm adapter?

Apply torque no greater than 0.5 N·m using a calibrated torque wrench. Exceeding this value risks deforming the interface geometry and permanently degrading impedance performance.

How long does a quality 2.4mm adapter last under repeated use?

A properly manufactured 2.4mm RF coaxial adapter carries a rated mating life of 500 or more plug-and-unplug cycles. With correct handling, cleaning, and storage practices, the operational lifespan meets the demands of continuous production test environments.
