2.92 RF Attenuator Procurement Guide for 5G Test Labs

The 2.92 RF attenuator is a key component when looking for precise parts for sophisticated wireless testing. This coaxial attenuator is crucial for 5G mmWave test conditions because it provides regulated signal reduction with no distortion while operating from DC to 40 GHz. Choosing the appropriate 2.92 RF attenuator has a direct influence on measurement reproducibility, system protection, and lab throughput, whether you are conditioning signals for a millimeter-wave base station test bench or calibrating a vector network analyser. This manual guides technical directors and procurement engineers through each crucial choice.

Understanding 2.92 RF Attenuators: Key Concepts and Technical Specifications

The 2.92 RF attenuator dominates sub-40 GHz test benches because the 2.92 mm coaxial connection standard allows single-mode propagation up to 40 GHz. The 2.92 mm interface, in contrast to larger connector types, preserves phase-stable, low-reflection signal transmission even at Ka-band frequencies—a feature that is essential for 5G NR FR2 testing.

Construction and Material Quality

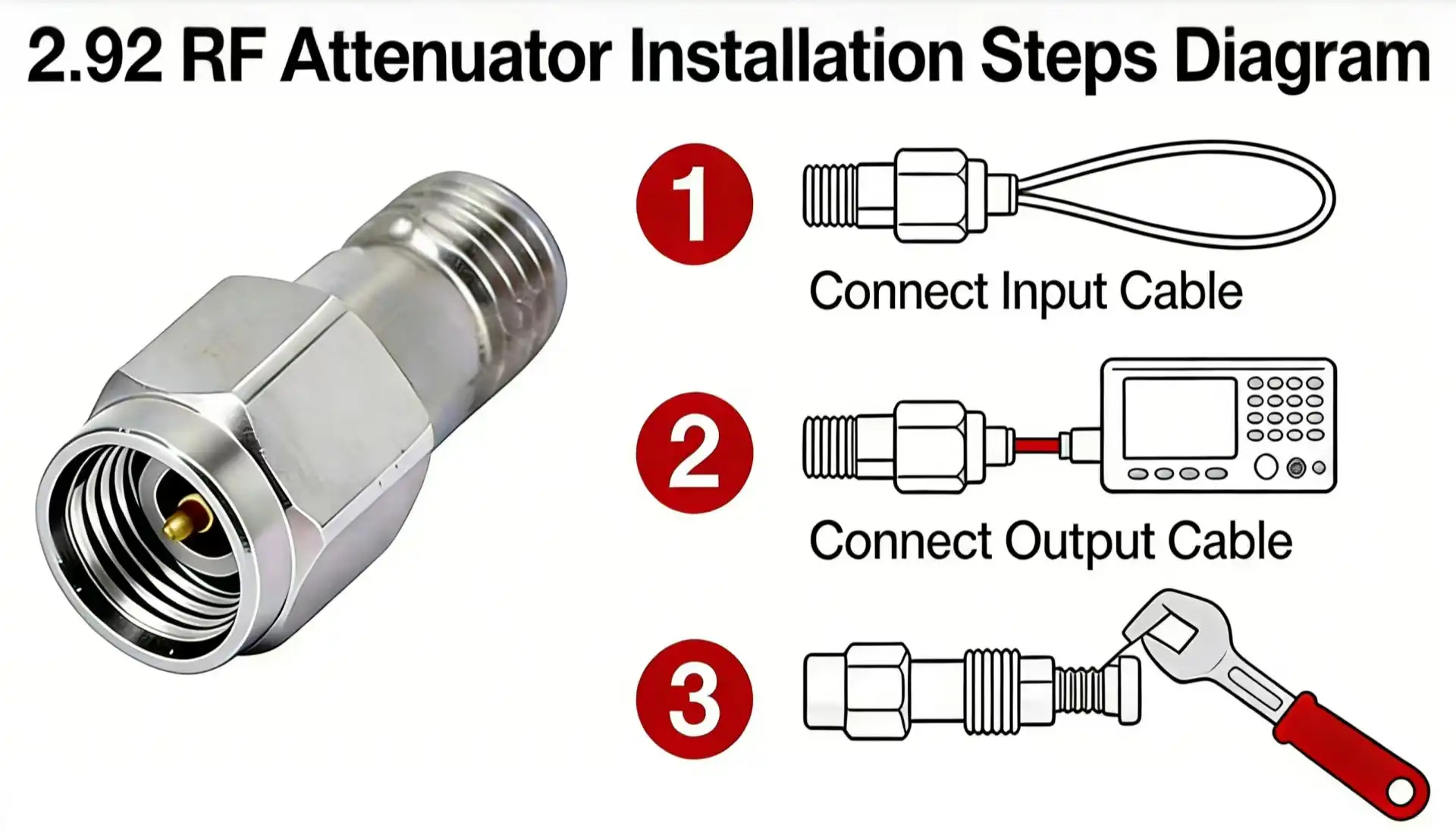

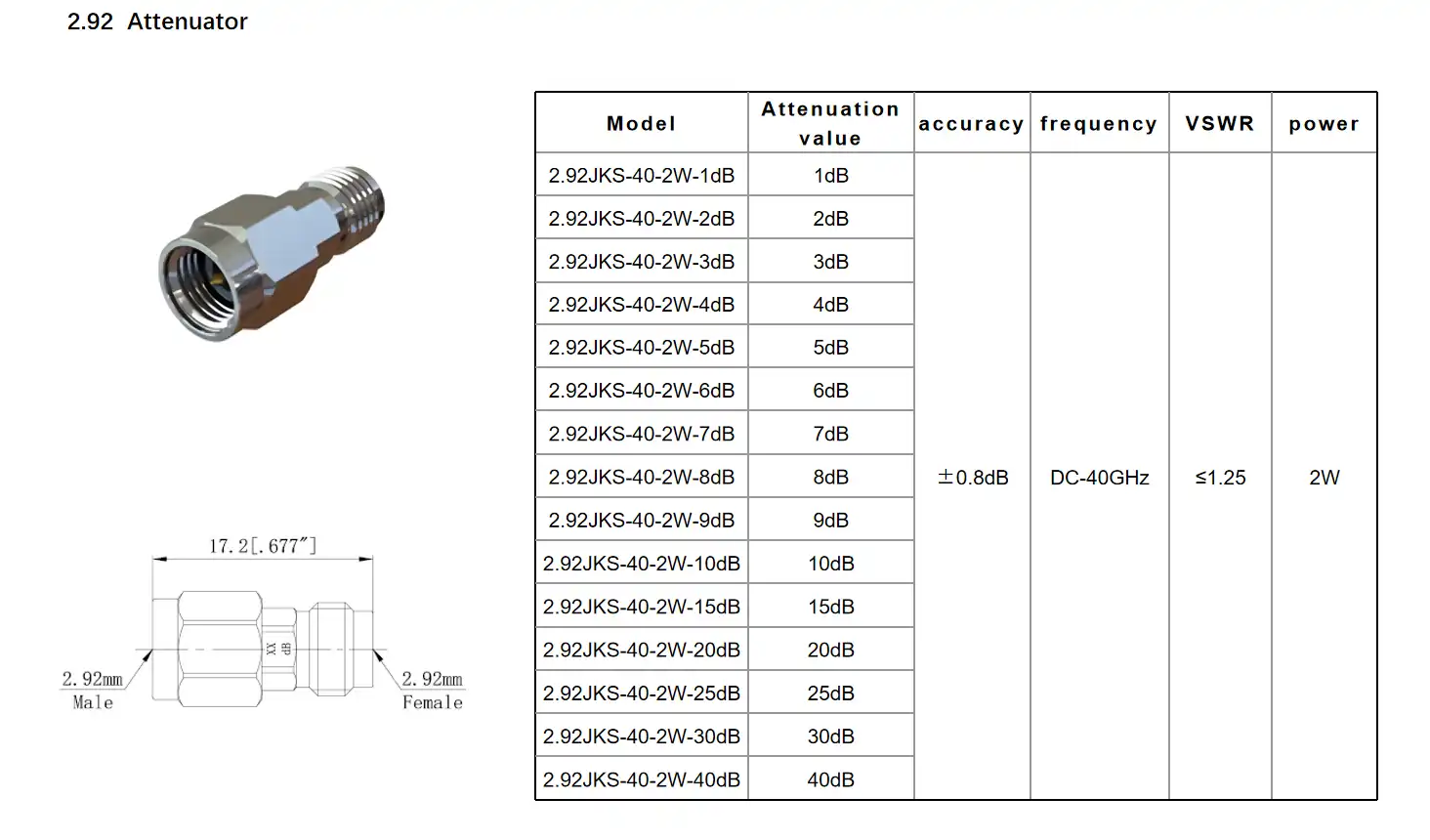

Chuangyu's 2.92 RF attenuator combines strong mechanical strength and corrosion resistance with a passivated stainless steel body (303/316 grades available). The exterior conductor is made of an elastic contact structure, while the inner conductor is made of gold-plated beryllium copper with a gold layer thickness of at least 1.27 μm. Throughout the entire working range, these design decisions maintain low insertion loss and lower contact resistance. High integration in packed test rack setups is made possible by the attenuation chip's use of thin-film technology inside a small φ8×31.4 mm footprint (≤20 dB models).

Core Electrical Performance

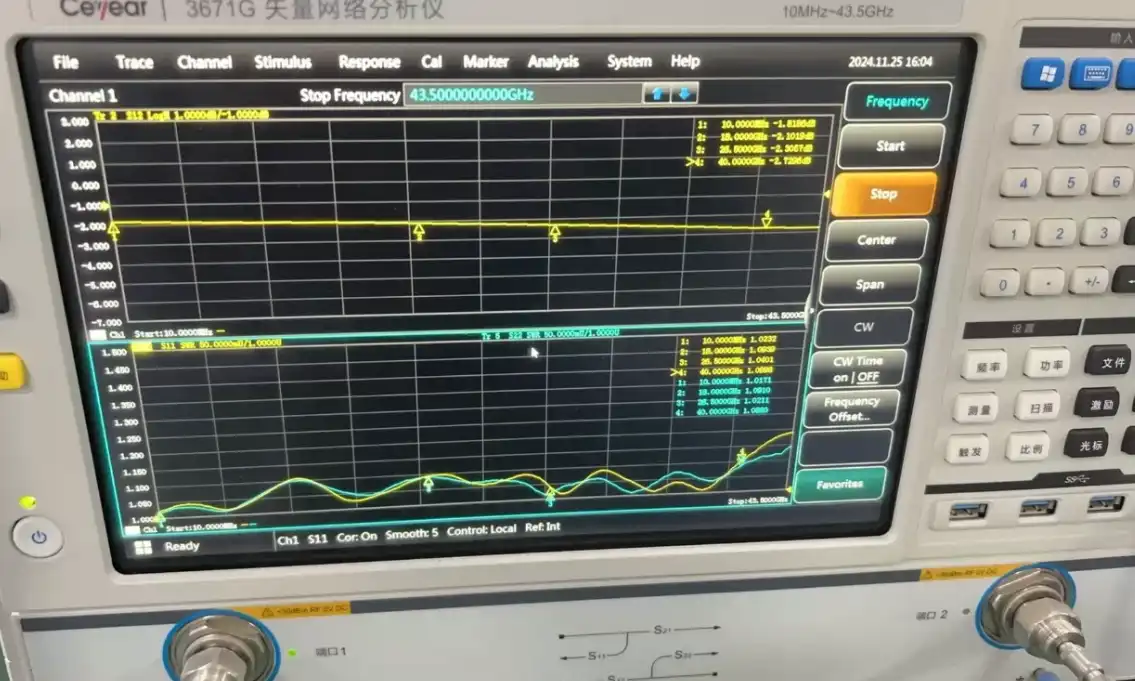

The device has a nominal impedance of 50 Ω and operates from DC to 40 GHz (some variants up to 32 GHz). Signal reflection errors during calibration are directly limited by VSWR, which measures ≤1.35 with a normal value of 1.15. The precision of attenuation is ±0.7 dB for values between 1 and 9 dB, ±0.6 dB for values between 10 and 20 dB, and ±1 dB for values between 20 and 40 dB. With a 5 μs pulse width and 1% duty cycle, the peak output may reach 0.2 kW, while the average input power is 2 W continuous. The temperature range for thermal stability is −55 °C to +125 °C; above 85 °C, linear power derating is necessary.

Comparing 2.92 RF Attenuators with Similar Solutions: Making the Right Choice

One of the first choices a hardware developer must make is between connection families. This is a comparison between the 2.92 mm solution and nearby standards.

When testing 5G NR FR2 bands that are getting close to the top mmWave edge, the 2.4 mm connection is the preferred option since it extends single-mode operation to 50 GHz. Nevertheless, 2.4 mm parts are much more expensive. For sub-30 GHz applications, the 3.5 mm connection, which has a 34 GHz cap, is still affordable; nevertheless, as the frequency approaches its limit, it starts to introduce increasing VSWR. N-Type connections are suitable for legacy or lower-frequency configurations and have a maximum frequency of around 18 GHz. The practical center is occupied by the 2.92 RF attenuator, which is more cost-effective than 2.4 mm, wider than 3.5 mm, and completely 5G-ready for most current mmWave test situations.

Compact, phase-stable, and physically dependable are fixed-value coaxial attenuators, such as the 2.92 RF attenuator in Pi-pad design. They work well in test configurations that are reproducible and have a fixed attenuation level. For automated test equipment (ATE), programmable step attenuators provide switching flexibility, but they also increase size and expense and add insertion loss at each switching stage. A choice of fixed 2.92 mm attenuators spanning many attenuation levels (3 dB, 6 dB, 10 dB, 20 dB, and 30 dB) offers wider coverage without the complexity overhead for the majority of 5G conformance and calibration laboratories.

Procurement Criteria and Decision-Making for 2.92 RF Attenuators

Before placing an order, procurement managers and test engineers must make sure that component specs match real lab operations. One of the most frequent and expensive errors in the sourcing of RF components is to rush this stage.

Before choosing a 2.92 RF attenuator provider, each buyer should verify the following essential assessment metrics:

• Coverage of frequencies: Make sure your highest test frequency is equal to or higher than the attenuator's rated upper frequency. The DC–40 GHz range of Chuangyu's standard versions allows for 5G NR FR2 bands up to 39 GHz without sacrificing performance.
• Range of attenuation values: Map necessary attenuation levels (usually between 1 dB and 40 dB) to SKUs that are available. Verify accuracy tolerances not just at a single spot frequency but over the whole frequency range.
• Power handling: Align peak and continuous-wave power ratings with the output of the signal source. Degradation of the connection and irreversible chip damage are problems associated with operating over 2 W CW.
• Gender and compatibility of the connector: To prevent adapter stacking, which lowers VSWR, make sure the male/female orientation matches the current port configurations on your VNA, spectrum analyser, or power sensor.
• Environmental rating: Chuangyu's attenuator's operating range of −55 °C to +125 °C guarantees performance stability under fluctuating heat conditions for ATE racks or field-deployed test equipment.

Before placing a purchase order, a comprehensive specification analysis is a worthy time investment since these parameters immediately translate into measurement integrity and equipment lifetime.

How to Buy 2.92 RF Attenuators: Best Practices for B2B Procurement

It takes more than a catalogue search to find high-frequency passive components. Complete electrical characterisation data, including as S-parameter files, power derating curves, and VSWR vs. frequency charts across the whole working range, should be supplied by reliable 2.92 RF attenuator vendors. Precision-grade producers are distinguished from generic distributors by requesting these data sets prior to completing a supplier shortlist.

Evaluating Supplier Capabilities

Examine a possible 2.92 RF attenuator manufacturer's manufacturing infrastructure, quality control system, and level of customisation. Chuangyu has a dedicated 1,000 m² manufacturing facility in Xi'an that can produce 500,000 RF components annually. Their manufacturing lines include waveguide coaxial converters, coaxial connectors, load attenuators, and RF cable assemblies. This integrated supply chain lowers the risk of single-source reliance and shortens lead times.

Customization and OEM Options

Extended connection arrangements, changed flange interfaces, and non-standard attenuation levels are all necessary in many 5G test facilities. With R&D laboratory resources devoted to specification compliance, Chuangyu provides OEM and ODM customisation for its 2.92 RF attenuator product range. To prevent revision cycles that prolong delivery timelines, buyers should convey all system requirements at the quote stage, including operational frequency band, attenuation step, power budget, mechanical envelope, and connection gender.

Future Trends and Innovations in 2.92 RF Attenuator Technology for 5G Labs

The 5G mmWave rollout across the United States is accelerating demand for sub-40 GHz precision passive components. As 6G research moves toward 100 GHz and beyond, labs are building test infrastructure that must remain adaptable. While the 2.92 mm coaxial standard approaches its physical limit near 40 GHz, the engineering value of this platform in current 5G FR2 testing will persist throughout this decade.

Automated test systems increasingly demand attenuators with low passive intermodulation (PIM), tighter VSWR envelopes, and mechanical durability rated beyond 1,000 mating cycles. Thin-film resistive chip technology—the same core used in Chuangyu's product—is evolving toward even tighter attenuation tolerance windows and improved thermal management for higher-density ATE configurations. Sustainability awareness is also shifting procurement toward components with longer service lifetimes and recyclable packaging, both considerations Chuangyu addresses through robust stainless-steel housing and anti-static transport packaging.

Conclusion

The 2.92 RF attenuator remains one of the most versatile and indispensable passive components in any 5G test lab operating below 40 GHz. Selecting the right variant requires matching electrical specifications, mechanical constraints, and supplier reliability—not just price. Chuangyu's precision-manufactured 2.92 mm attenuator line meets these demands with thin-film chip technology, gold-plated beryllium copper contacts, and validated performance from DC to 40 GHz. Whether your lab handles 5G conformance testing, satellite communication validation, or mmWave R&D, the right attenuator sourcing decision starts with verified specifications and a transparent, capable supplier.

FAQ

What frequency range does a 2.92 mm attenuator support?

The 2.92 RF attenuator operates from DC to 40 GHz, covering the full 5G NR FR2 mmWave band. Select models are rated to 32 GHz. This range makes the 2.92 mm platform appropriate for most current 5G test applications without requiring a more expensive 2.4 mm solution.

Should I choose a fixed or programmable attenuator for a 5G test bench?

Fixed coaxial attenuators in Pi-pad configuration deliver better phase stability and lower insertion loss than programmable step types. For repeatable calibration tasks and signal conditioning at defined power levels, fixed 2.92 RF attenuator values are the more reliable and cost-effective choice.

Can 2.92 RF attenuators be customized for OEM applications?

Yes. Suppliers such as Chuangyu offer OEM customization covering attenuation value, connector gender configuration, body material grade, and special mechanical dimensions. Communicating full system requirements at the inquiry stage accelerates lead time and reduces specification errors during production.

How many mating cycles does a precision 2.92 mm attenuator support?

It is recommended not to exceed 1,000 insertion-removal cycles. Beyond this threshold, connector wear can shift VSWR and attenuation accuracy outside the rated tolerance. Periodic inspection with a network analyzer every 6–12 months is advised.

Partner with Chuangyu for Your 2.92 RF Attenuator Needs

Chuangyu delivers precision-engineered RF passive components backed by nearly two decades of manufacturing expertise. As a trusted 2.92 RF attenuator supplier, Chuangyu combines thin-film chip technology, stainless steel construction, and rigorous quality control to support 5G test labs across the United States. Contact our technical team for custom configurations, bulk pricing, and fast lead times. Visit cymicrowave.com or reach out directly at chuangyuwz01@cymicrowave.com to start your inquiry today.

References

1. Pozar, D. M. Microwave Engineering, 4th ed. Wiley, 2011.

2. Keysight Technologies. Fundamentals of RF and Microwave Noise Figure Measurements. Application Note 57-1, Keysight Technologies, 2019.

3. IEEE Standard 287-2007. IEEE Standard for Precision Coaxial Connectors (DC to 110 GHz). IEEE, 2007.

4. Mini-Circuits. RF Attenuators: Design and Application Guide. Mini-Circuits Technical Publication, 2020.

5. Agilent Technologies. Vector Network Analyzer Calibration and Measurement Best Practices. Application Note 1287-3, Agilent Technologies, 2012.

6. 3GPP Technical Specification TS 38.101-2. NR; User Equipment (UE) Radio Transmission and Reception; Part 2: Range 2 Standalone. 3GPP Release 17, 2022.
