Where Is a MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector Used?

The MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector is a key interface option for aerospace, defence and industrial sectors where simultaneous optical and electrical data transmission is required in severe conditions. The military-grade connection houses fibre-optic termini compliant with MIL-PRF-29504 and numerous electrical contacts in a single compact package. It offers high-density data transfer on 2 to 37 optical channels and diverse electrical configurations. It is ruggedly designed to operate in temperature ranges from -65℃ to +200℃, is IP67-rated, and provides dependable operation in fighter avionics, satellite communication systems, ground radar installations, and rugged industrial automation equipment where conventional connections fail.

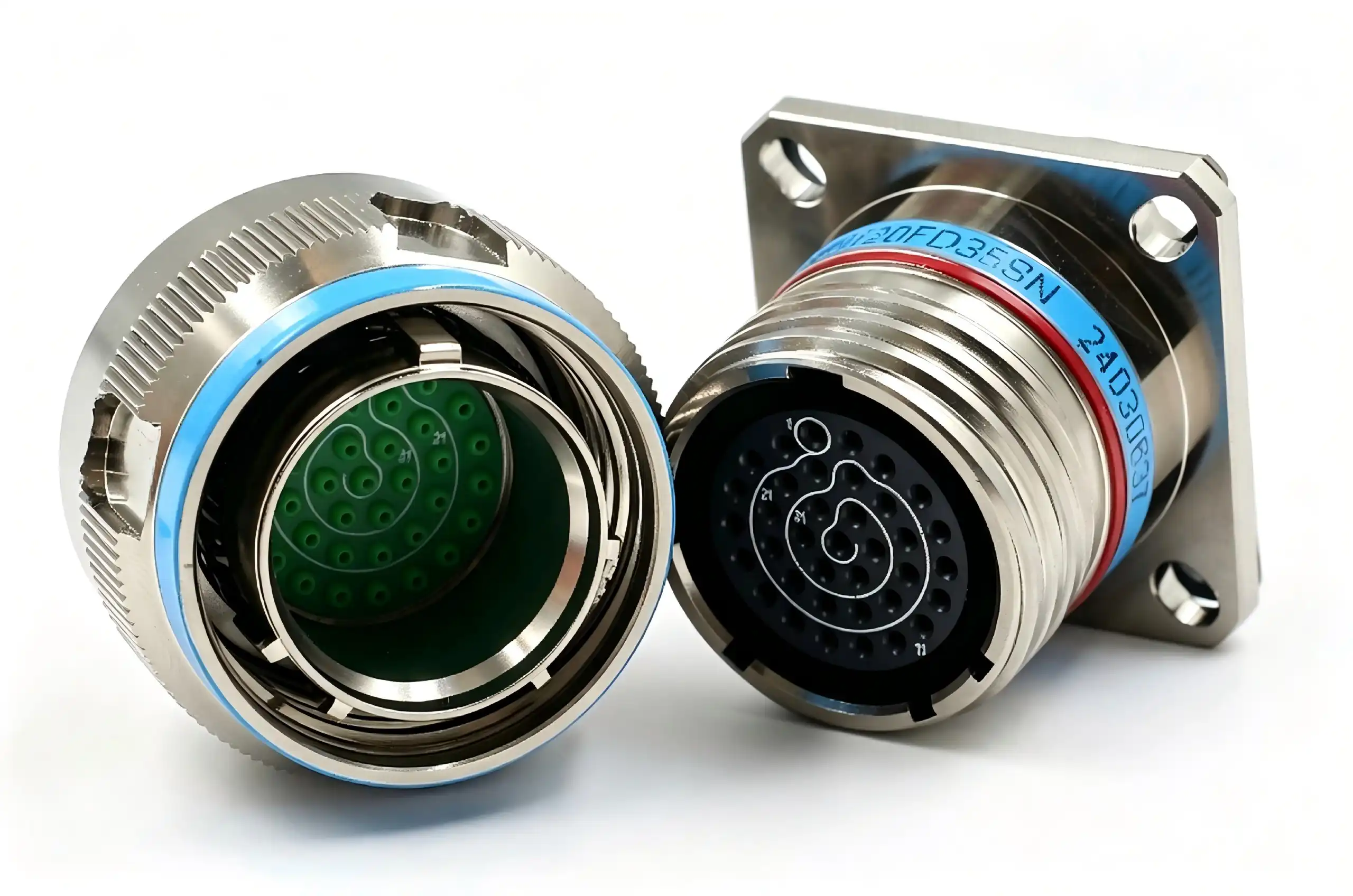

Overview of MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connectors

With an understanding of the architecture of these hybrid connections, procurement teams and design engineers will be better able to identify acceptable interconnect solutions for mission-critical applications. The Series 3 design marks a major development in military communication technology, providing more environmental resistance and adaptability than previous generations.

Optoelectronic Integration Architecture

These connectors merge fibre optic termini with MIL-PRF-29504 standard ceramic ferrules and a selection of electrical contacts such as signal, power, coaxial, and Twinax, all inside one housing. Such integration allows for simultaneous optical and electrical signal transmission in high-density combinations supporting 2 to 37 optical channels coupled with diverse electrical contact layouts. This common interface method offers the engineer the advantages of reduced system complexity and signal integrity across diverse transmission media.

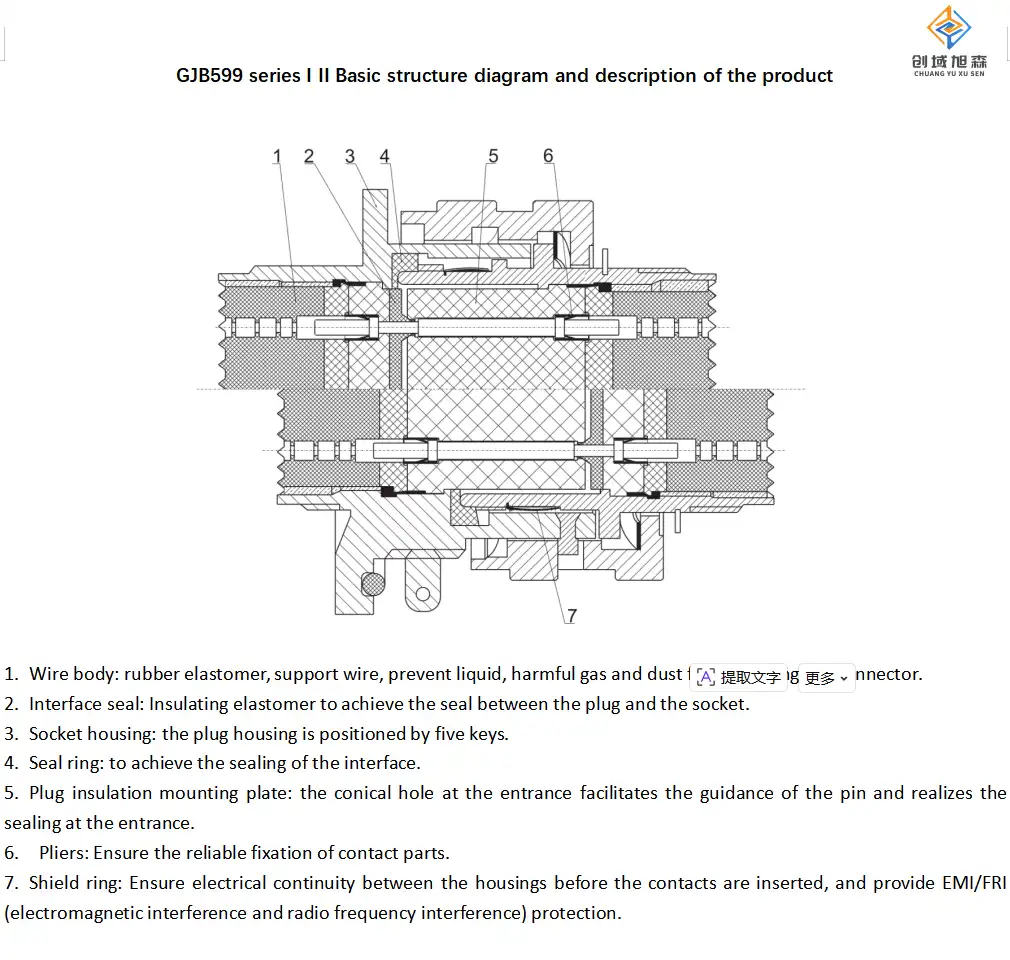

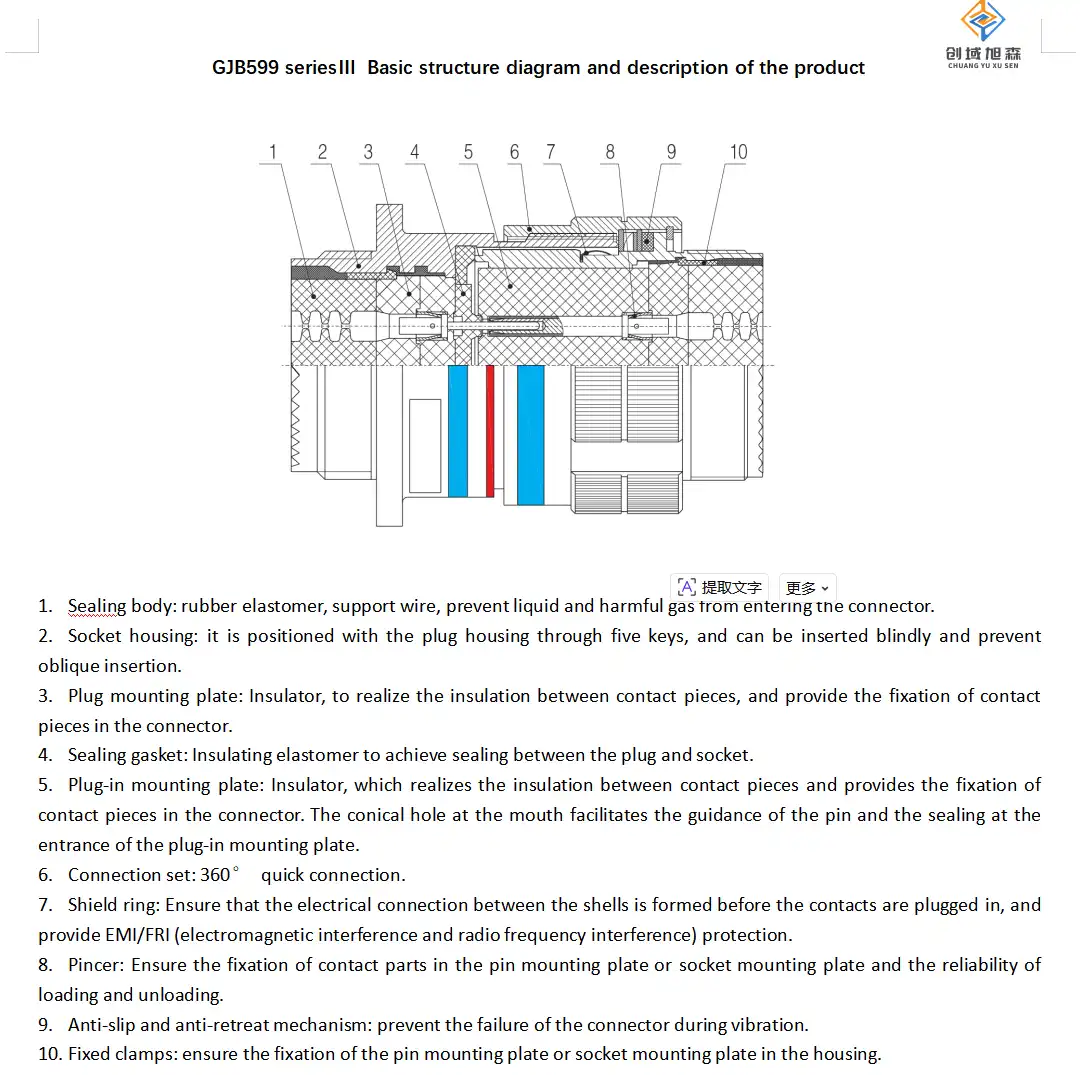

Mechanical Design and Quick-Connect Features

The three-tooth thread rapid self-locking mechanism securely docks in a single 360° revolution, saving connection time significantly for setup and maintenance. Anti-misalignment keys with 100% anti-misinsertion (scoop-proof) constructions safeguard sensitive optical and electrical connections during blind insertion procedures, an important feature for field installations in tight places. Housing materials include aluminium alloy for weight-sensitive applications, stainless steel for optimal durability, and composite materials for corrosion resistance. Airtight sealing with helium leak rates < 1 x 10-7 cm3/s is available and fulfils demanding standards for pressurised aircraft settings.

Environmental Protection Capabilities

Hybrid optoelectronic connections provide IP67 protection levels to resist intrusion of dust and transient immersion, but still retain signal integrity. The temperature range of -65℃ to +200℃ covers harsh operating environments from Arctic deployments to engine compartment installations. Stainless steel and cadmium-plated variants pass 500-hour salt spray testing for excellent corrosion resistance in marine and coastal environments. Resistance to aviation fuel, hydraulic oil, and cleaning solvents guarantees long-term durability in maintenance-intensive situations where connection exposure to harsh chemicals is a given.

Primary Industry Applications of MIL-DTL-38999 Series 3 Hybrid Connectors

The adaptability and dependability of hybrid connections for military-grade applications make them an essential element in many industries where traditional connecting solutions fall short of operating requirements. Major application fields where the use of these components results in real performance gains are:

Aerospace and Avionics Systems

Optical sensors, data buses, and mission computers in fighter aircraft avionics systems such as the F-35 aircraft combine integrated optical and electrical signal chains. The hybrid connections allow for the transfer of high-bandwidth optical data streams in parallel with electrical power and control signals via a single interface point, saving weight and complexity in space-restricted airframes. The vibration resistance and vacuum compatibility are crucial to maintaining the signal quality throughout the launch and the orbital operation for satellite communication equipment. Lightweight composite housing alternatives may be beneficial to unmanned aerial vehicles (UAVs) while maintaining payload capacity and providing a strong connection for optical data links that are relaying reconnaissance images in real-time.

Defense and Military Ground Systems

Hybrid connections are used in ground radar installations to combine optical and electrical signals, high-speed digital data from signal processing units, power distribution, and control circuits. Shipboard electronic warfare systems need high-density optical and electrical connections that are immune to salt spray, vibration, and electromagnetic interference; exactly the criteria delivered by the Series 3 design specifications.” These connections bring several cameras, LIDAR units, and communications arrays to tactical vehicle sensor networks and can be quickly deployed and serviced in the field under combat settings. The quick-connect system cuts down the time to dock when reconfiguring equipment—a big plus in mission-critical situations.

Industrial Automation and Harsh Environments

Hybrid optoelectronic connections are used in deep-sea exploration equipment to guarantee signal integrity for robotic manipulators and imaging systems under harsh pressure and corrosive saltwater environments. In high-vibration production lines for automotive and heavy industrial facilities, intelligent sensor networking has to survive constant mechanical stress. The rugged mechanical design and tight locking mechanism avoid inadvertent disconnection during operation of the equipment. These connections are used in offshore oil and gas platforms for process control systems, which are subjected to hydrocarbon vapours, temperature extremes, and corrosive atmospheres. Its chemical-resistant qualities guarantee constant functioning over long maintenance intervals.

These application examples show why hybrid optoelectronic MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connectors are specified by procurement managers in a variety of sectors for projects where reliability influences safety, operational efficiency, and total cost of ownership.

Comparing MIL-DTL-38999 Series 3 Hybrid Connectors with Other Solutions

Evaluating connector technologies requires understanding how different solutions balance performance, cost, and application-specific requirements. This comparative analysis helps engineering teams make informed selection decisions.

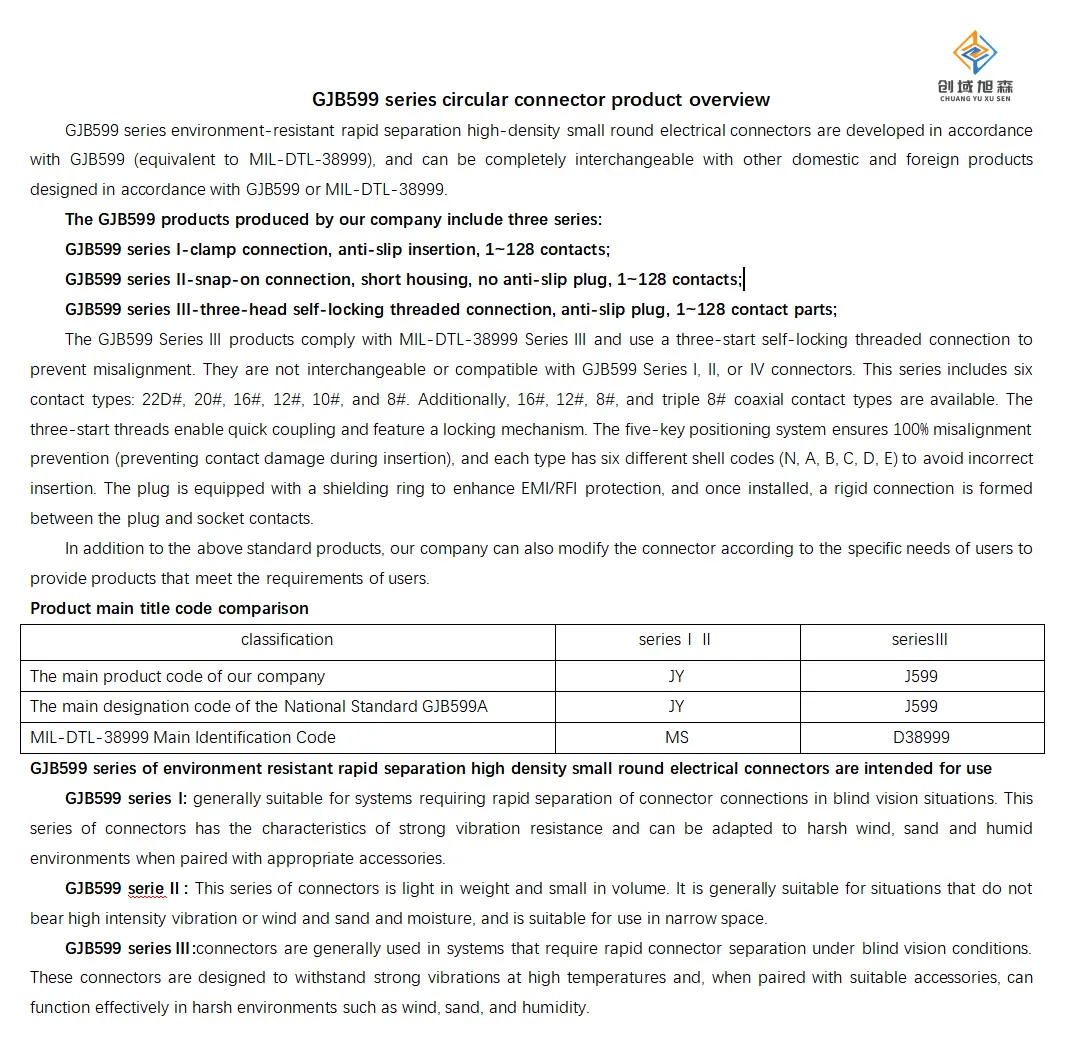

Series 2 versus Series 3 Evolution

Series 3 connectors incorporate enhanced environmental sealing, improved contact retention, and wider temperature tolerance compared to Series 2 predecessors. The updated design specifications address field failure modes identified through decades of military deployment data, resulting in measurably lower maintenance requirements. Procurement teams transitioning existing systems should note that Series 3 maintains backward compatibility with Series 2 mounting interfaces, simplifying upgrade paths without requiring extensive system redesign. The performance improvements justify the incremental cost increase for applications where extended service life and reduced downtime generate operational savings.

Hybrid versus Traditional Electrical Connectors

Conventional electrical connectors cannot accommodate optical fiber transmission, forcing system designers to implement separate optical and electrical interface points. This dual-interface approach increases weight, consumes additional panel space, and introduces potential failure modes at each connection point. Hybrid optoelectronic connectors consolidate these functions, reducing system complexity while improving signal integrity through integrated shielding that protects both optical and electrical pathways from electromagnetic interference. The unified interface simplifies cable assembly manufacturing and field installation procedures, translating to measurable labor cost reductions during production and maintenance activities.

Military-Standard versus Commercial Optical Connectors

Commercial fiber optic connectors typically lack the environmental protection, mechanical robustness, and electrical integration capabilities required for defense applications. While commercial solutions offer lower initial purchase costs, they fail to meet MIL-DTL-38999 vibration, temperature cycling, and salt fog exposure requirements. The total cost of ownership calculation must account for premature failures, unscheduled maintenance, and potential mission impacts when commercial-grade components are deployed in military-grade applications. Procurement professionals should specify military-standard hybrid connectors for projects where operational reliability justifies the premium pricing, reserving commercial alternatives for benign laboratory or office environments.

Design and Selection Considerations for Procurement and Engineering

Successful connector selection requires balancing technical specifications, supply chain factors, and long-term operational costs. These considerations guide procurement teams toward optimal solutions aligned with project requirements.

Environmental and Mechanical Requirements

Temperature extremes determine housing material selection—stainless steel shells paired with fire-resistant insulating inserts suit engine compartment installations exceeding 150℃, while composite material housings reduce weight for drone applications operating within moderate temperature ranges. Vibration profiles guide contact retention specifications, with high-vibration environments requiring enhanced spring force and locking mechanisms. Sealing requirements vary from basic IP67 protection for industrial automation to hermetic sealing for altitude-compensated aerospace systems. Procurement specifications should explicitly state operational temperature ranges, vibration frequencies, ingress protection levels, and chemical exposure conditions to ensure supplier quotations address actual deployment environments.

Electrical and Optical Interface Specifications

Contact configurations must match system power distribution requirements, signal voltage levels, and current capacities. Optical channel counts should accommodate future expansion needs—specifying additional unused fiber positions during initial procurement avoids costly connector replacements during system upgrades. Insertion loss specifications (single-mode < 0.5 dB, multimode < 1 dB) affect link budget calculations for long-distance optical transmission applications. Electrical contact resistance (< 5 mΩ) impacts power distribution efficiency and signal integrity in high-speed digital interfaces. Design engineers should provide detailed interface control documents specifying pinout assignments, optical fiber types, and performance verification test procedures to suppliers during the quotation phase.

Supply Chain and Procurement Dynamics

Lead times for military-standard hybrid MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connectors typically range from 8 to 16 weeks, depending on customization requirements and supplier production schedules. Minimum order quantities vary by manufacturer, with standard catalog items available in smaller lots while custom configurations require commitments justifying tooling investments. Supplier reliability assessments should evaluate quality management system certifications, production capacity, technical support responsiveness, and delivery performance history. Procurement strategies should incorporate buffer inventory for long-lead specialty configurations while leveraging just-in-time delivery for high-volume standard variants. Building relationships with multiple qualified suppliers mitigates supply chain risks when geopolitical factors or material shortages disrupt primary sources.

Leading Suppliers and Product Lines for MIL-DTL-38999 Series 3 Hybrid Connectors

Strategic sourcing is about knowing the skills, specialisations and support infrastructure of the main manufacturers. The overview below helps procurement teams with supplier evaluation and engagement techniques.

Key manufacturers Amphenol, TE Connectivity, ITT Cannon, Souriau, Glenair, and Molex offer large product portfolios with conventional and customised hybrid optoelectronic connection designs. Amphenol’s extensive qualification testing documentation and international distribution network support high-volume production requirements, while TE Connectivity delivers integrated cable assembly services that reduce the supply chain complexity for turnkey projects. ITT Cannon supplies hermetic sealing solutions for extreme environment applications, while Souriau offers European-sourced choices for projects needing regional content. Glenair specialises in lightweight composite solutions for aircraft weight reduction initiatives. Molex provides fast prototyping capabilities to meet aggressive development schedules.

Procurement experts should obtain from vendors mechanical dimensions, electrical ratings, optical performance characteristics and environmental certification test data. Production shipments should contain quality assurance documentation such as material certifications, dimensional inspection reports, and performance test data to fulfil traceability requirements. The framework agreements with preferred suppliers offer cost consistency for multi-year projects and priority allocation during high-demand periods. In the early phases of a new product development, access to technical assistance, such as application engineering guidance, unique design aid, and field failure analysis, gives significant value over and beyond component cost.

At Shaanxi Chuangyu Electronic Technology, we recognise the relevance of precision interconnect solutions in the growth of RF communication, semiconductor testing and solar systems. With over 20 years of manufacturing expertise, our Xi’an manufacturing facility offers innovative connection solutions for demanding military and industrial applications. We offer specialised production lines for coaxial connectors, RF cable assemblies and test probes, with tight quality control systems to guarantee constant performance. We collaborate with our clients to develop unique configurations that match the particular needs of their applications. We can do quick prototyping and provide variable minimum order quantities for development programs and volume production.

Proper Installation and Operational Best Practices

Proper installation and operating practices provide maximum connection dependability and service life. These instructions include frequent problems seen in the field and maintenance needs.

Installation Procedures and Alignment

Align photoelectric key locations concurrently before engaging connection mating threads. Do not apply side loads that may distort the ceramic ferrules or bend the electrical contact pins. Rotate the centerline axis of the coupling mechanism at a constant rate. Torque requirements are often between 10 and 15 inch-pounds, depending on the shell size. Too tight and you destroy the sealing parts; not tight enough and you let moisture in. If the connections are not mated, place dust covers on the connectors to protect the optical and electrical interfaces. Fibre optic termini are very well suited to dust caps with cleaning capabilities that remove particle contaminants when the cap is installed.

Performance Verification Testing

Test optical insertion loss using calibrated test equipment after each connection cycle. Loss on single-mode fibres should be < 0.5 dB; multimode systems < 1 dB loss. Four-wire Kelvin procedures for electrical contact resistance tests should demonstrate resistance <= 5 mΩ to ensure acceptable current-carrying capability and signal integrity. Anomalous readings indicate contamination, mechanical damage, or wear that must be corrected prior to system operation. Documenting the baseline performance measurements at the time of original installation offers reference data for trending analysis during planned maintenance inspections.

Environmental Adaptation Strategies

Applications in high-temperature environments (i.e., engine compartment locations) need stainless steel shells with fire-resistant insulating inserts rated for sustained exposure to 175°C. Lightweight applications such as UAV payloads may use shells of composite materials that provide environmental protection and decrease connection mass by 30-40% over metal housings. In corrosive chemical exposure situations, specialised coatings or noble metal contact plating resistant to oxidation and maintaining low contact resistance over service life are needed. Engineering teams should define environmental protection features appropriate to real-world deployment situations, rather than over-specifying capabilities that drive up costs without providing operational advantages.

Maintenance and Care for Extended Service Life

Preventive maintenance plans are designed to maintain connection performance and avoid premature failures. This addresses cleaning, inspection, and replacement criteria.

Cleaning Procedures

The ends of the fibre optic cable must be cleaned with special cleaning pens or lint-free cotton swabs dipped in anhydrous ethanol. This removes oils, dust, and debris that might increase the insertion loss. Use gold-plated cotton swabs on electrical contact points to clean without abrading the surface protective coating. Do not use brass or steel brushes since they harm the surface finish. Loose particles are blown from the contact cavities using compressed air at controlled pressure (≤30 PSI); however, liquid cleaning is more successful in removing greasy pollution. The frequency of cleaning varies with the operational environment, e.g., dusty industrial settings need monthly cleaning, whereas clean room installations require quarterly cleaning.

Inspection and Replacement Criteria

Check O-ring seals and gaskets at interfaces every 3 months for cracks, compression set, or surface damage that indicates reduced sealing effectiveness. Replace broken sealing elements with manufacturer-specified parts to maintain environmental protection ratings. Test after 400 mating cycles extensively for optical fibre loss and electrical contact integrity. Measurable deterioration implies that the end of life is near. Manufacturers suggest replacing the whole connection after 500 mating cycles. The actual life will depend on the severity of the application and the quality of maintenance. Predictive replacement before in-service failures is possible using mating cycle count maintenance data.

Storage Requirements

Store unused connections in a temperature-controlled environment at -20℃ to +50℃, relative humidity below 60%, and avoid corrosive gases such as hydrogen sulphide that damage metallic components. Protective caps isolate the optical and electrical connections and exclude moisture and particle build-up. Desiccants in original packaging for best protection in long-term storage, especially in humid coastal areas. Inventory rotation techniques are used to ensure that the oldest stock is utilised before the manufacturer-specified shelf life restrictions are reached, which normally range from 5 to 10 years depending on materials and storage circumstances.

Conclusion

The MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector provides unsurpassed dependability for applications requiring simultaneous optical and electrical transmission in severe environments. Its integrated design of fibre optic termini and various electrical connectors meets complicated connectivity needs across aerospace, defence, and industrial industries. Understanding the technical specifications, application concerns, and maintenance needs allows procurement teams and design engineers to select the most appropriate solutions that balance performance objectives with total cost of ownership. Proper installation processes, performance verification testing, and preventative maintenance practices are used to maximise system dependability and service life over operational deployment.

FAQ

1. What environments are best suited for hybrid optoelectronic connectors?

These connectors excel in extreme temperature ranges (-65℃ to +200℃), high-vibration installations, corrosive chemical exposure, and applications requiring both optical bandwidth and electrical power distribution through a single interface. Aerospace avionics, shipboard electronic warfare systems, and deep-sea exploration equipment represent ideal use cases where environmental protection and signal integrity prove critical.

2. Can commercial applications use military-standard connectors?

Military-standard hybrid connectors function perfectly in commercial applications requiring equivalent environmental protection and reliability. While initial costs exceed commercial alternatives, industries including offshore energy, heavy manufacturing, and transportation infrastructure benefit from extended service life and reduced maintenance requirements that justify the premium investment.

3. What are typical lead times for bulk orders?

Standard catalog configurations typically ship within 8-10 weeks, while custom designs requiring specialized tooling or non-standard optical/electrical combinations extend lead times to 12-16 weeks. Establishing framework agreements with qualified suppliers and maintaining strategic inventory buffers mitigate schedule risks for time-sensitive projects.

Partner with Chuangyu for Your Hybrid Connector Requirements

Shaanxi Chuangyu Electronic Technology specializes in precision RF connectors, cable assemblies, and custom interconnect solutions serving aerospace, defense, semiconductor testing, and photovoltaic industries. Our Xi'an production facility combines advanced manufacturing capabilities with rigorous quality control, delivering reliable MIL-DTL-38999 Series 3 Hybrid Optoelectronic Connector solutions tailored to your specific application requirements. As an experienced supplier, we offer flexible minimum order quantities, rapid prototyping services, and technical consultation supporting your design and procurement decisions. Contact our team at chuangyuwz01@cymicrowave.com to discuss your project specifications and receive detailed quotations.
