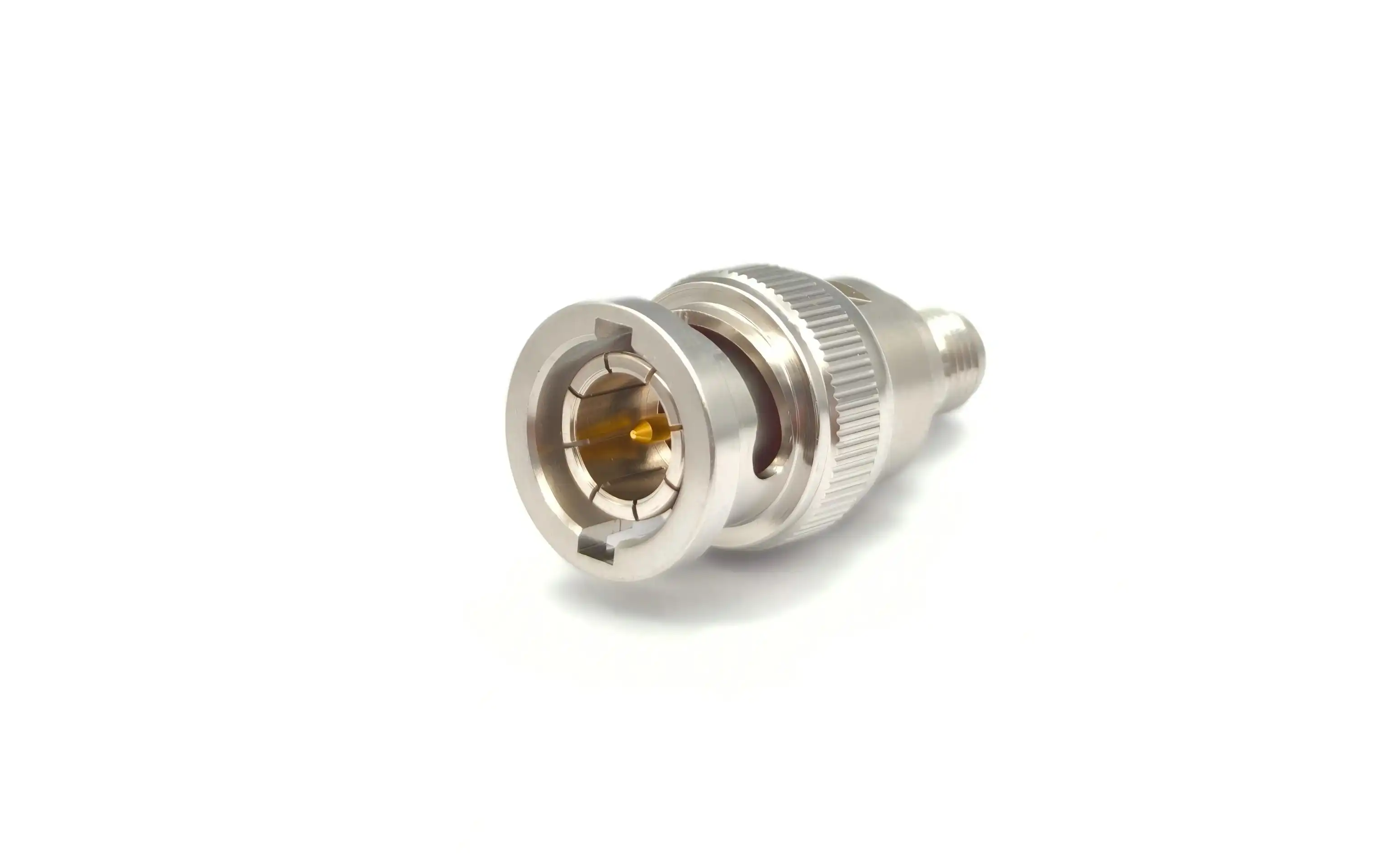

If you require a BNC male to SMA female adapter for RF systems, test benches, or wireless communication equipment, this guide offers just what you need. The SMA female to BNC male adapter is a compact straight-body component combining two kinds of coaxial connections in one: the threaded SMA interface and the bayonet-locking BNC interface. This adapter offers 50 Ohm impedance from DC to 6 GHz with VSWR of 1.15 or below for signal integrity in demanding industrial, laboratory, and military applications.

Understanding the SMA Female to BNC Male Adapter: Basics and Specifications

Interface Architecture and Material Engineering

The SMA female to BNC male adapter combines two dissimilar connection methods (in terms of physics and electricity) in one flawlessly built body. The female side of the SMA has a 1/4-36UNEF threaded outer conductor and a compliant inner jack that mates securely to an SMA male pin. The male BNC side includes a bayonet locking mechanism – two or three raised shell points rotate a quarter turn into the BNC female notch, locking with a click that may be heard. The design allows for faster mating cycles than threaded connections, which is highly significant in high-throughput test applications.

The coaxial design with straight-line construction ensures a coaxiality error of < 0.02 mm at the two ends, thereby reducing the signal reflection caused by the misalignment. The inner conductor is gold-plated beryllium copper with contact resistance < 2 m$\Omega$ and strong elastic recovery after several mating cycles. The outside conductor is a brass substrate with a nickel coating to prevent corrosion. The insulating medium is PTFE, with dielectric constant εr≈2.1, a widely known material for consistent impedance performance across vast frequency ranges.

Electrical and Environmental Performance

Standard characteristic impedance is 50 ohms. The operational frequency is DC to 6 GHz, while some precise versions may go beyond this range. The VSWR is still ≤1.15, indicating very little signal deterioration at the interface junction. The operational temperature range is -65℃ to 165℃; hence,nce these adapters may be used in cold laboratory conditions and high-temperature aerospace enclosures. Mechanical insertion and extraction life surpasses 500 cycles, which is more than enough for typical bench testing and equipment integration activities.

Comparing SMA Female to BNC Male Adapters: How to Choose the Best One

Connector gender is a very common procurement blunder. An SMA female to BNC male adapter has a receptacle on the SMA side and a pin on the BNC side. This is unlike an SMA female to BNC female converter that has a receptacle on both ends and normally requires an additional BNC male jumper. An SMA male-to-BNC male adapter, in contrast, has a pin on either end and is used for totally different interface combinations. Verifying the gender of each mating connector before purchase can prevent costly mismatches, particularly when adding equipment such as oscilloscopes, spectrum analyzers, or signal generators to existing RF links.

Well-known firms like Pasternack, Amphenol, and TE Connectivity provide SMA-to-BNC adapters that give reliable electrical performance. Factory-direct suppliers that can provide OEM and ODM services, however, may bring significant advantages in terms of lead time, support for unique specifications, and unit cost reduction for procurement teams managing big orders. Experienced procurement managers will always undertake a baseline quality check to establish whether a supplier has ISO 9001 certification and can provide VSWR test results.

How to Use SMA Female to BNC Male Adapters Correctly: A Step-by-Step Guide

SMA female side. The first step for a good installation is alignment of the threads. Gently insert the matching SMA male pin and spin the outer thread four to six full revolutions until well seated. Do not excessively twist, as this may damage the thread or bend the inner conductor. For the male BNC side, align the shell points with the notch on the female, give it a quarter turn until you hear the lock click, and ensure the connection is locked. Remove it in reverse order — don't simply rip out a BNC connector; first remove the bayonet lock.

Impedance discipline is critical. The SMA female to BNC male converter is 50W. If it is coupled to a 75Ω device (some older video equipment), the result is excessive signal reflection, which degrades the quality of the transmission and may damage the hardware linked to the device. Before installation, always verify impedance indicators on both mating devices.

Here are the key maintenance practices that extend adapter service life:

• Periodic cleaning: Use a cotton swab moistened with anhydrous alcohol every three to six months to clean the inner conductor, outer conductor contacts, and bayonet structure. Allow alcohol to evaporate fully before reconnecting.
• Dust cap storage: Install dust caps on both connector ends whenever the SMA female-to-BNC male adapter is not in use, preventing contamination of the gold-plated contact surfaces.
• Outdoor waterproofing: Apply waterproof sleeves or heat-shrink tubing over interface gaps when deploying adapters in outdoor or high-humidity environments to prevent corrosion.
• Annual performance verification: Use a network analyzer to check insertion loss and VSWR every 12 months. Replace any adapter with VSWR exceeding 1.3 or insertion loss exceeding 0.3dB immediately.

These practices collectively prevent premature connector degradation and protect the signal chain integrity of your RF infrastructure.

Procurement Strategies for Bulk Purchase and Supplier Selection

When you purchase SMA to BNC RF adapters for your company, it’s not simply about purchasing the lowest price you can. For example, Alibaba and Amazon provide extensive access to vendors, but for large-volume or specification-sensitive orders, procuring from manufacturers straight from the plant is far more efficient. • ISO 9001 certified; • Production capacity as reported and validated by the evaluator; • OEM & ODM service flexibility; • Traceable quality paperwork available (VSWR test results, material certifications).

RF coaxial adapters are often priced on a volume basis that changes dramatically with order quantities >500. Negotiate lead time, packaging specifications, and custom labeling requirements along with pricing, since all of these affect the total cost of purchasing. For certain deployments in outdoor wireless systems, industrial sensor networks, or military equipment integration, it helps to have suppliers that can supply special versions, such as adapters with integrated cable pigtails or improved waterproof housings.

Chuangyu has a production unit in the Xi'an Chang'an Innovation Technology Industrial Park with 800 square meters of manufacturing area and an annual capacity of 500,000 RF components. This infrastructure allows for quick fulfillment of standard and custom SMA female to BNC male adapter combinations.

Technical Considerations and Future-Proofing Your Adapter Selection

Impedance continuity, mechanical coaxiality, and dielectric stability are three interacting parameters that are a function of signal integrity at the adapter interface. Good-quality SMA to BNC adapters use a PTFE insulating medium that has a constant dielectric constant across a wide range of temperatures and frequencies and does not show the performance drift that may occur over time with lesser-grade polymer insulators. The precision-produced adapters feature a built-in coaxiality tolerance of < 0.02 mm that limits reflection coefficients at the junction of connections. This is especially significant in calibrated test chains because compounded reflection errors degrade measurement accuracy.

As RF communication systems migrate to higher frequency bands and more dense deployment designs, adopting adapters from suppliers with millimeter wave development capabilities will provide you with access to compatible product families as your system expands. Chuangyu offers 110 GHz millimeter-wave connectors and cable assemblies, allowing procurement teams to have a single-source relationship that develops with RF needs.

Conclusion

This SMA female to BNC male adapter is a deceptively simple component that may have serious repercussions on system performance if the incorrect one is chosen or provided. Each portion of the structure has a defined electrical or mechanical function, from the beryllium copper inner contact and PTFE dielectric to the bayonet locking mechanism and the continuity of 50Ω impedance. Choosing the right adapter specifications for your application — laboratory equipment, wireless communication infrastructure, industrial sensor integration, etc. — protects your signal integrity and your purchase expense. The best method to ensure long-term, reliable RF connection performance is to choose an established manufacturer that is factory-direct with OEM capabilities and documented quality processes.

FAQ

1.  What coaxial cable types are compatible with this adapter?

The SMA female-to-BNC male adapter is compatible with standard 50Ω coaxial cables such as RG-58, RG-142, and LMR-195. It is not compatible with 75Ω cables like RG-59 or RG-6 due to impedance mismatch. Always confirm cable impedance before integration.

2. What is the difference between solder and crimp attachment types?

Solder-type connectors offer more stable contact resistance in low-vibration environments. Crimp-type connectors provide faster field assembly and consistent mechanical termination for production lines. The SMA female-to-BNC male adapter itself is a straight adapter without cable termination, so this distinction applies to the cable assemblies connected at each port.

3. How do I verify the correct gender for my application?

An SMA female connector has a central receptacle (socket) and internal threads. A BNC male connector has a central pin and a bayonet shell with locking points. Visually inspect both mating ports on your devices before specifying the adapter to avoid ordering an incompatible variant.

4. Can this adapter handle outdoor deployment?

The base adapter operates across -65℃ to 165℃ and resists corrosion under normal conditions. For outdoor deployment, supplement with waterproof sleeves or heat-shrink tubing to seal interface gaps against moisture ingress.

5. Is this adapter suitable for ham radio antenna connections?

Yes. Ham radio operators commonly use this RF coaxial adapter to connect SMA female antenna ports on handheld transceivers to BNC interface accessories. The 50Ω impedance and DC-to-6GHz frequency range cover all standard amateur radio bands.

Partner with Chuangyu for Factory-Direct RF Adapter Solutions

Chuangyu delivers precision-engineered SMA female-to-BNC male adapter solutions directly from our Xi'an manufacturing facility, with annual output exceeding 500,000 RF components. As a trusted SMA female to BNC male adapter manufacturer, we support OEM customization, volume pricing, and rigorous quality documentation for procurement teams across communications, test and measurement, medical, and defense sectors. Reach our engineering team at chuangyuwz01@cymicrowave.com to request a quote or discuss custom specifications today.
