When you buy RF termination parts from Chinese suppliers, engineers usually have to decide which connection type to use. So it is important to know what a BNC RF coaxial load is before you place an order. A BNC RF coaxial load is a crucial part of test settings and communication systems, absorbing RF power and preventing signal reflection, making it a standard in labs, manufacturing lines, and field deployments. SMA loads are used for comparable uses in smaller, higher-frequency applications. The BNC RF coaxial load remains a popular option for many mid-frequency testing and communication applications because of its rugged connection design and simplicity of use. This article examines the design, performance features, and applications of the BNC RF coaxial load to assist customers in assessing sourcing choices from Chinese manufacturers with confidence.

Reliability starts with build quality, and a BNC RF coaxial load relies on carefully chosen materials and precision manufacturing to ensure consistent performance during repeated usage. Buyers procuring from Chinese vendors should know these basic building features before evaluating alternatives.

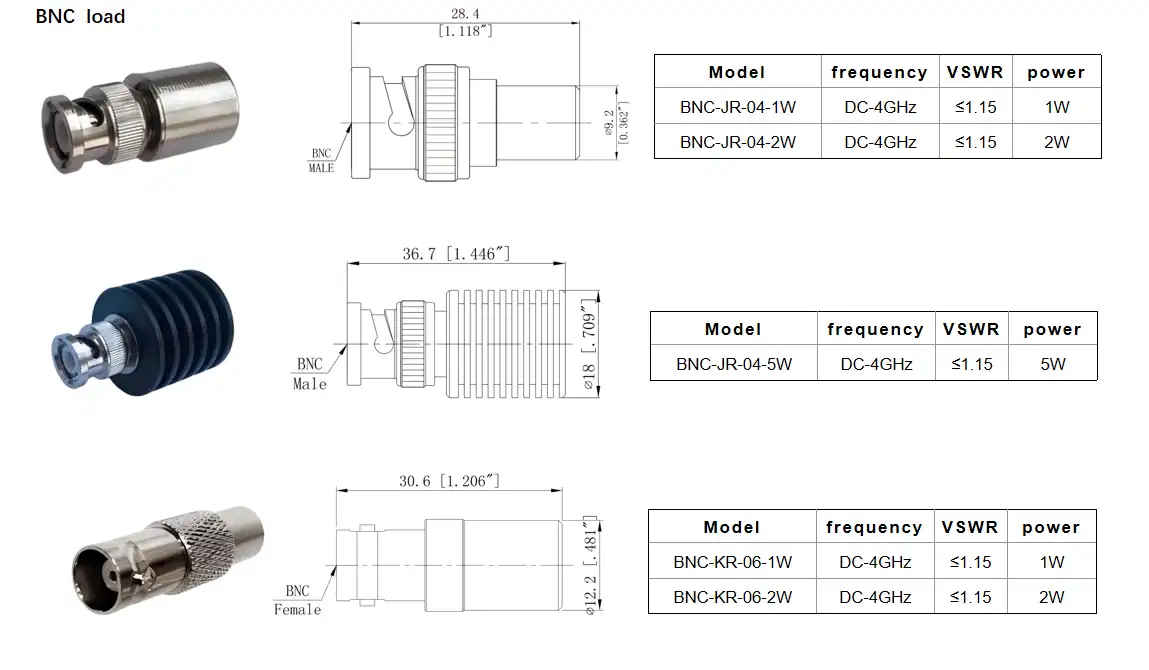

The quality BNC RF coaxial load is made of high-power 50Ω impedance resistive elements, which are based on a tantalum nitride resistive layer and a high thermal conductivity substrate. It mates with BNC male connectors with a brass nickel-plated shell and a phosphor bronze gold-plated inner conductor. It has a black anodized aluminum body and PTFE insulating medium. Some high-end BNC RF coaxial load models even include tri-alloy plated contacts, which may adapt to unusual magnetic field situations. Buyers should acquire precise material specifications from Chinese manufacturers to verify that these components are suitable for the quality requirements needed for their particular application.
The housing of the BNC RF coaxial load has an important impact on the long-term service life. The housing is generally made of aluminum alloy material, which is small in size, often around 45×30mm, and weighs about 60g. The BNC RF coaxial load is rated for a minimum of 500 mating and demating cycles and is well suited for applications where frequent connection changes are required. Some items are also designed with convection cooling, so they may be installed and used at almost any angle. When comparing manufacturers, buyers should take a thorough look at the tolerances of the housing and the quality of the finishing. If the anodizing or machining is uneven, this may impact the durability and electrical performance over time.
The quality of connectors has a direct impact on the reliability of a BNC RF coaxial load for its whole operating lifetime. The gold-plated phosphor bronze inner conductor and nickel-plated brass shell work together to decrease contact resistance and provide a solid connection with frequent usage. When buying from Chinese suppliers, ask for insertion cycle testing data and plating thickness specifications. These differ from manufacturer to manufacturer and directly affect the life of a BNC RF coaxial load in demanding test and production environments before it needs to be replaced.
Buyers need to understand the electrical performance envelope of a BNC RF coaxial load to determine whether it is suitable for their application or if they should consider other connection types such as SMA for higher frequency requirements.
Standard BNC RF coaxial load models are available from DC to 3GHz, while high-end versions are available up to DC to 4GHz. This makes the BNC RF coaxial load ideal for mid-frequency communication systems and general-purpose test environments; however, buyers working with frequencies above 4GHz may want to look at SMA-based alternatives, which generally support higher frequency ranges due to their smaller connector geometry. When evaluating source choices, purchasers should compare their application’s frequency needs directly to the indicated range of the BNC RF coaxial load under consideration.
The Voltage Standing Wave Ratio is a significant difference among BNC RF coaxial load alternatives, with basic models offering a VSWR of 1.3 or less and high-precision versions down to 1.2. The lower the VSWR is, the less reflected signal there is. When the BNC RF coaxial load is used as a terminal load for vector network analyzers or signal generators, it is important to verify it accurately. When comparing many Chinese vendors, buyers should ask for VSWR test results throughout the complete rated frequency range; performance might vary considerably across manufacturers when nominal specs seem identical on paper.
Power capacity is also a major concern. A typical BNC RF coaxial load can handle 5W under natural cooling conditions at 25℃. Instantaneous peak power must not exceed 500W. This power range makes the BNC RF coaxial load suitable for ordinary laboratory and communications testing; however, greater continuous power requirements may need bigger connection types. Buyers should check that the power requirements of their application are compatible with the rated specifications of the BNC RF coaxial load, since running beyond these limitations may affect both the precision of performance and the life of the components.

Beyond technical specifications, understanding real-world applications and environmental adaptability helps buyers determine whether a BNC RF coaxial load fits their sourcing needs, particularly when purchasing from Chinese manufacturers for specialized industries.

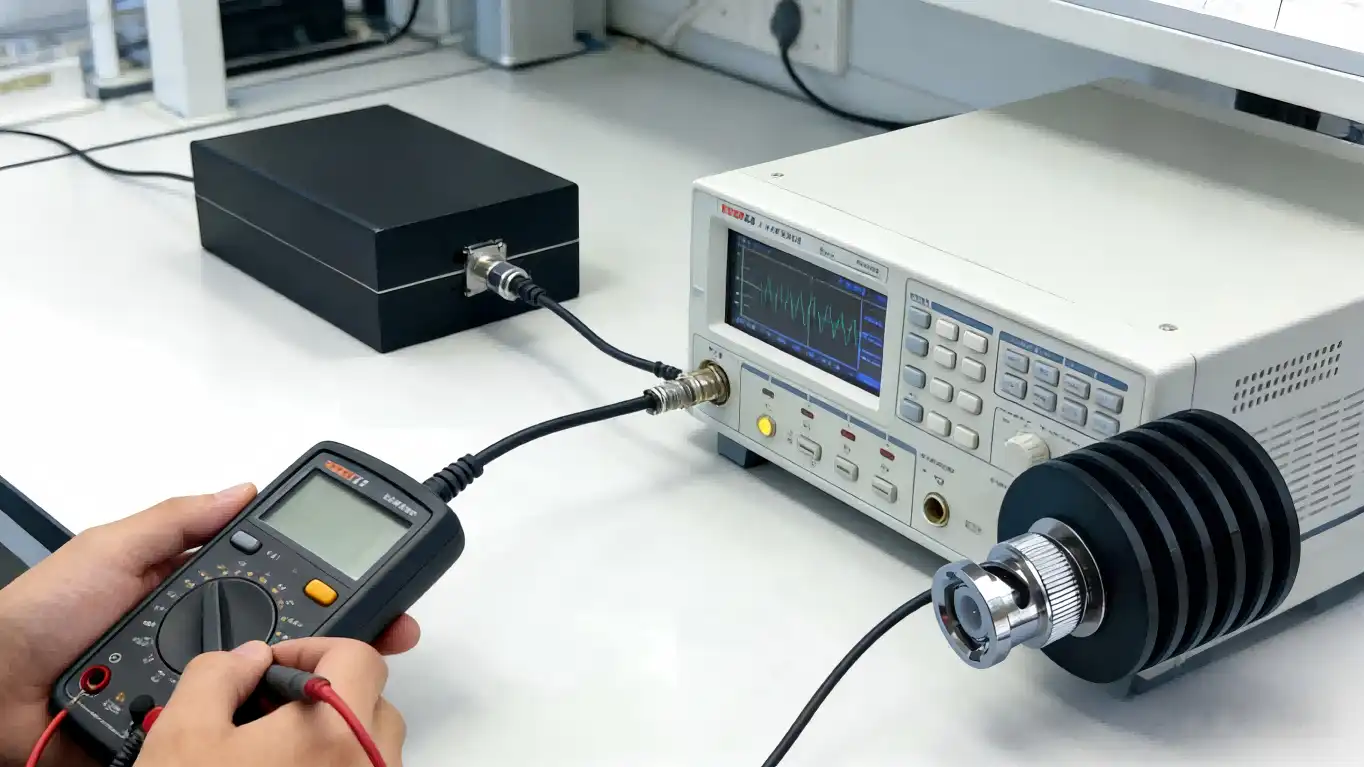

In test and measurement environments, a BNC RF coaxial load functions as a terminal load for instruments such as vector network analyzers and signal generators, and is commonly used to terminate idle ports on multi-port microwave devices like directional couplers and isolators. This ensures the accuracy of test data across laboratory and production line settings. Buyers sourcing components for testing applications should confirm that the BNC RF coaxial load they select has been validated against relevant industry calibration standards, since measurement accuracy depends heavily on consistent load performance across the rated frequency band.
A BNC RF coaxial load is widely compatible with 3G, 4G, and 5G LTE networks, broadcast television transmission systems, mobile base stations, and distributed antenna systems, providing impedance matching and dummy load functions that prevent signal reflection damage to connected equipment. This broad compatibility makes it a practical choice for telecommunications buyers sourcing components for infrastructure projects. When evaluating Chinese manufacturers, buyers should confirm that the BNC RF coaxial load has been tested against the specific network standards relevant to their deployment region and equipment configuration.
For specialized fields such as aerospace, radar systems, medical equipment, and military defense, a BNC RF coaxial load must demonstrate strong environmental adaptability, with operating temperature ranges extending from -55℃ to +125℃ in standard models. Non-magnetic material versions are particularly important for medical equipment like MRI systems, where standard magnetic materials could interfere with sensitive imaging equipment. Buyers sourcing for these specialized applications should verify material certifications and environmental test data directly with manufacturers, ensuring the BNC RF coaxial load meets the specific regulatory and performance requirements of their industry before finalizing any purchase.

Choosing between a BNC RF coaxial load and alternative connector types depends on frequency requirements, power handling needs, and application environment, with BNC remaining a strong choice for mid-frequency testing and communication systems. Shaanxi Chuangyu Electronic Technology Co., Ltd. brings nearly two decades of RF manufacturing expertise to this space, operating an integrated Xi'an production base with dedicated load attenuator production lines. Serving clients across telecommunications, defense, and medical sectors, the company delivers reliable, precision-engineered components. To discuss your BNC RF coaxial load sourcing needs, contact postmaster@cymicrowave.com.
Conventional models cover DC to 3GHz, while high-end versions extend up to DC to 4GHz.
Standard units handle 5W under natural cooling at 25℃, with instantaneous peak power not exceeding 500W.
Yes, non-magnetic material versions are specifically designed for use near sensitive medical imaging equipment.
A lower VSWR, typically 1.3 or below, reduces signal reflection and improves measurement accuracy during testing.
Applications requiring frequencies above the BNC load's rated range or extremely compact connector geometry may be better suited to SMA-based alternatives.
